Home >> Hyundai >> 2005 >> Sonata GL, 2.4 S, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle System >> Shift Lever >> Components

Shift Lever: Components

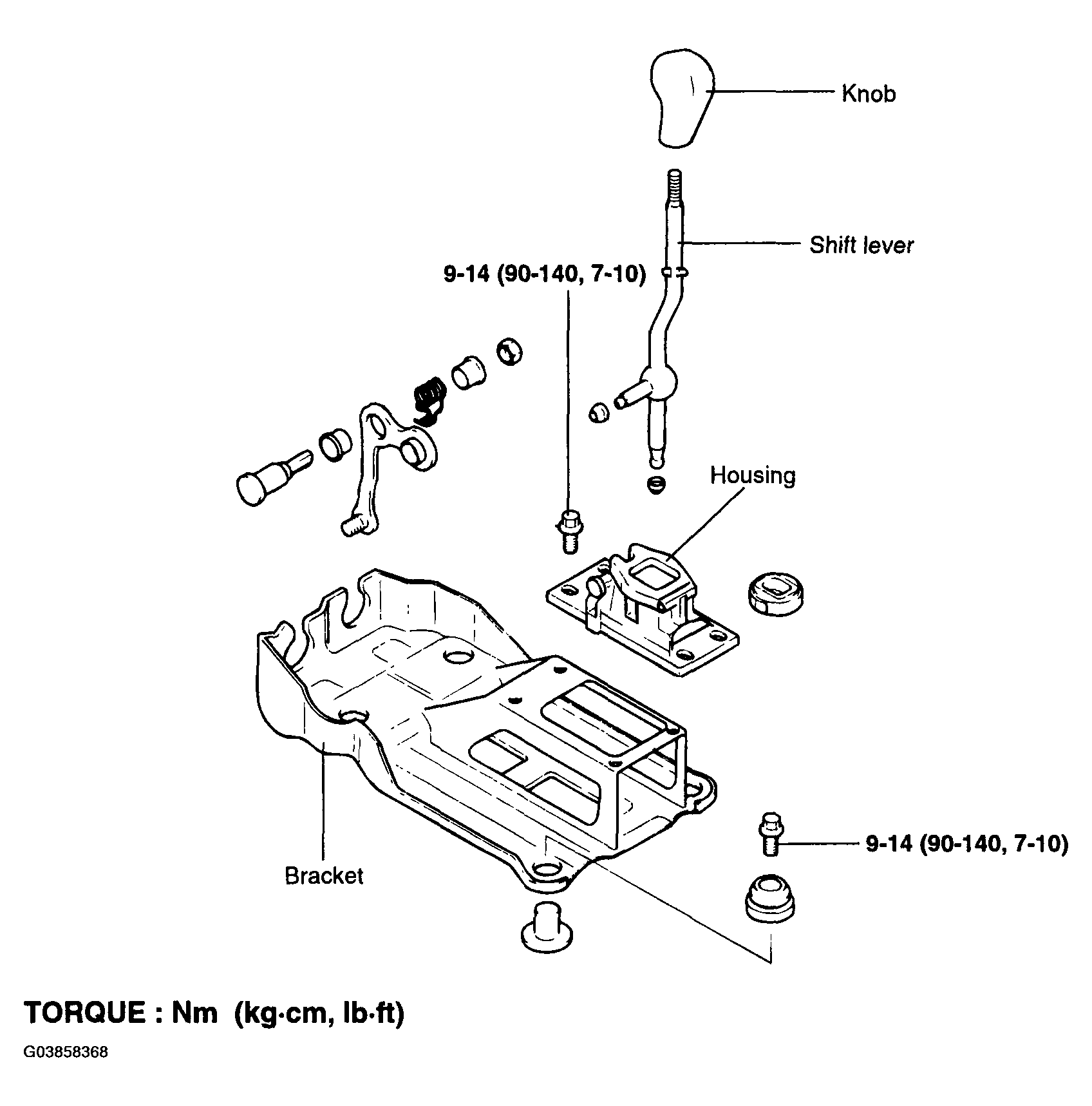

Fig 1: Shift Lever Replacement Components With Torque Specs

G03858368

Courtesy of HYUNDAI MOTOR CO.
