Manual Transaxle Shift Control: Components

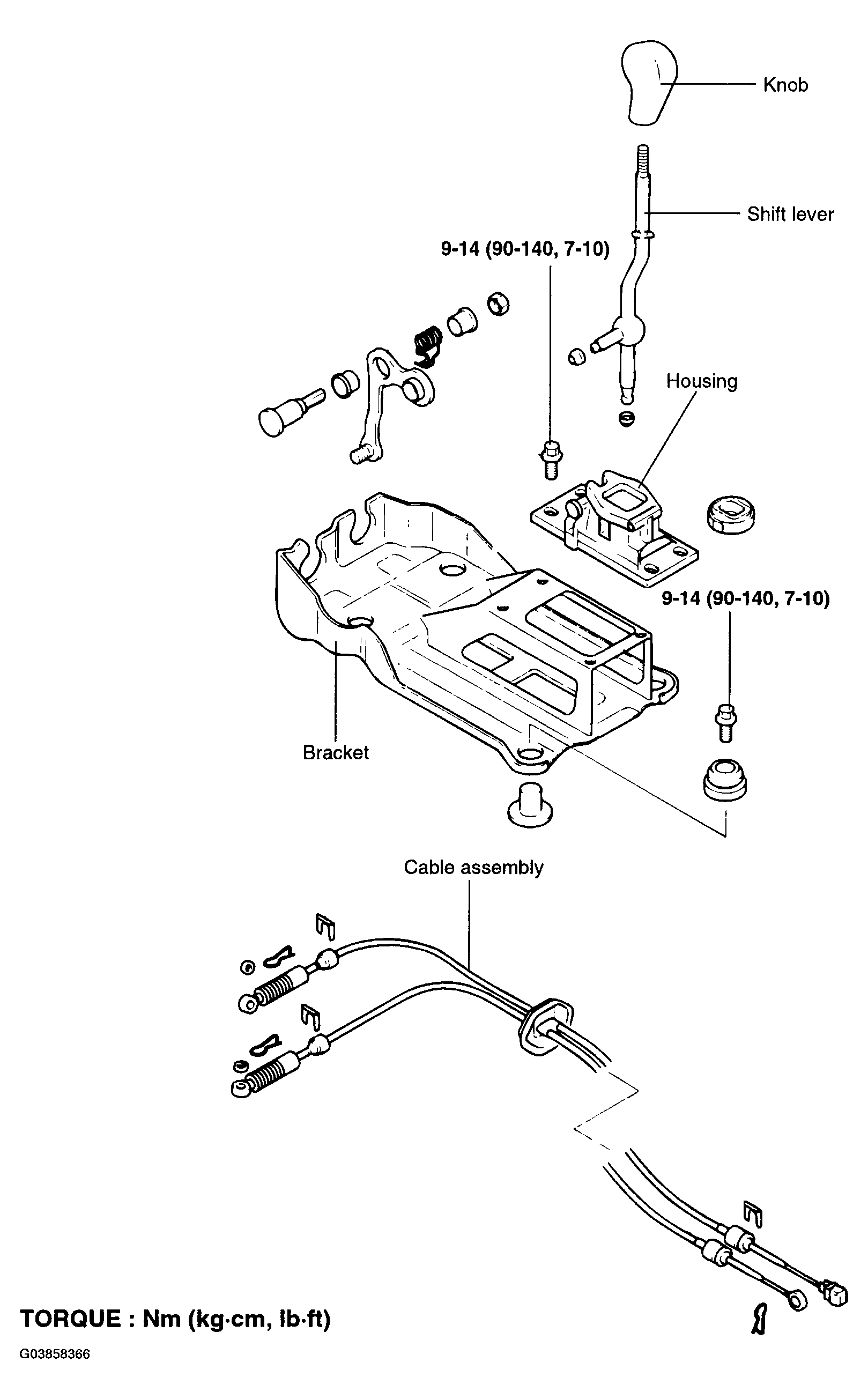

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specs

G03858366

Courtesy of HYUNDAI MOTOR CO.
