Removal And Installation

The removal and installation procedure is the same as that of conventional power steering system except for the solenoid valve components and EPS control module. Refer to the following figure.

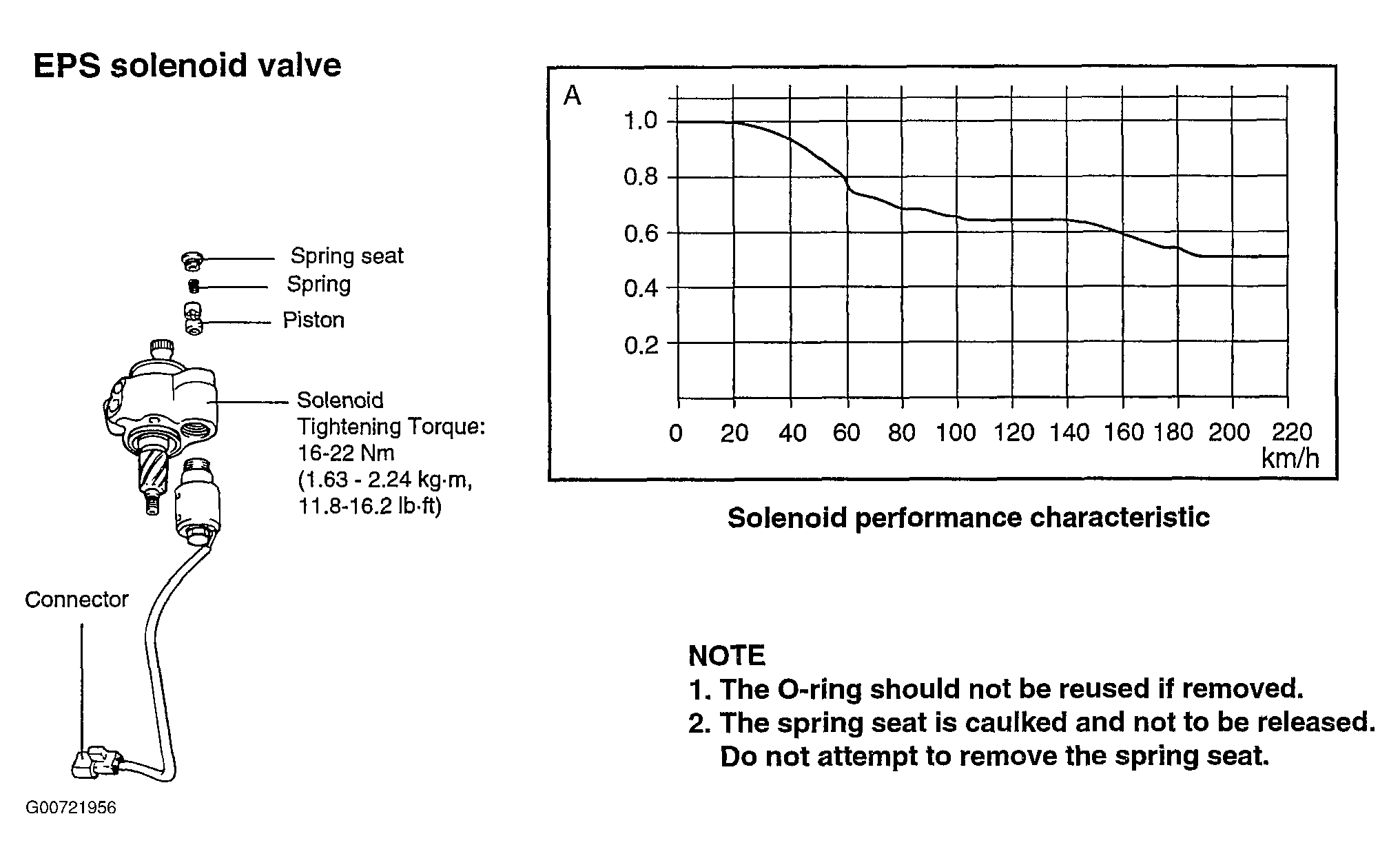

Fig 1: Removing Solenoid Valve & Solenoid Valve Performance Chart
G00721956Courtesy of HYUNDAI MOTOR CO.
