Power Seat Motor: Components

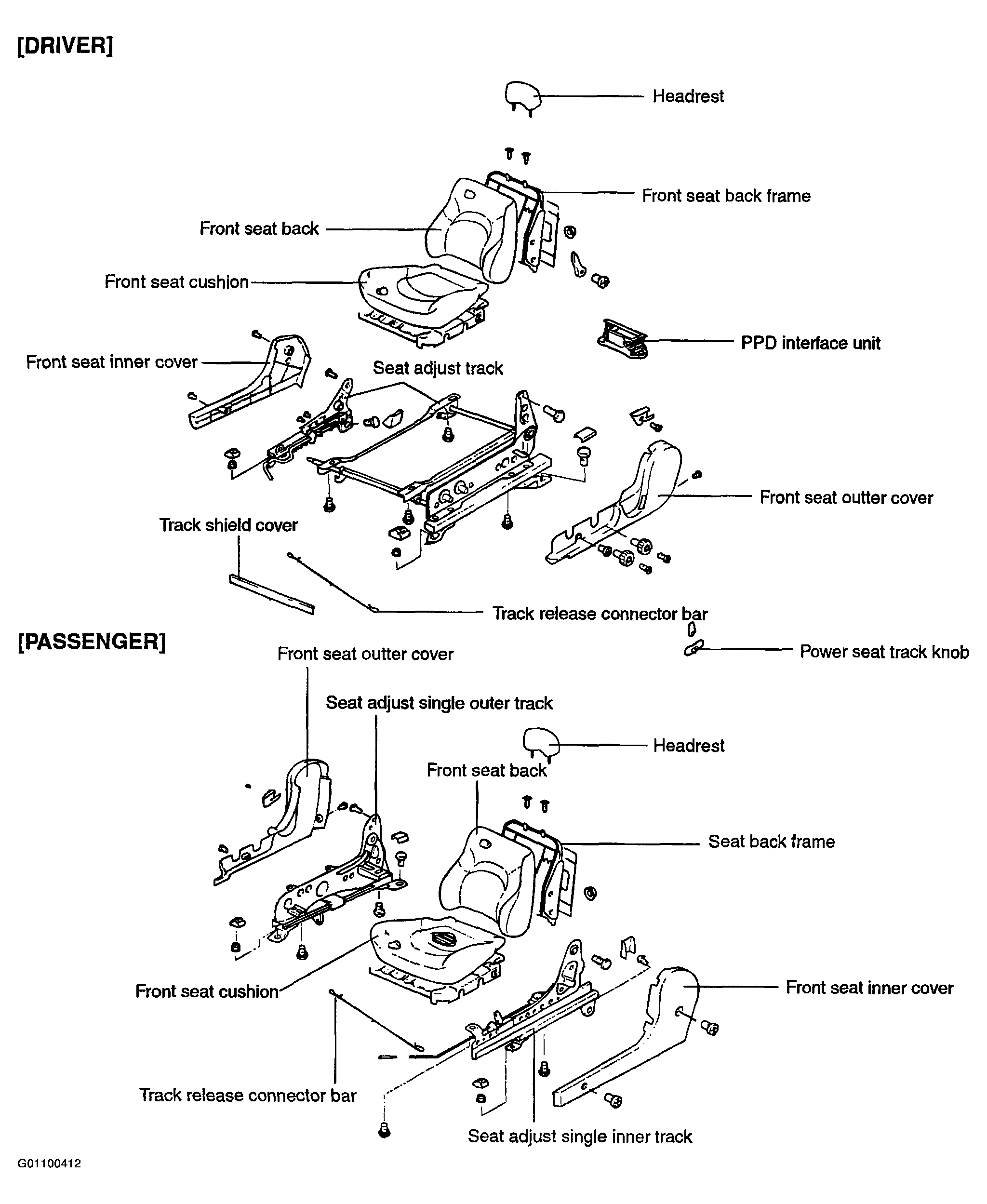

Fig 1: Identifying Seat Components

G01100412

Courtesy of HYUNDAI MOTOR CO.
