Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
    Fig 1: Inspecting Power Window Main Switch (1 Of 2)
    G01992686Courtesy of HYUNDAI MOTOR CO.

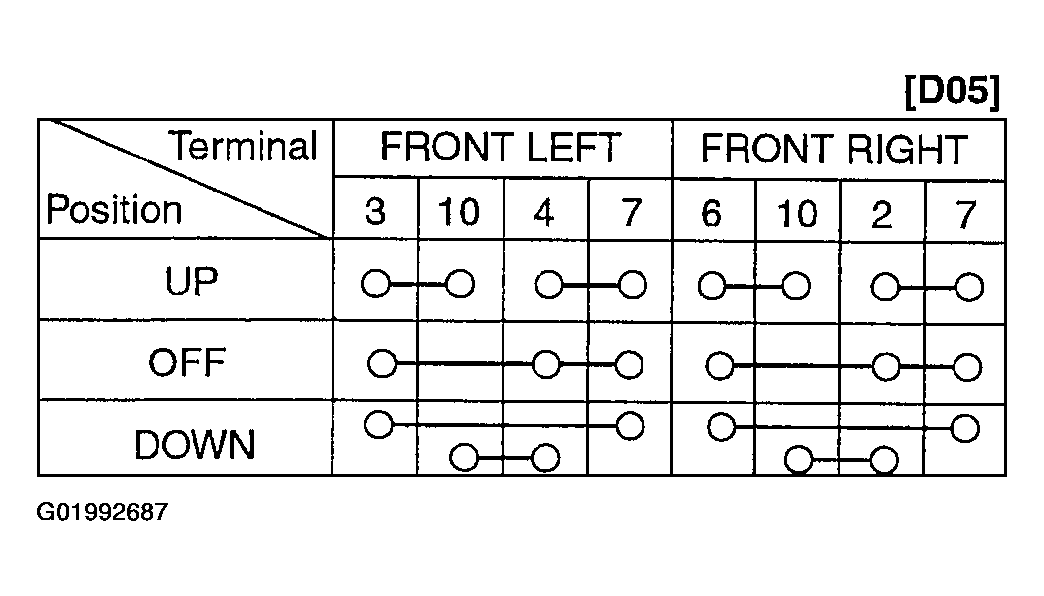

    Fig 2: Inspecting Power Window Main Switch (2 Of 2)
    G01992687Courtesy of HYUNDAI MOTOR CO.
