General Information - Steering System
>>
General
>>
Special Tools
Special Tools

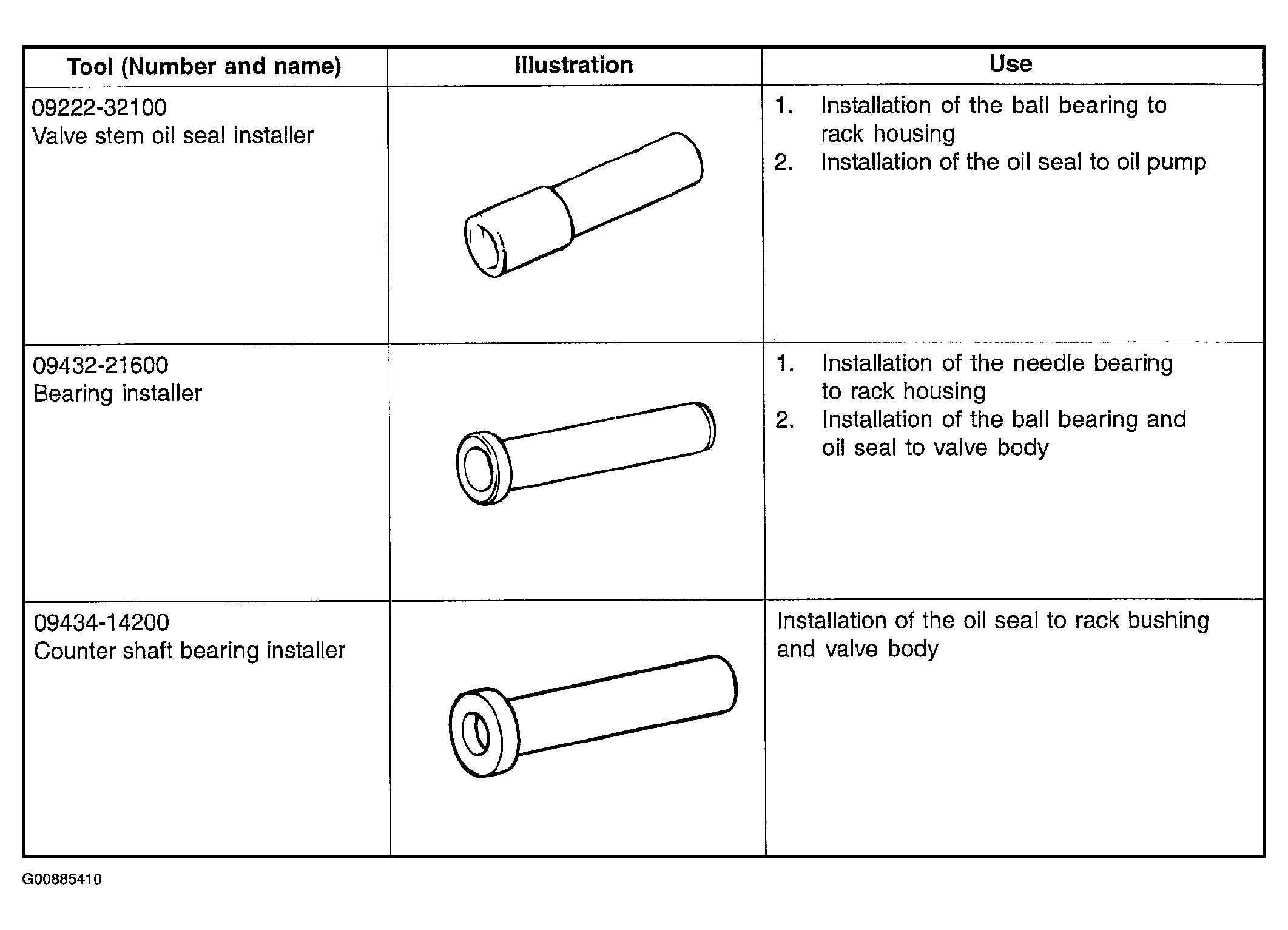

Fig 1: Special Tools (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Special Tools (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Special Tools (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
