Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inner wheel : 34°76' +/- 2°

    Outer wheel : 30°19'

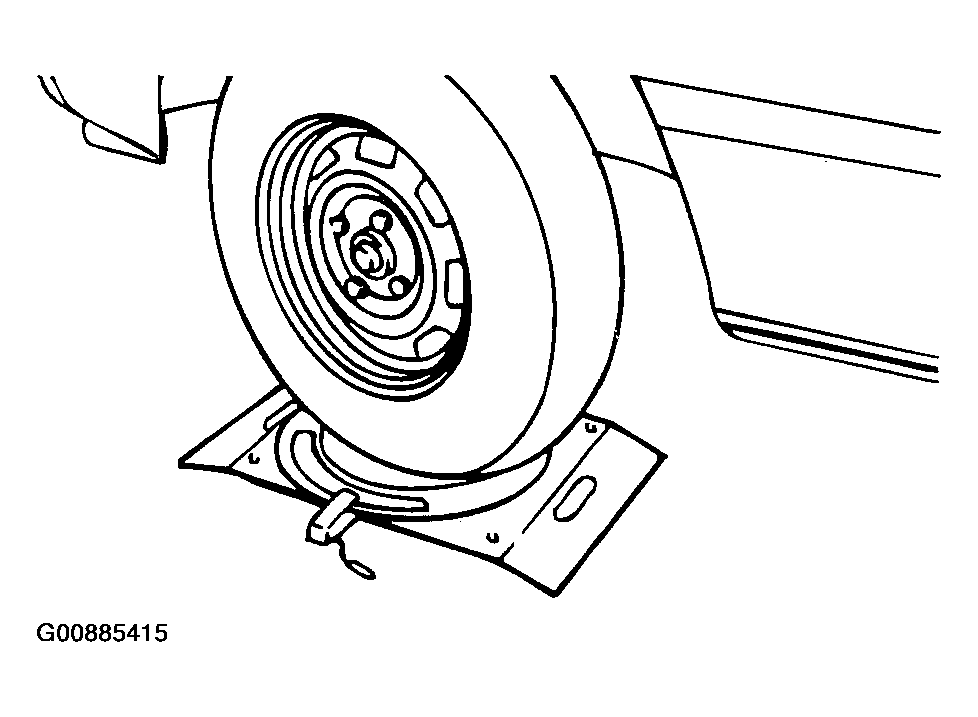

    Fig 1: Checking Steering Angle
    G00885415Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value, adjust the toe and inspect again.
