Fr O2 Sensor & RR O2 Sensor

FR O2 and RR O2 sensor may increase immediately after depressing the accelerator pedal and may decrease after releasing the pedal.

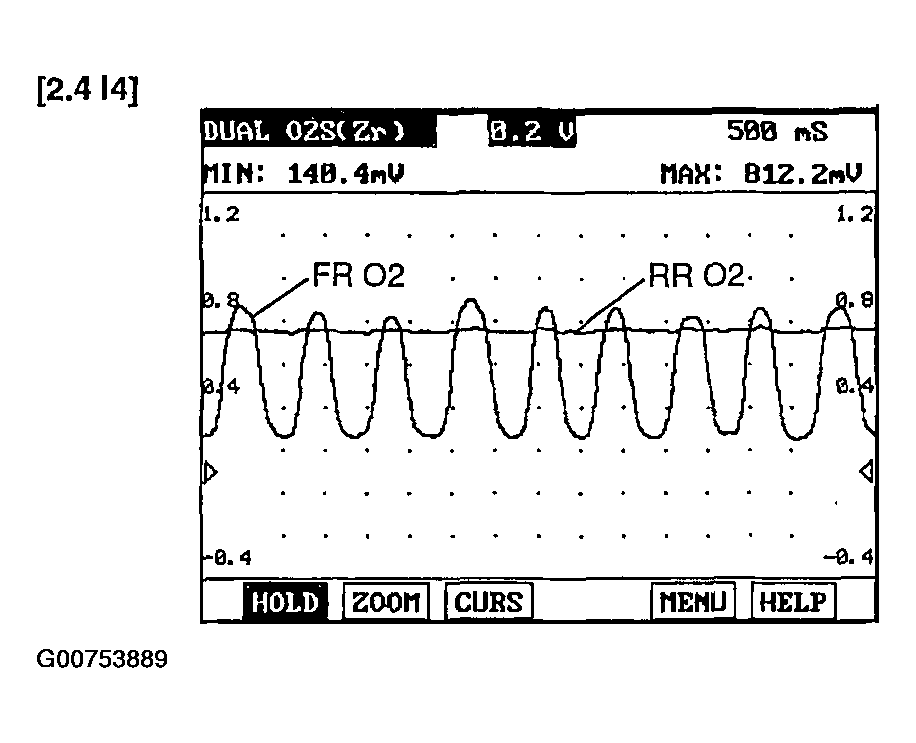

Fig 1: FR O2 Sensor & RR O2 Sensor Wave Forms 2.4L
G00753889Courtesy of HYUNDAI MOTOR CO.
