DRL Control Module Harness Side Connector End View & Location

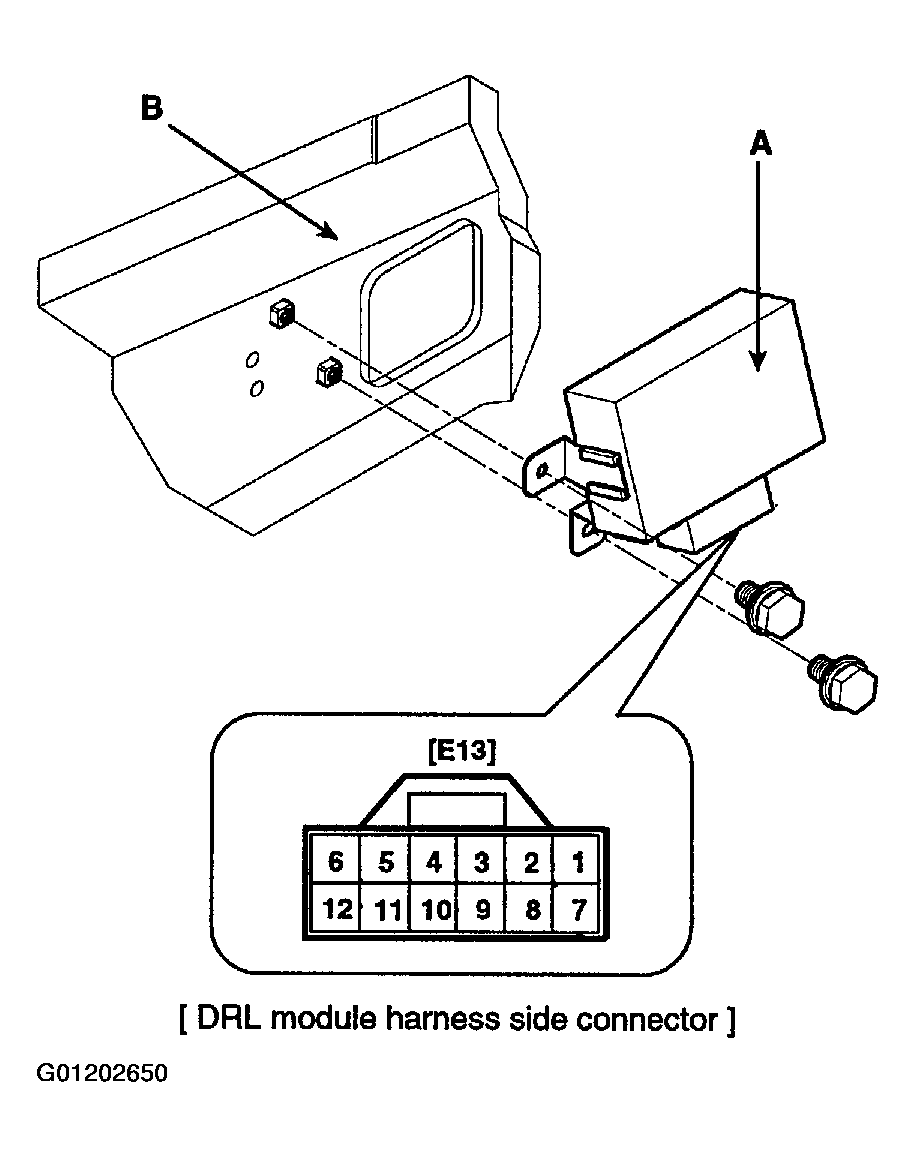

Fig 1: DRL Control Module Harness Side Connector End View & Location

G01202650

Courtesy of HYUNDAI MOTOR AMERICA
