Road Test

WARNING: This page is about a different variant/trim than selected.

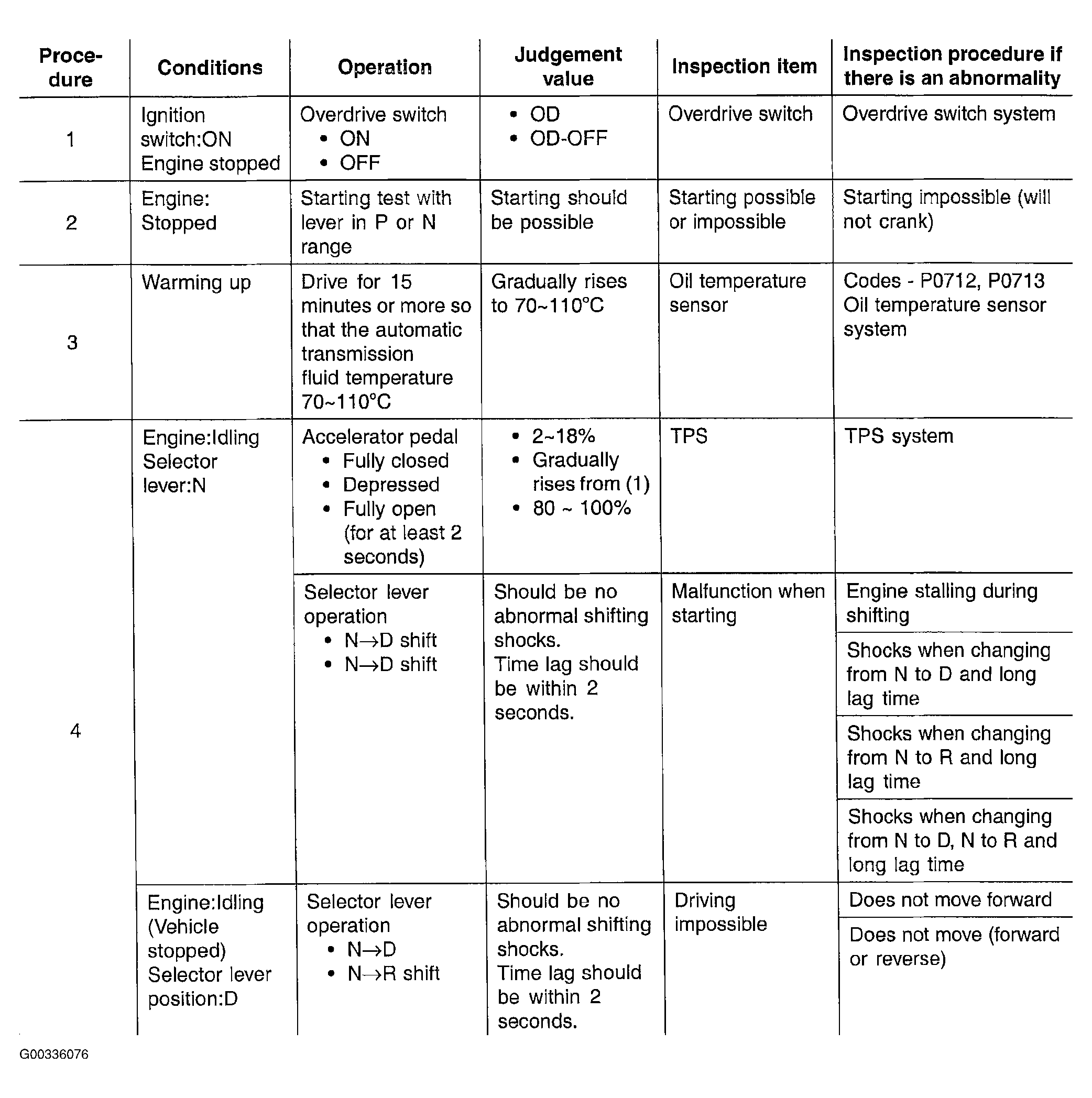

Fig 1: Troubleshooting Transmission (1 Of 3)
G00336076Courtesy of HYUNDAI MOTOR CO.

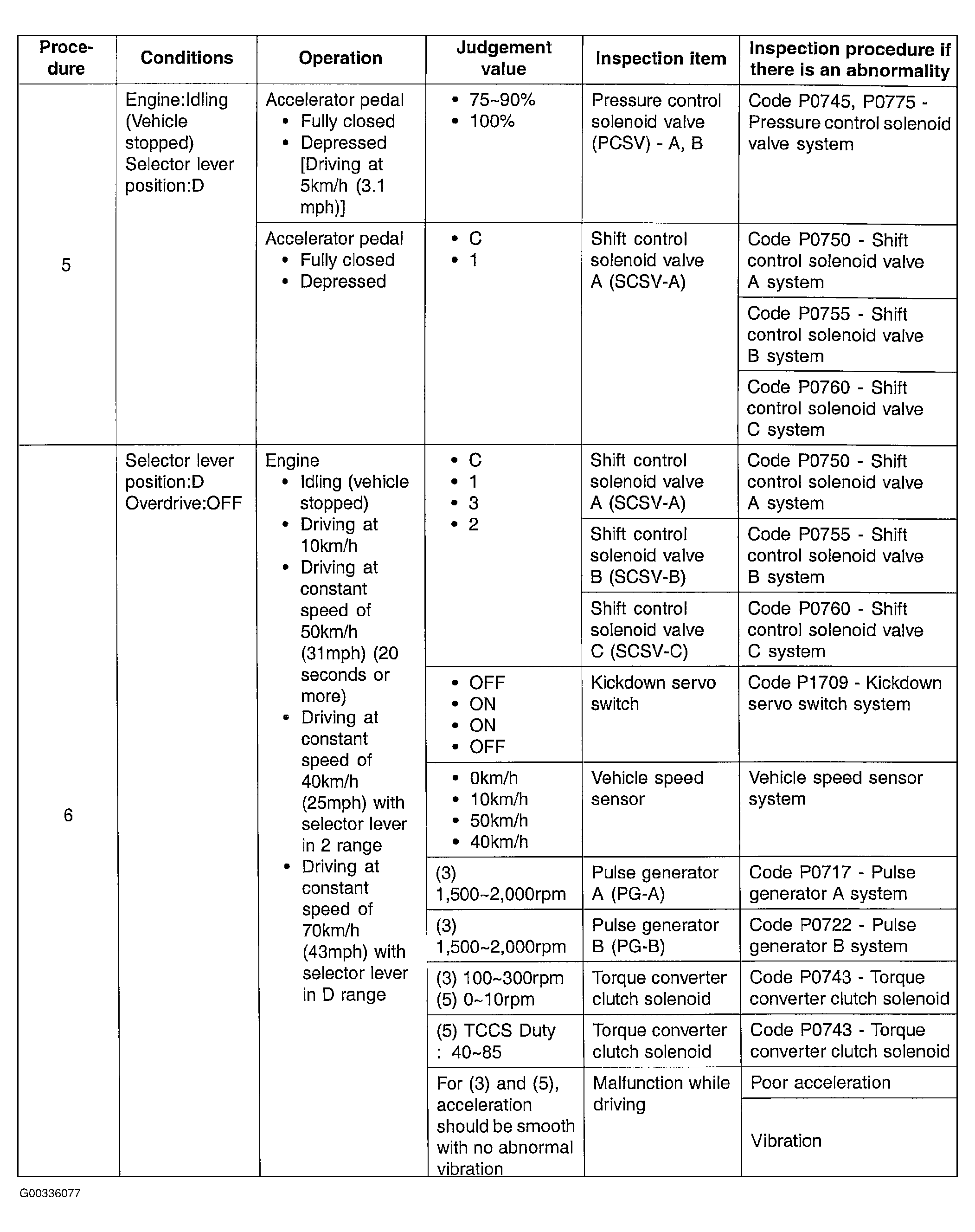

Fig 2: Troubleshooting Transmission (2 Of 3)
G00336077Courtesy of HYUNDAI MOTOR CO.

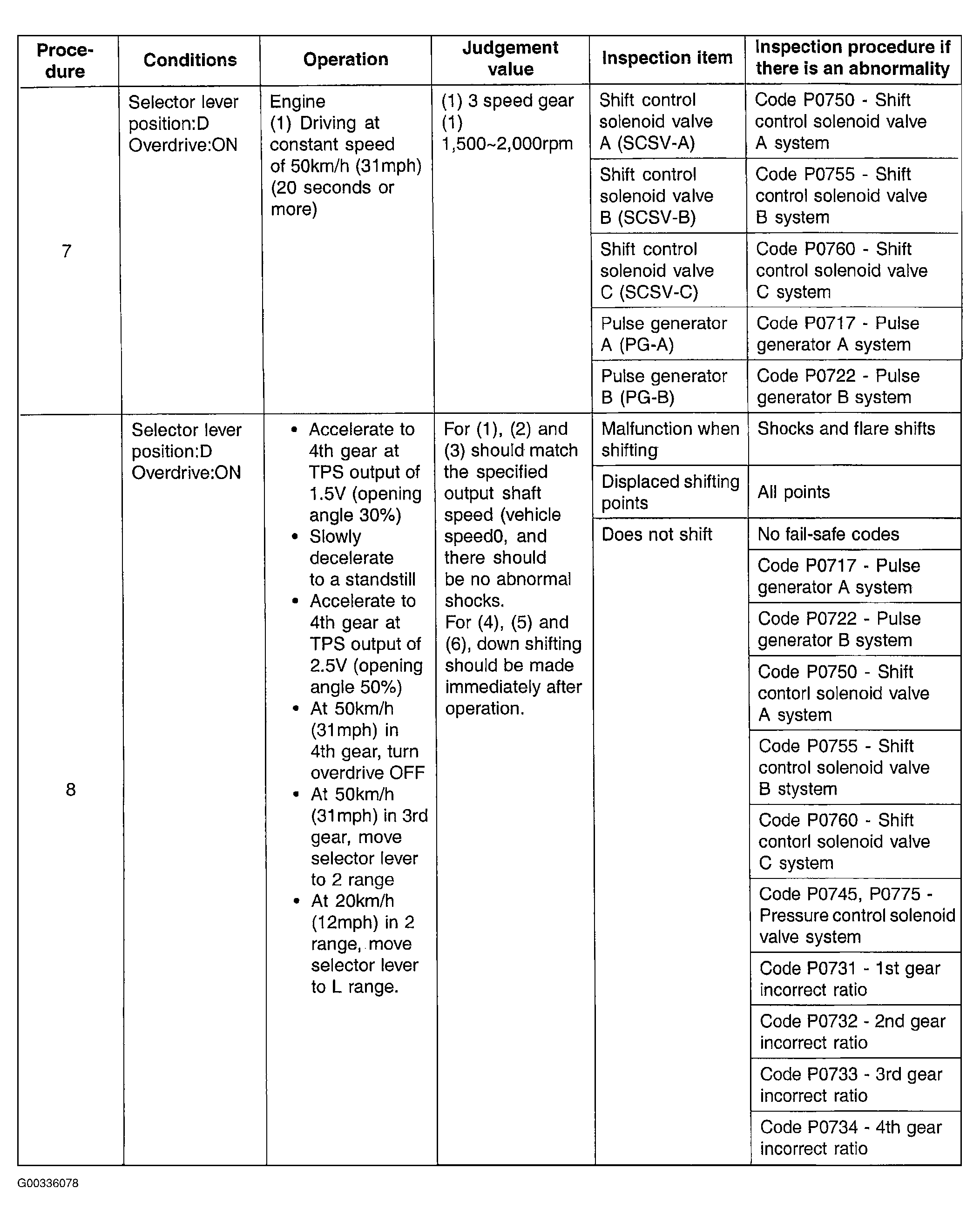

Fig 3: Troubleshooting Transmission (3 Of 3)
G00336078Courtesy of HYUNDAI MOTOR CO.
