Section 1 (Automatic Transaxle System)
>>
Specifications (A/T)
>>
Tightening Torque
Tightening Torque
WARNING:
This page is about a different variant/trim than selected.

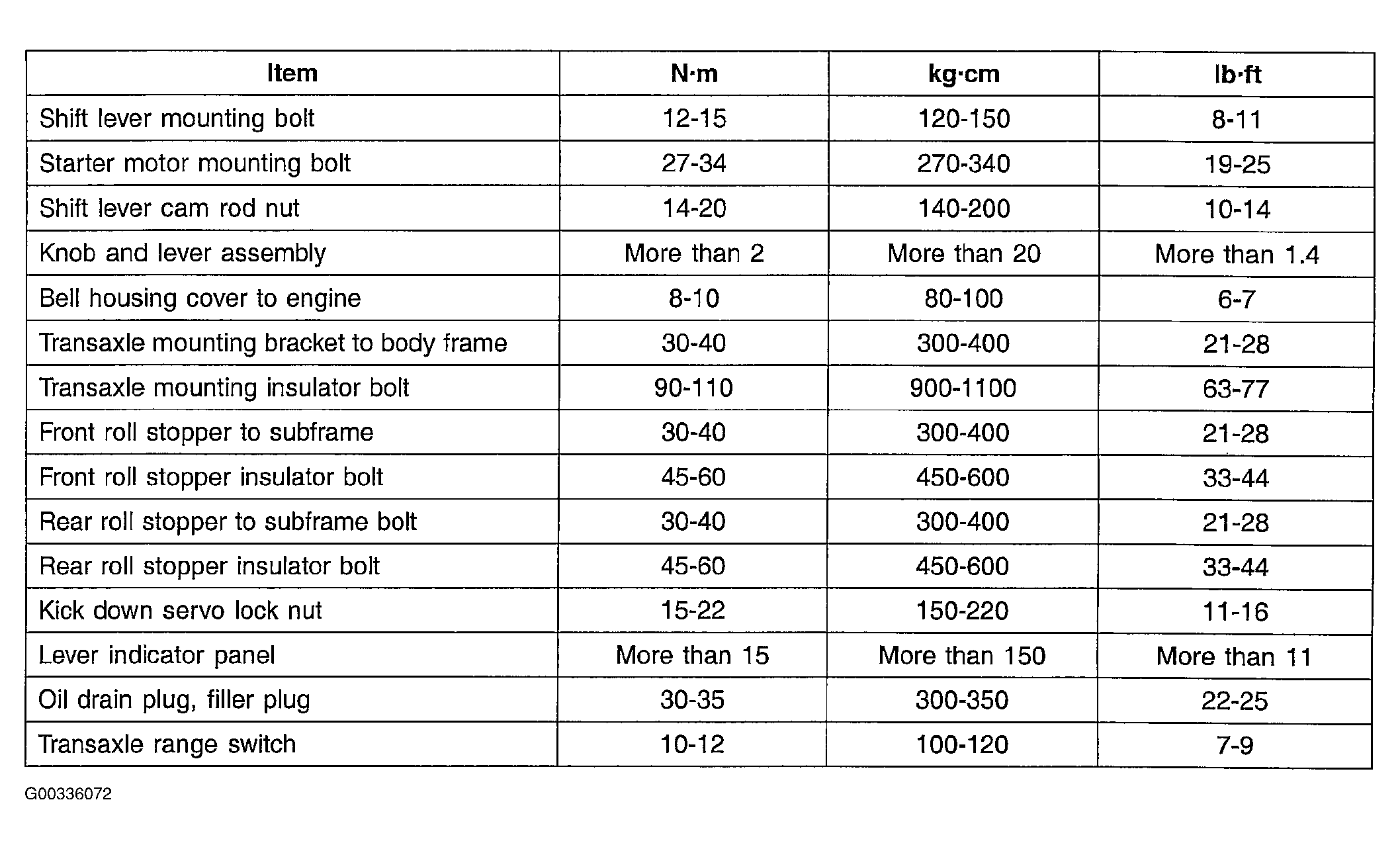

Fig 1: Transmission Torque Specifications Table
Courtesy of HYUNDAI MOTOR CO.
