Connecting Rod Cap
WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

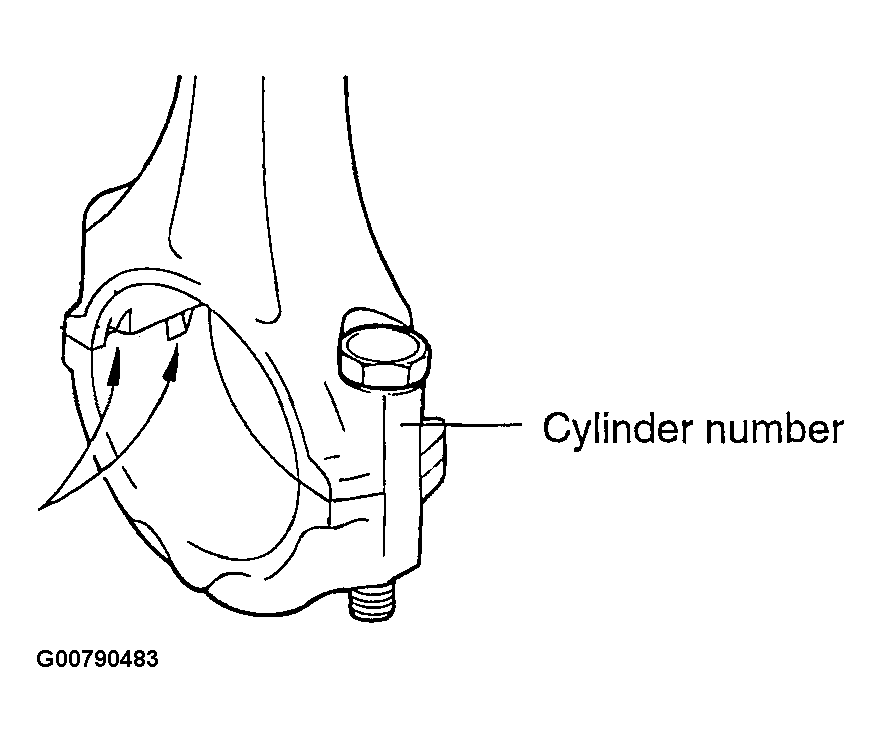

Keep the bearings in order with their corresponding connecting rods (according to cylinder numbers) for proper reassembly.
- Remove the connecting rod cap bolts, then remove the caps and the big end lower bearing mark for reassembly.
- Push each piston connecting rod assembly toward the top of the cylinder.
