Manual Transaxle Case: Disassembly

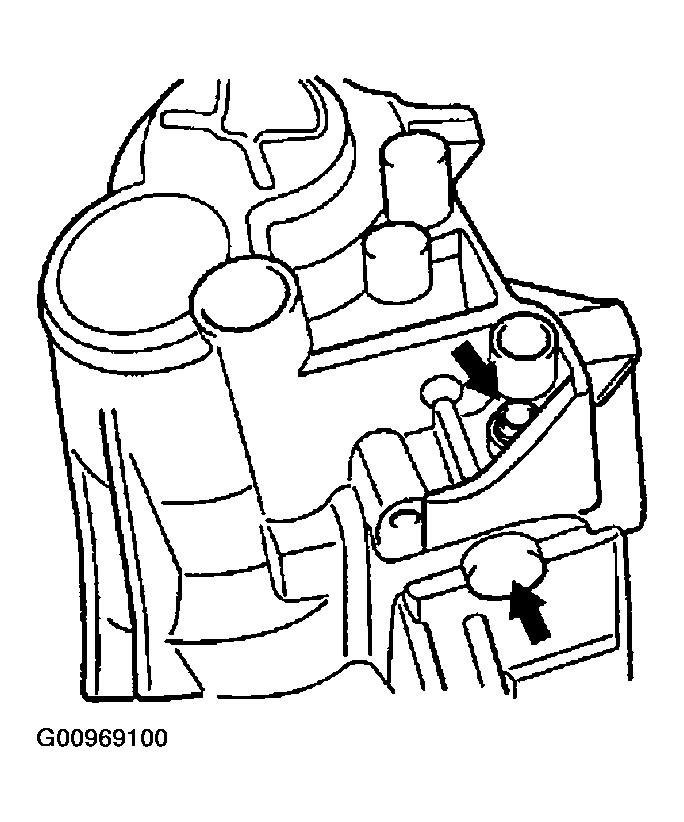

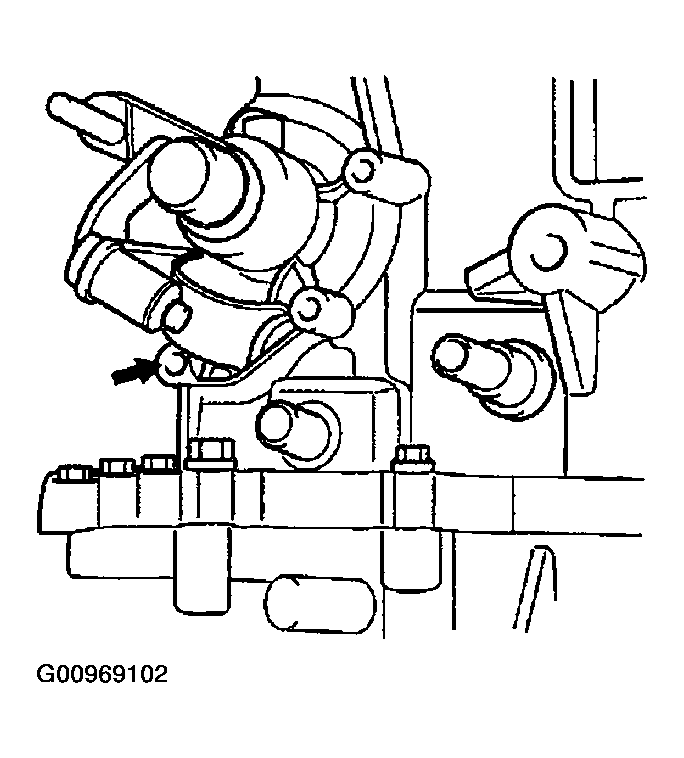

Remove the stopper bolt and the shift check.

Fig 1: Removing Stopper Bolt & Shift Check
Courtesy of HYUNDAI MOTOR CO.

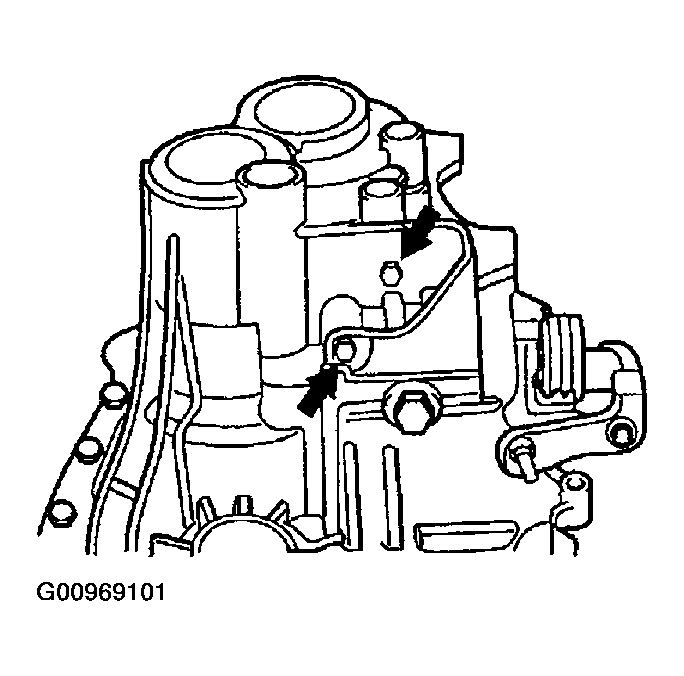

Loosen 2 bolts, and remove the spring and the ball and the pin with a magnet tool.

Fig 2: Identifying 2 Bolts
Courtesy of HYUNDAI MOTOR CO.
Take off 4 bolts with shifting any position to loosen bolts.

Fig 3: Removing Shift Control Mechanism Bolts
Courtesy of HYUNDAI MOTOR CO.

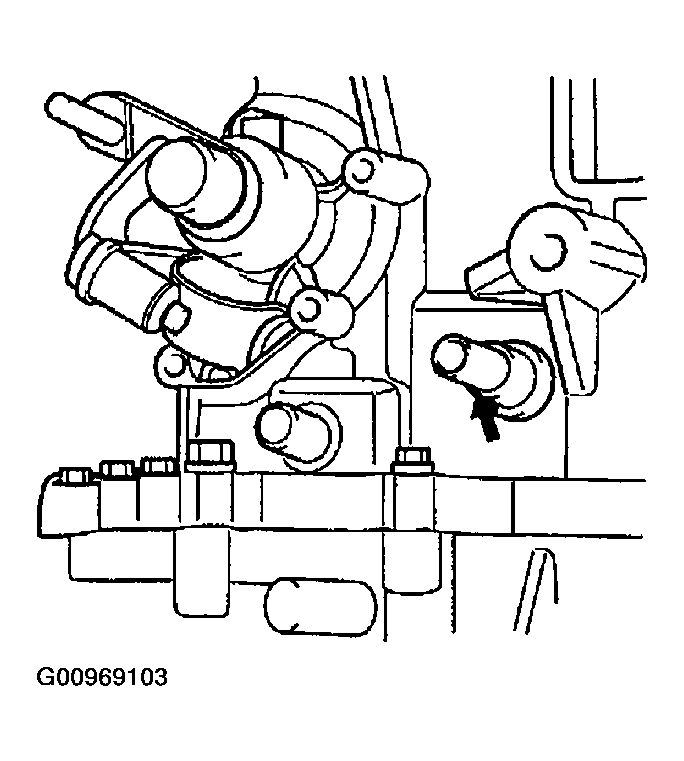

Take off the reverse switch.

Fig 4: Identifying Reverse Switch
Courtesy of HYUNDAI MOTOR CO.

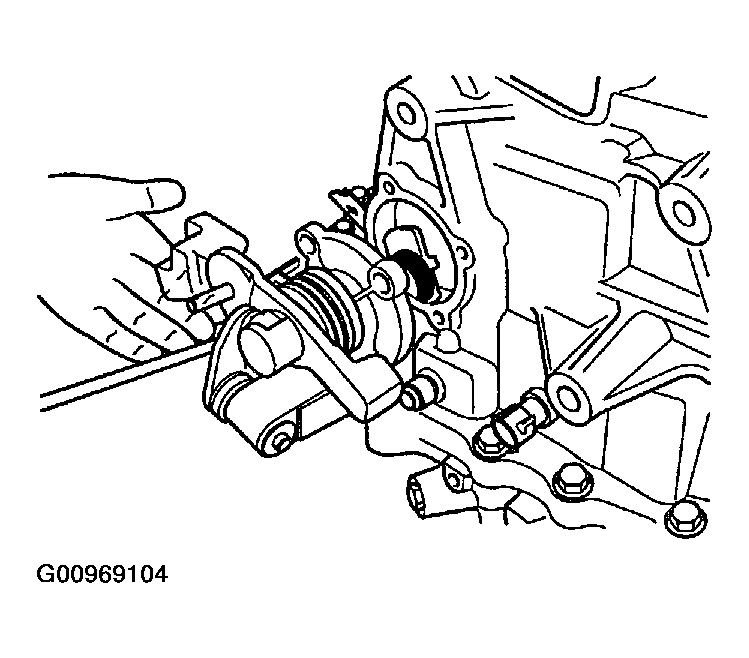

Remove the control assembly.
NOTE: At this time, it comes to pull out easily if you pull out the control assembly while moving to select direction.

Fig 5: Removing Shift Control Mechanism
Courtesy of HYUNDAI MOTOR CO.

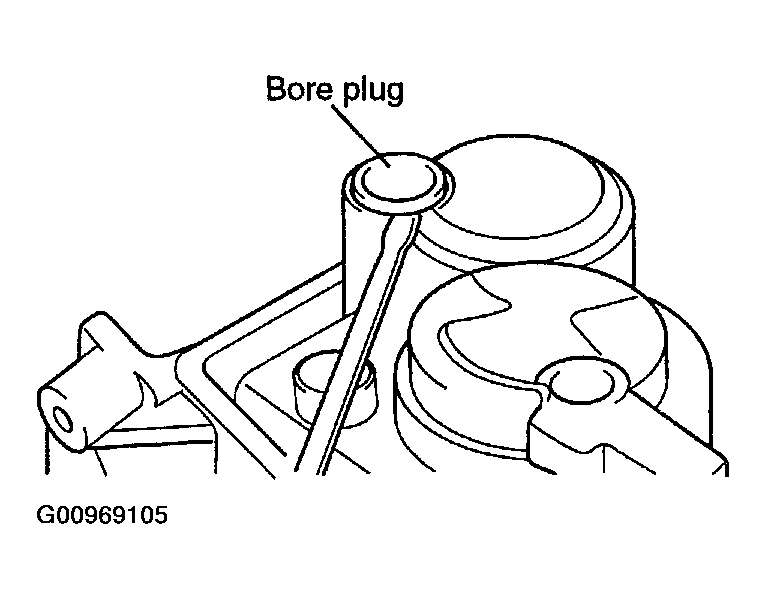

Remove the bore plug by the minus driver etc.

Fig 6: Remove Bore Plug
Courtesy of HYUNDAI MOTOR CO.

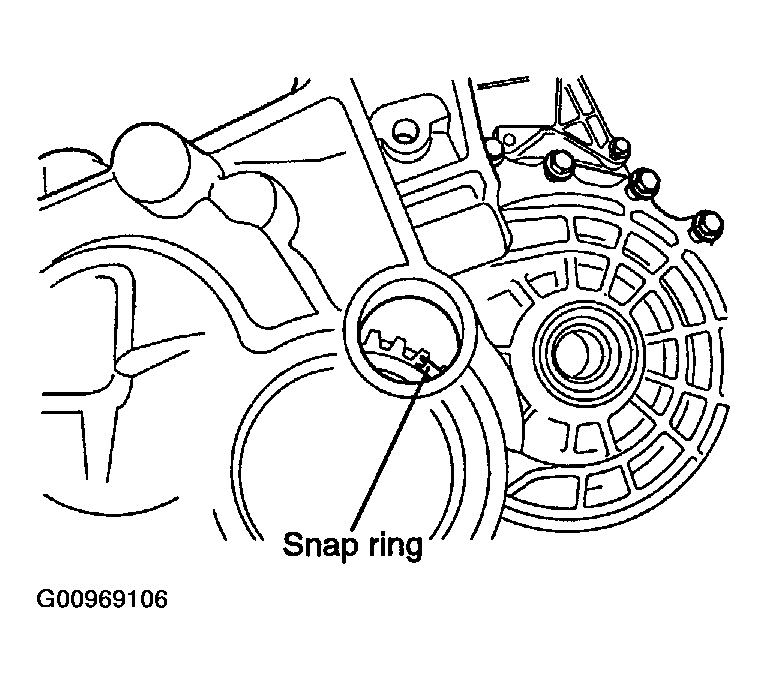

Take off the snap ring of the output shaft from the hole after removing a bore plug.
NOTE: The output shaft drops with the sound named by expanding the snap ring of the output shaft.

Fig 7: Identifying Snap Ring
Courtesy of HYUNDAI MOTOR CO.

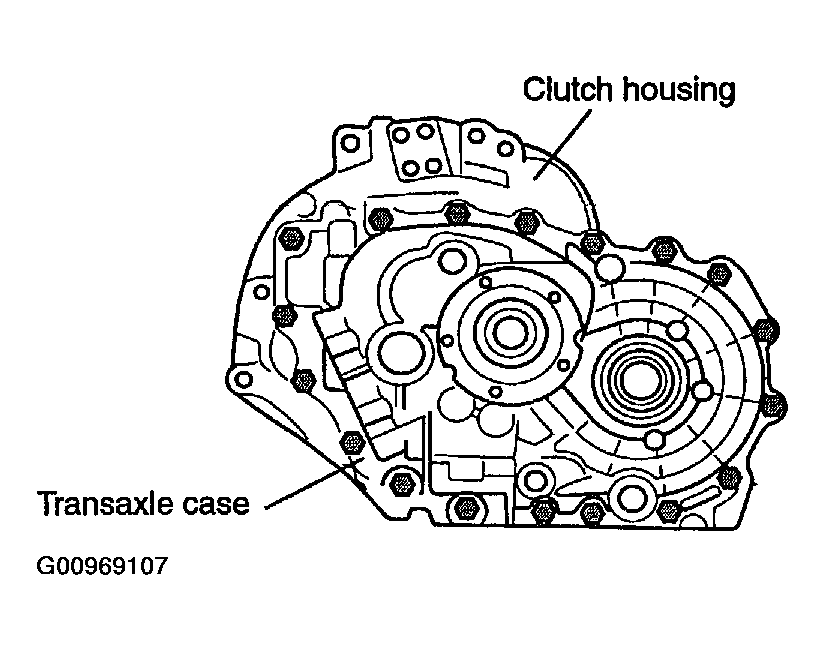

Take off all around bolts by the impact wrench.

Fig 8: Identifying Transaxle Case To Clutch Housing Bolts
Courtesy of HYUNDAI MOTOR CO.

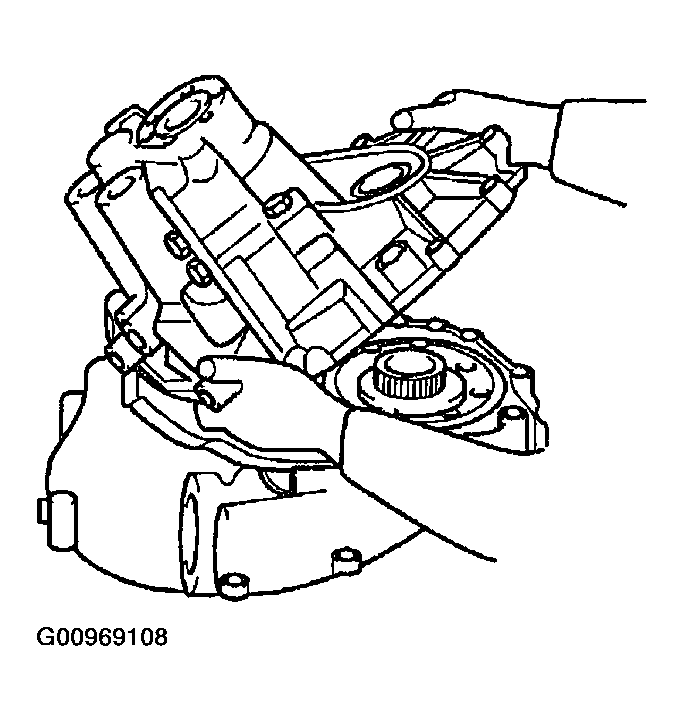

Raise a case while hitting at case corner with plastic hammer.
So pull out the case from housing slowly.

Fig 9: Separating Transaxle Case From Clutch Housing
Courtesy of HYUNDAI MOTOR CO.

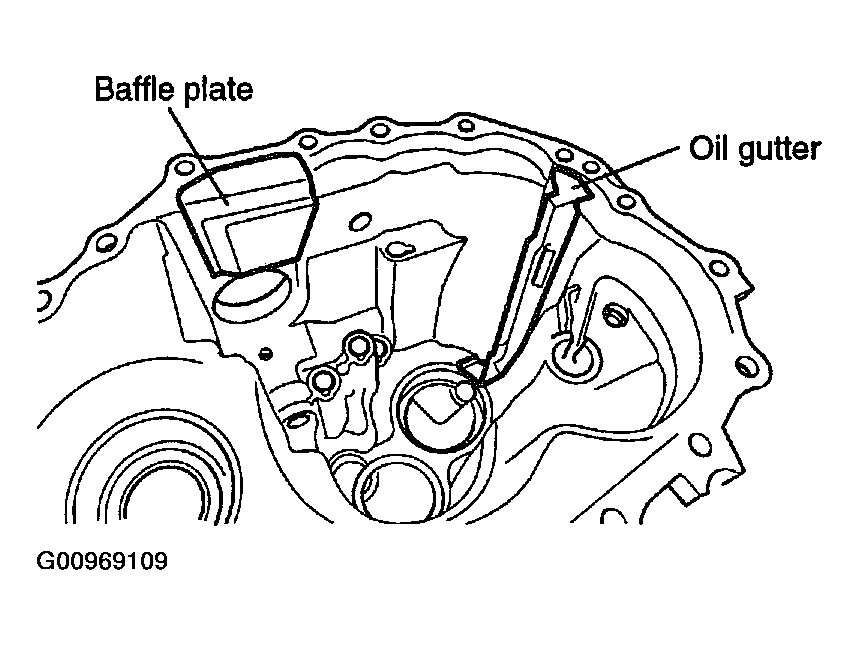

Remove the oil gutter and baffle plate.

Fig 10: Identifying Oil Gutter & Baffle Plate
Courtesy of HYUNDAI MOTOR CO.

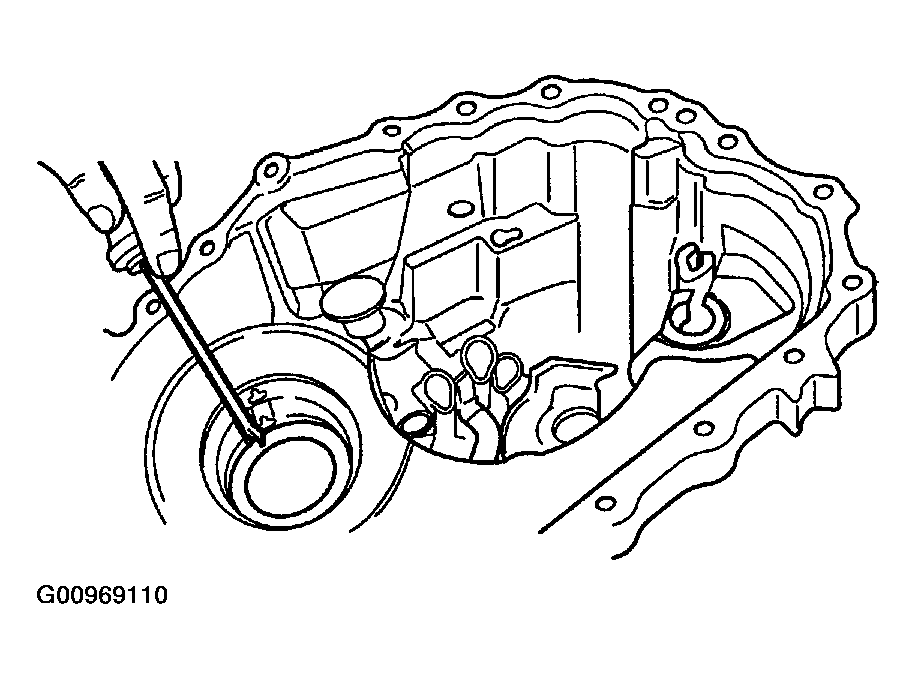

Take off the differential side bearing outer race oil seal and the adjusting shim by (-) drive.

Fig 11: Taking Off The Differential Side Bearing Outer Race Oil Seal & The Adjusting Shim
Courtesy of HYUNDAI MOTOR CO.
