Timing Belt: Notes
WARNING:
This page is about a different variant/trim than selected.

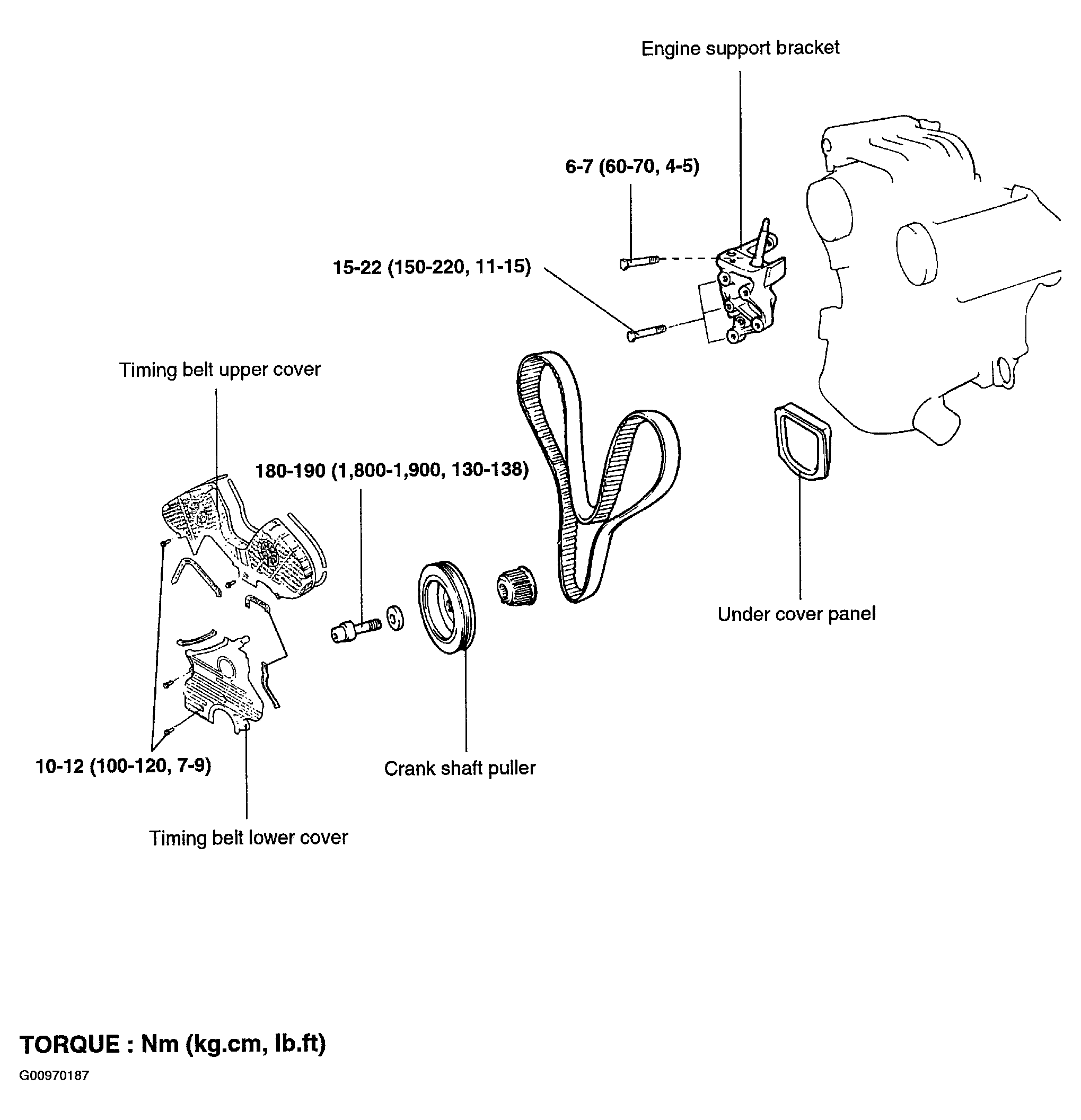

Fig 1: Timing Belt Components
Courtesy of HYUNDAI MOTOR CO.
