Fuse Box

NOTE: Fuse box is located under driver's side of instrument panel. See Fig 1.

Fig 1: Locating Fuse Box

Courtesy of HYUNDAI MOTOR CO.

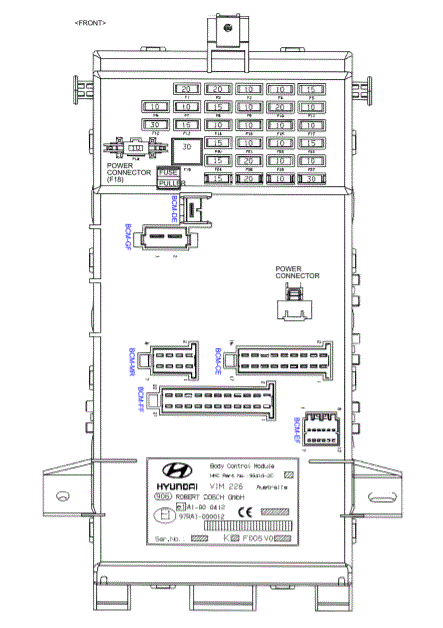

Fig 2: Identifying Fuse Box Components - Front

Courtesy of HYUNDAI MOTOR CO.

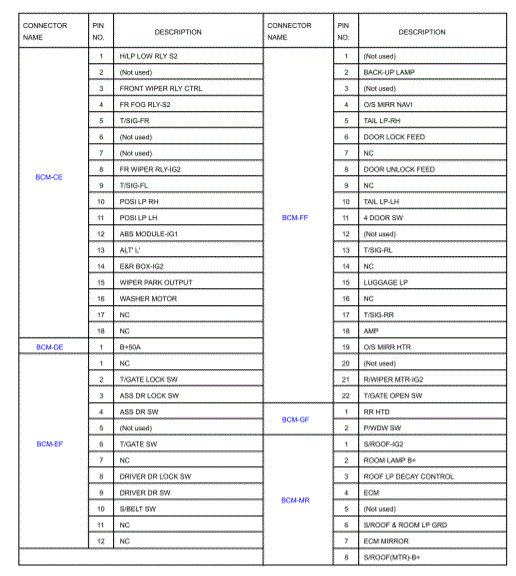

Fig 3: Fuse Box Legend - Front (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

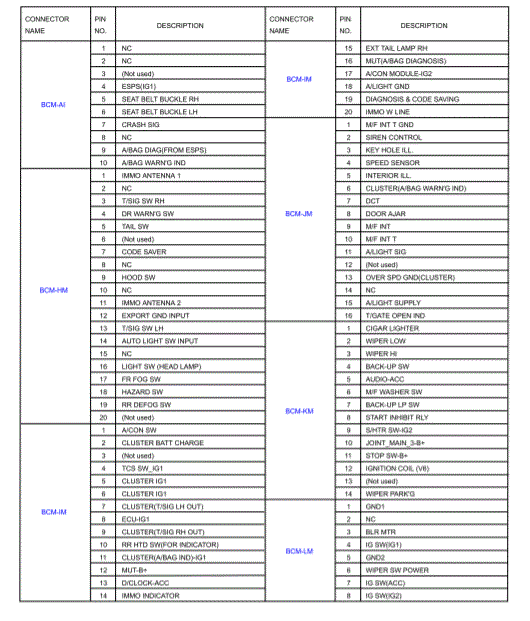

Fig 4: Fuse Box Legend - Front (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Fuse Box Components - Rear

Courtesy of HYUNDAI MOTOR CO.

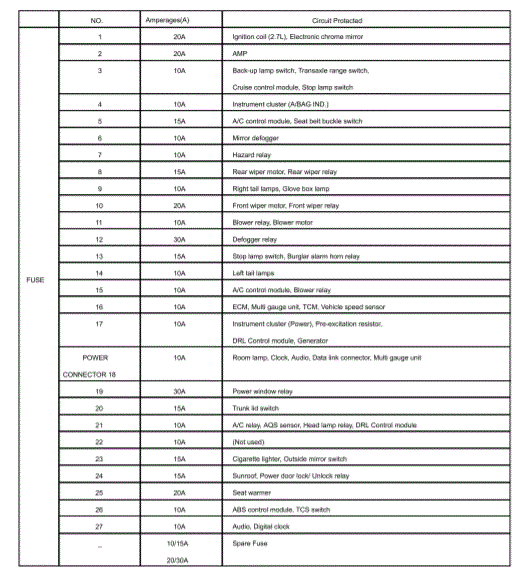

Fig 6: Fuse Box Legend - Rear

Courtesy of HYUNDAI MOTOR CO.
