Operation Check

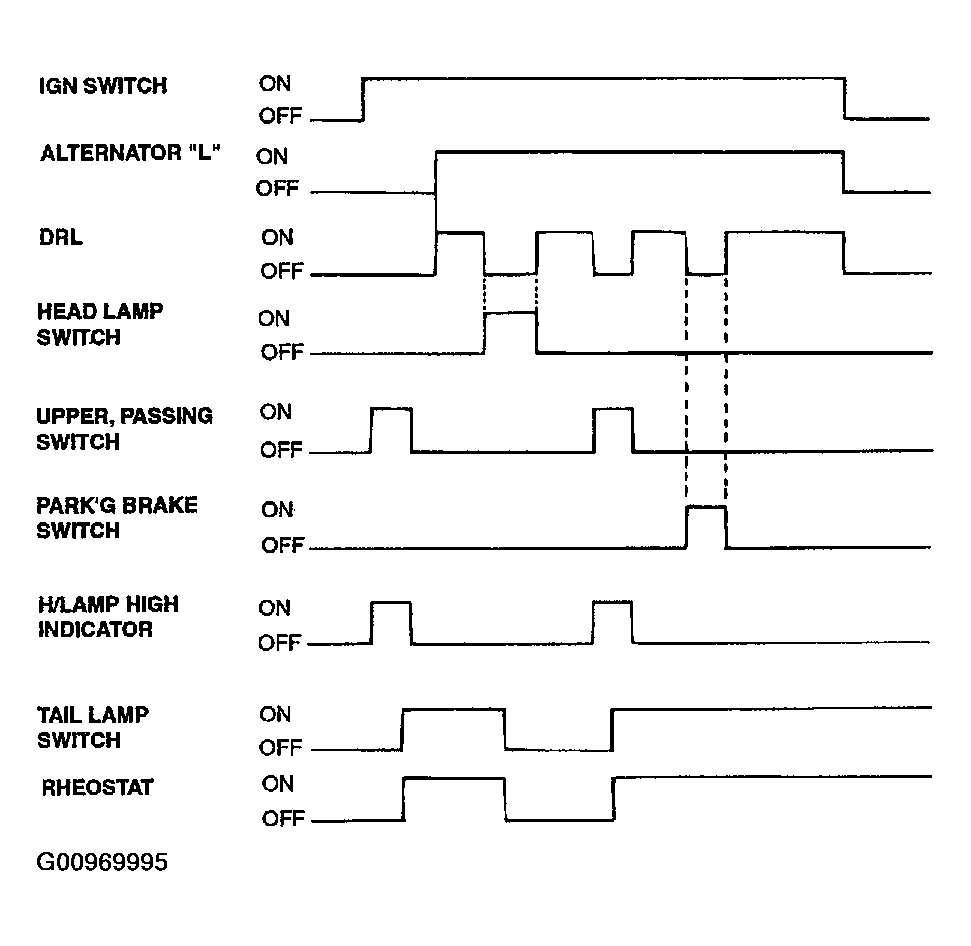

Check that the lights operate according to the following timing chart.

Fig 1: Daytime Running Lights Operational Check Chart
G00969995Courtesy of HYUNDAI MOTOR CO.
