Automatic Transaxle Hydraulic Circuit: Second

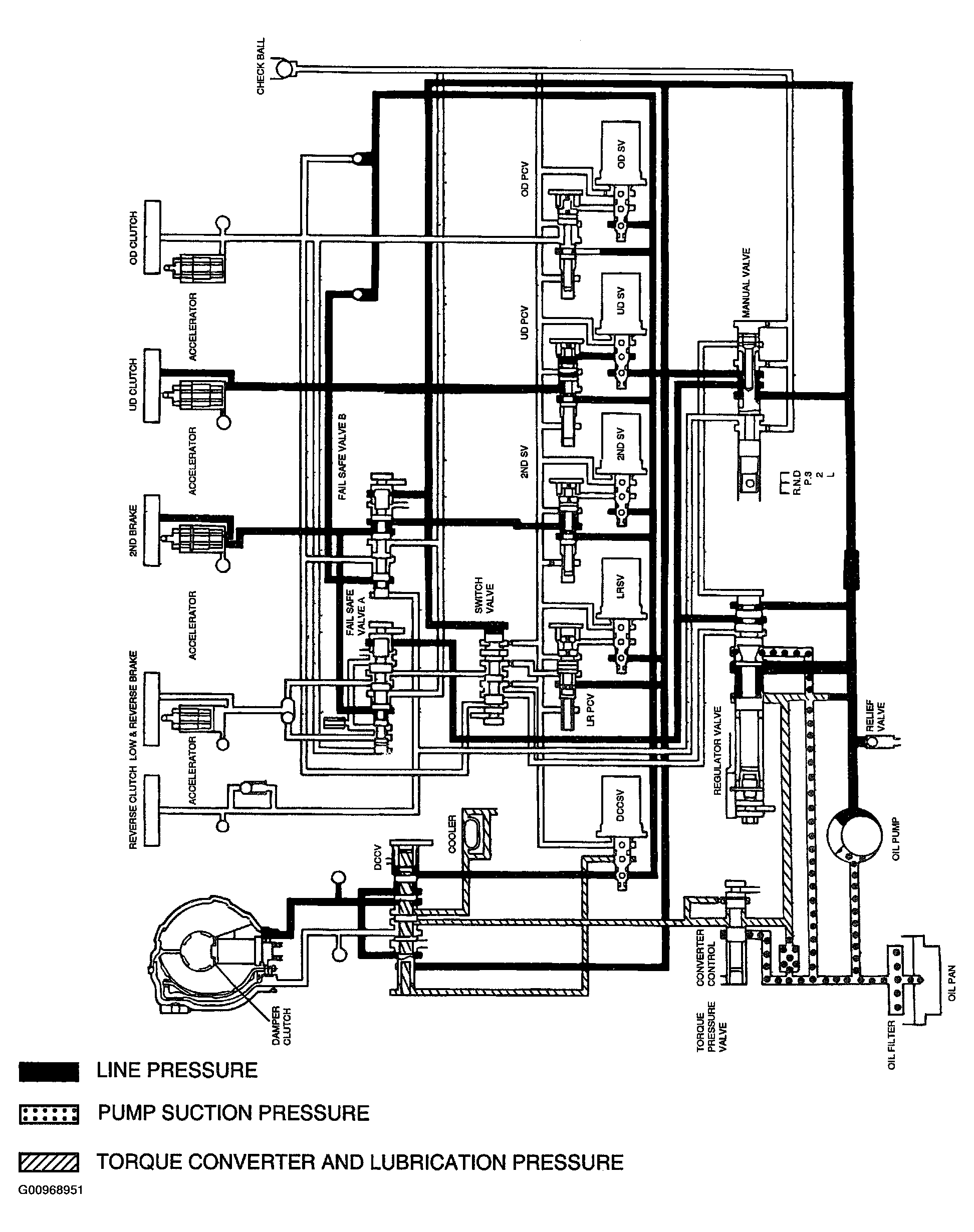

Fig 1: Identifying Hydraulic Circuit In Second Gear

G00968951

Courtesy of HYUNDAI MOTOR CO.
