Home >> Hyundai >> 2003 >> Santa Fe Base, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Abs (Anti-Lock Brake System) >> Tightening Torque

Tightening Torque

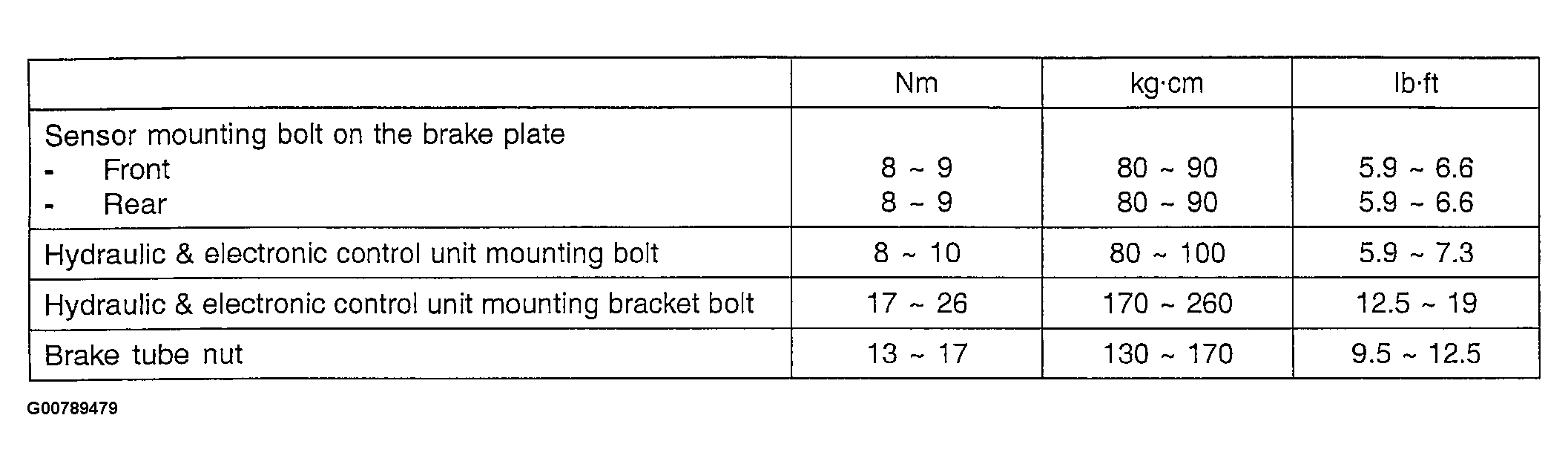

Fig 1: Tightening Torque Table

G00789479

Courtesy of HYUNDAI MOTOR CO.
