Component Inspection

  1. Ignition "OFF".
  2. Measure resistance between terminals 1 and 5 of the sensor connector (Component side).

    Specification

    RESISTANCE REFERENCE CHART

    IATS Normal Parameter
    20°C (68°F) 40°C (104°F) 80°C (176°F)
    Resistance 2.35~3.54 kΩ 1.11~1.19 kΩ 0.31~0.32 kΩ

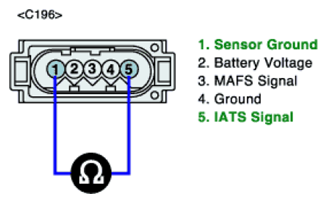

    Fig 1: Measuring Resistance Between Terminals 1 And 5 Of Sensor Connector (Component Side)
    G07330934
  3. Is resistance within the specification?

    YES

    • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
