Home
>>
Hyundai
>>
2003
>>
Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control System
>>
Parts Inspection
>>
Cruise Control Main Switch
Cruise Control Main Switch
Operate the switch and check for the continuity between the terminals.
If continuity is not as specified, replace the switch.

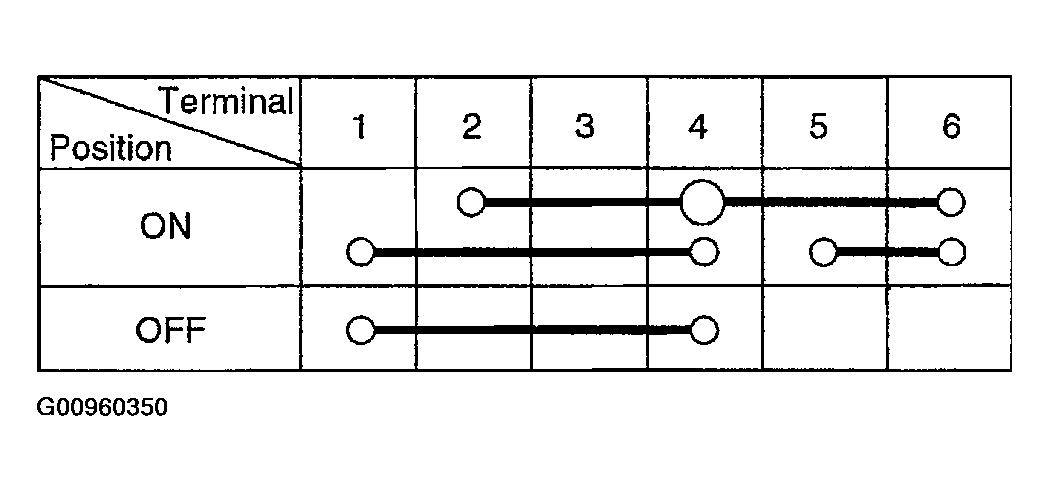

Fig 1: Cruise Control Main Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
