Automatic Transaxle Hydraulic Circuit: Reverse

WARNING: This page is about a different variant/trim than selected.

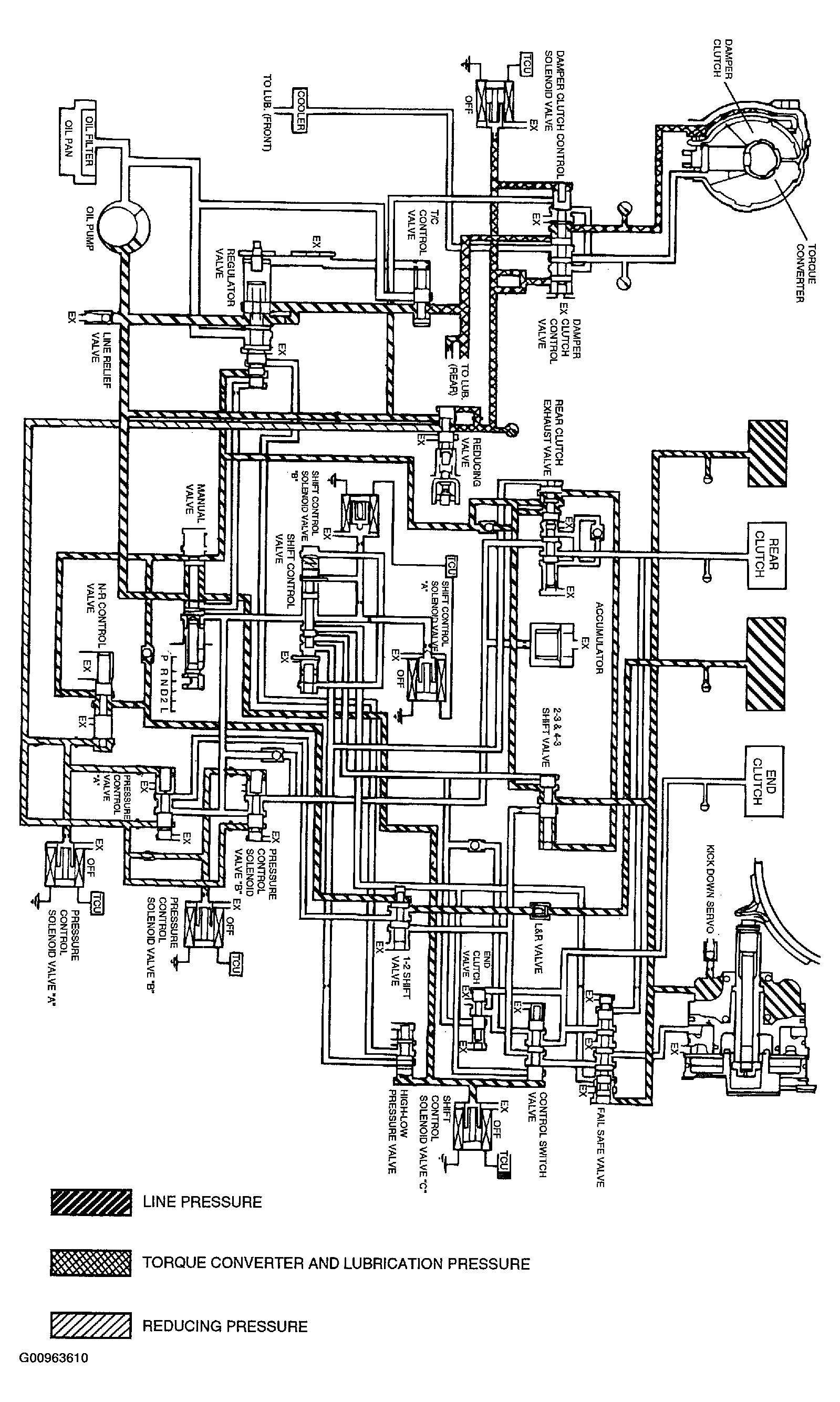

Fig 1: Hydraulic Circuit In Reverse
G00963610Courtesy of HYUNDAI MOTOR CO.
