Head Lining

Prior to removing the headlining, remove the following items.
- Front seat
- Rear seat
- Overhead console
- Front pillar trim
- Front door scuff trim
- Rear door scuff trim
- Front seat belt
- Center pillar lower, upper trim
- Rear seat belt lower anchor
- Transverse trim
- Rear center seat belt anchor
- Luggage side trim
- Rear pillar trim
- Sun visor and Grab handles
After detaching the headlining mounting clips, remove the headlining.

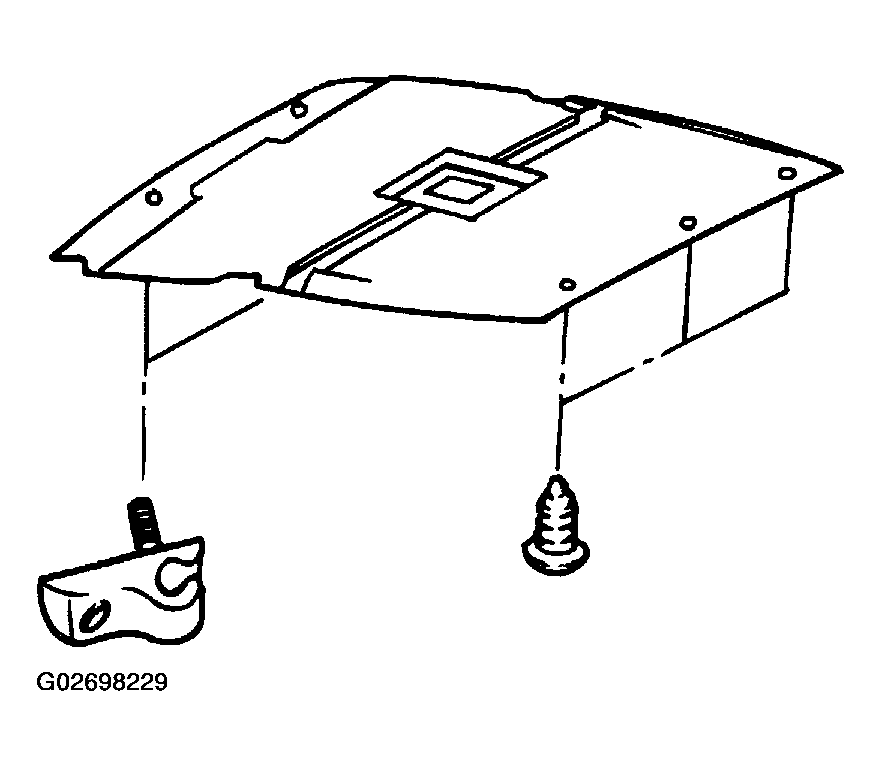

Fig 1: Removing Headlining
Courtesy of HYUNDAI MOTOR CO.

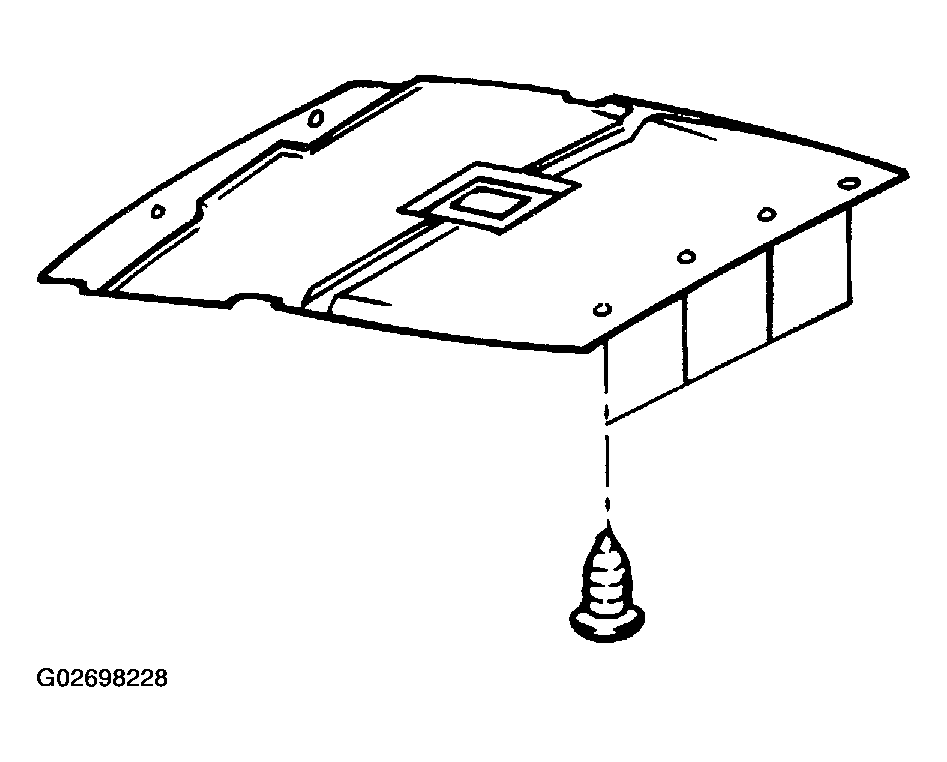

Fig 2: Removing Headlining
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
