Main Crash Pad
CAUTION:
- When using a screwdriver or equivalent, wrap it with protective tape to prevent damage.
- Wear gloves to protect hands from injury.
NOTE:
Be careful not to scratch the crash pad.
- Remove the steering wheel and airbag module.
- Remove the glove box. See GLOVE BOX REMOVAL AND INSTALLATION
- Remove the crash pad lower panel. See CRASH PAD LOWER PANEL REMOVAL AND INSTALLATION .
- Remove the center facia panel. See CENTER FACIA PANEL REMOVAL AND INSTALLATION .
- Remove the audio assembly.
- Remove the crash pad side trim.
- Disconnect the antenna connecting connector.

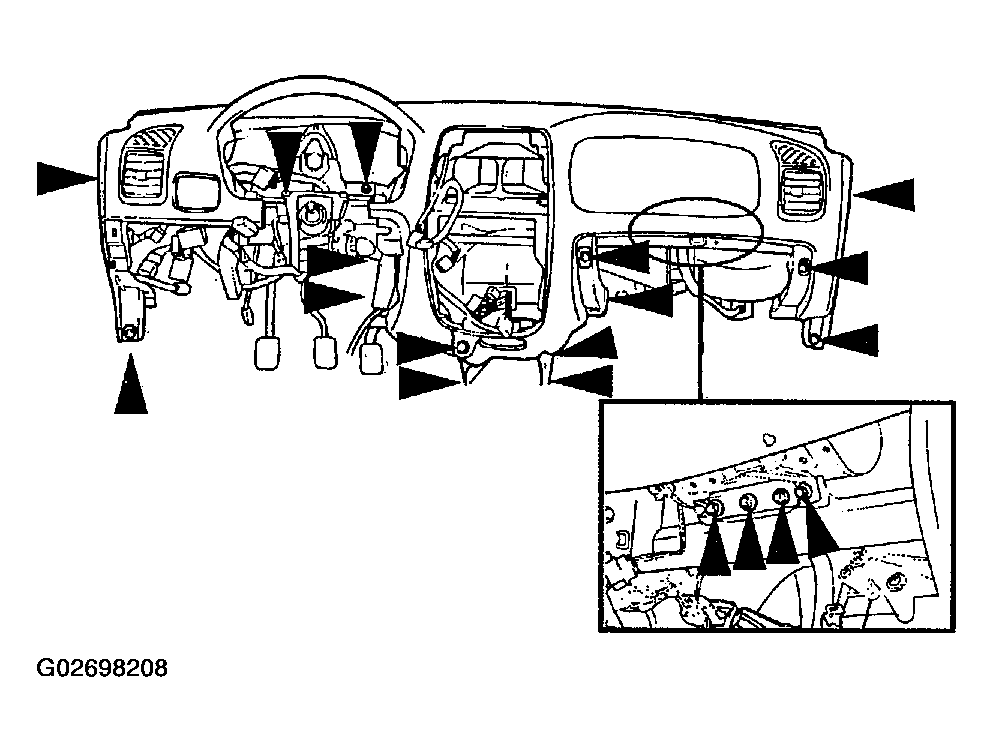

- After loosening the main crash pad mounting bolts, remove the main crash.
- Installation is the reverse of removal.
