Jacking & Hoisting: Hoist

CAUTION: Follow hoist manufacturer's instructions. Do not allow hoist or adapters to contact suspension, exhaust or steering components.

Place adapters at 4 contact points. See Fig 1 or Fig 2 . Position adapters so they are centered on contact area.

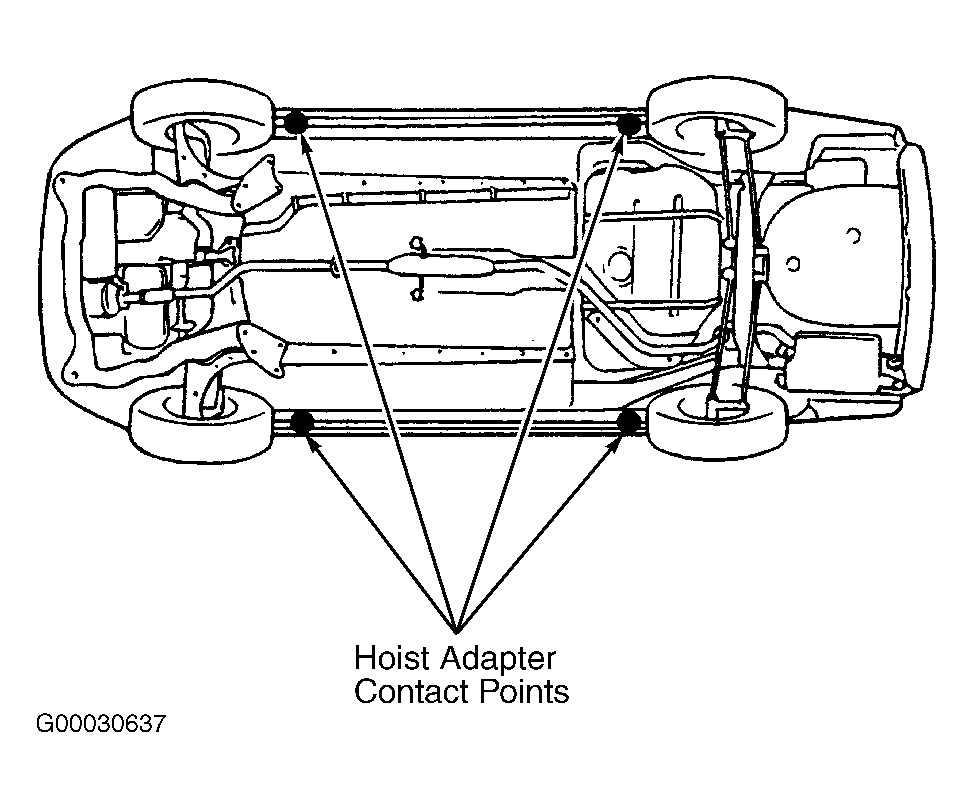

Fig 1: Lifting Points (Accent, Elantra & Santa Fe)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Lifting Points (Sonata & XG350)

Courtesy of HYUNDAI MOTOR CO.
