Trip Computer Bulb Replacement (04-90-005)

Publication date: 2004-03-01
Reference number: 04-90-005

TRIP COMPUTER BULB REPLACEMENT

TRIP COMPUTER BULB REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04-90-005, Date of Issue:  March, 2004
HYUNDAI: 2001 XG300; 2002 XG350
GROUP: 90 - ELECTRICAL

DESCRIPTION

This TSB describes how to replace the 4 bulbs inside the trip computer module on 2001-2002 MY XG300/350 vehicles.

PARTS INFORMATION

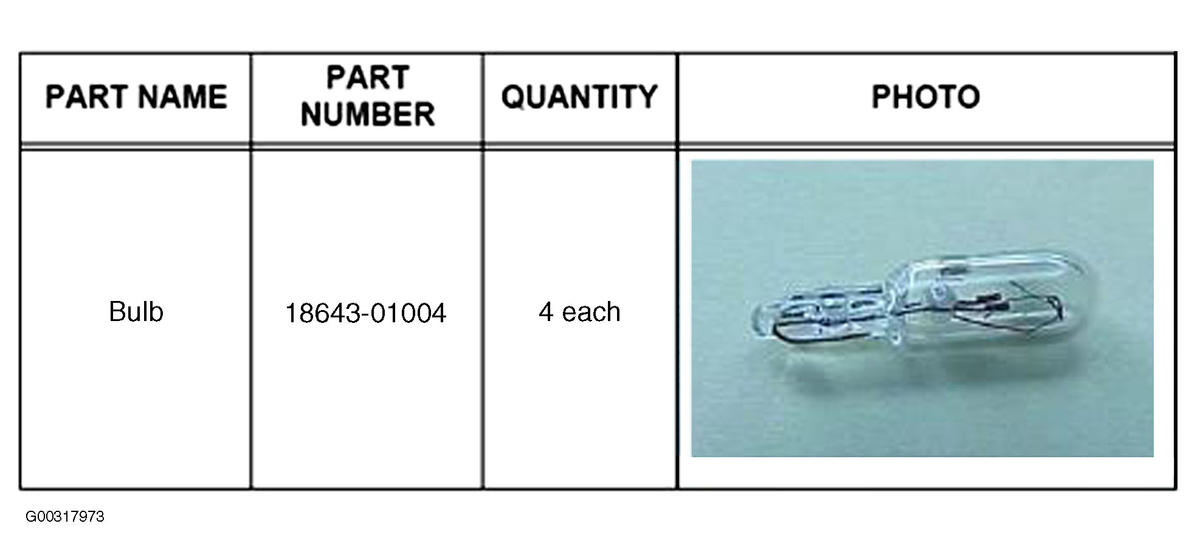

Fig 1: Parts Information
G00317973

PROCEDURE

  1. Open the driver's door.
  2. Turn the ignition key to the "ON" position.
  3. Set the parking brake.
  4. Move the shift lever to "D" position.
  5. Remove the center fascia panel (Fig 2 ). Use a wide flat tool, such as a trim tool or a clean scraper to pop the clips (Fig 3 ) out. Remove the bottom clips, then work upwards.

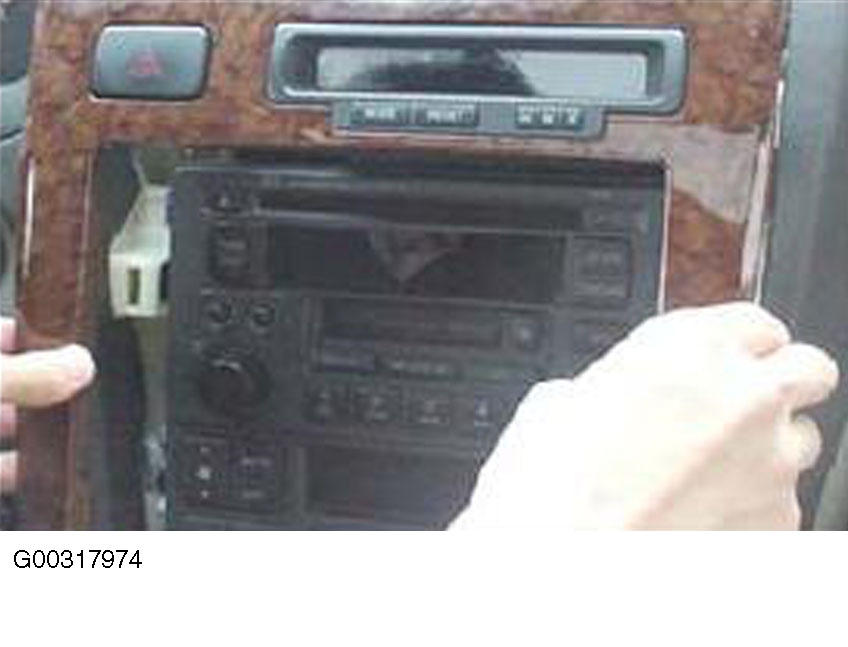

    Fig 2: Center Fascia Panel
    G00317974
    CAUTION: Be careful not to scratch the center fascia panel, break any of the 6 mounting clips, or press too hard on the instrument panel.

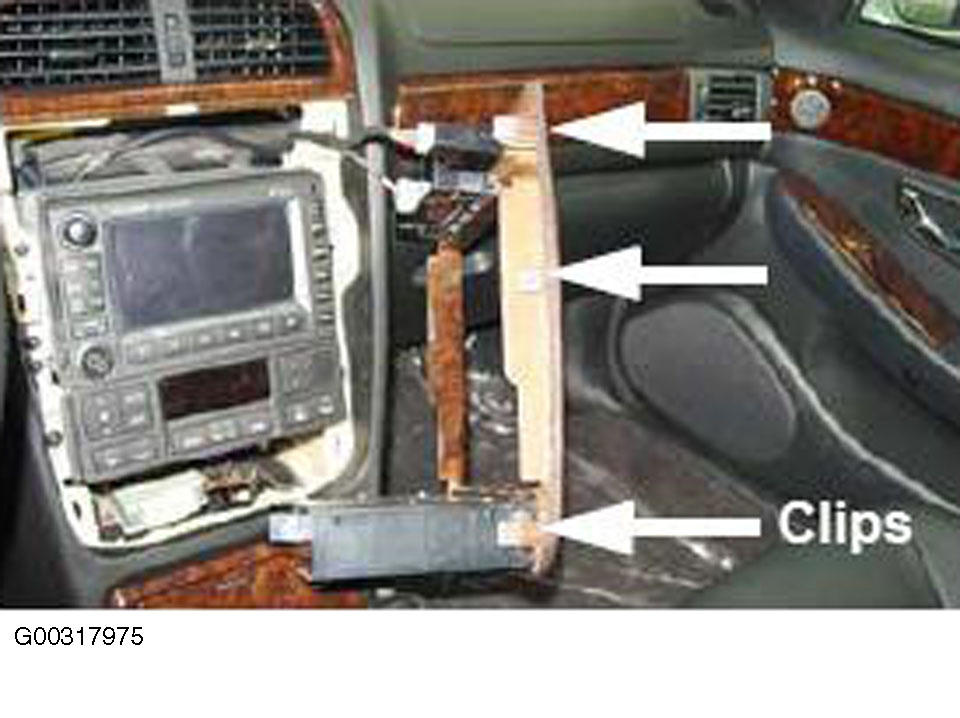

    Fig 3: Mounting Clip Locations
    G00317975
  6. Disconnect the hazard lamp switch and trip computer connectors. (Fig 4 )

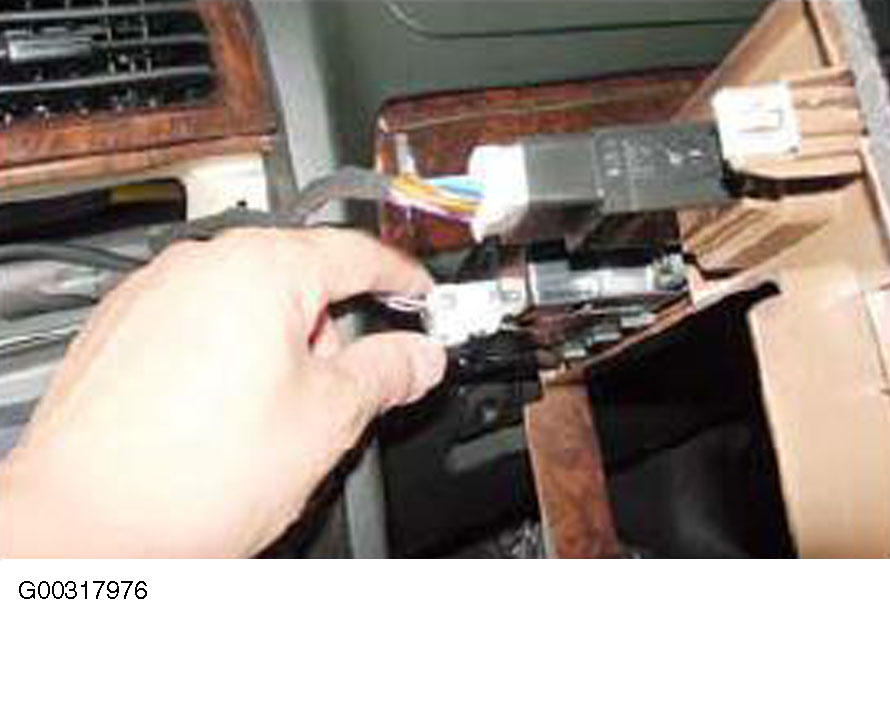

    Fig 4: Hazard Lamp Switch
    G00317976
  7. Remove the 4 mounting screws (Fig 5 ) and then remove the trip computer from the center fascia panel.

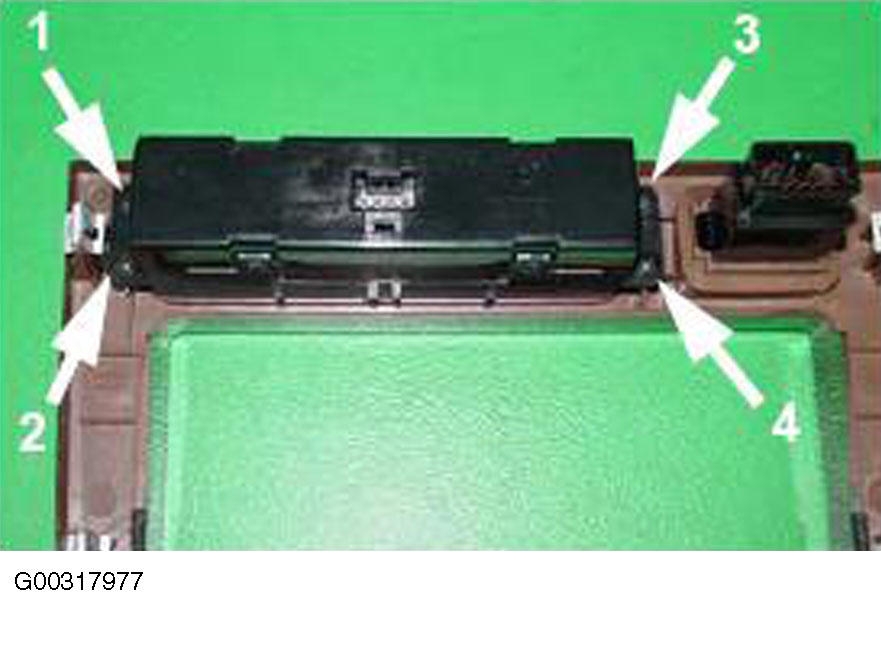

    Fig 5: 4 Mounting Screws
    G00317977
  8. The removed trip computer. (Fig 6 )

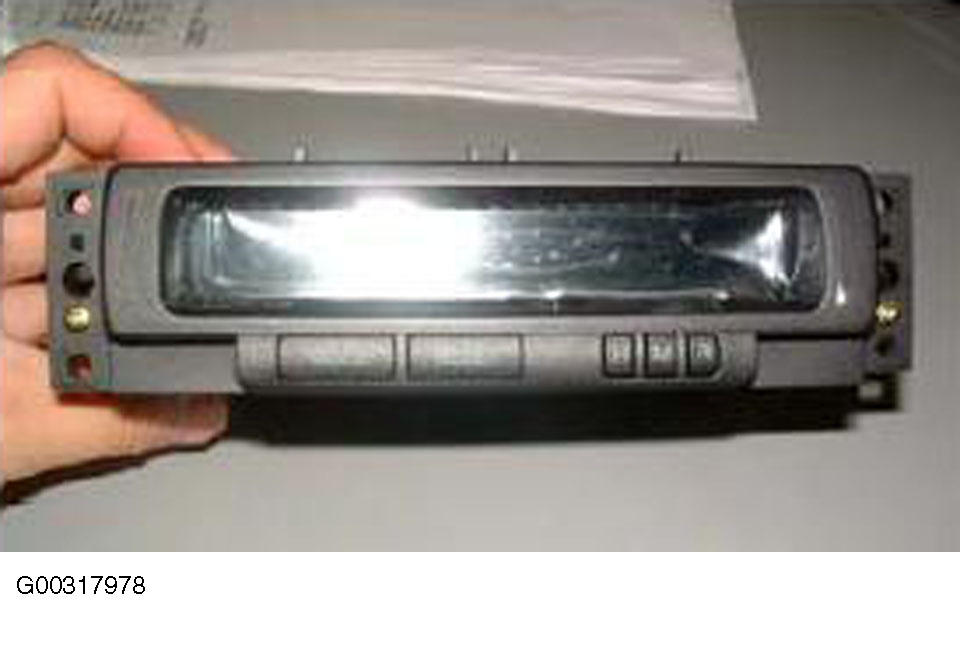

    Fig 6: Trip Computer
    G00317978

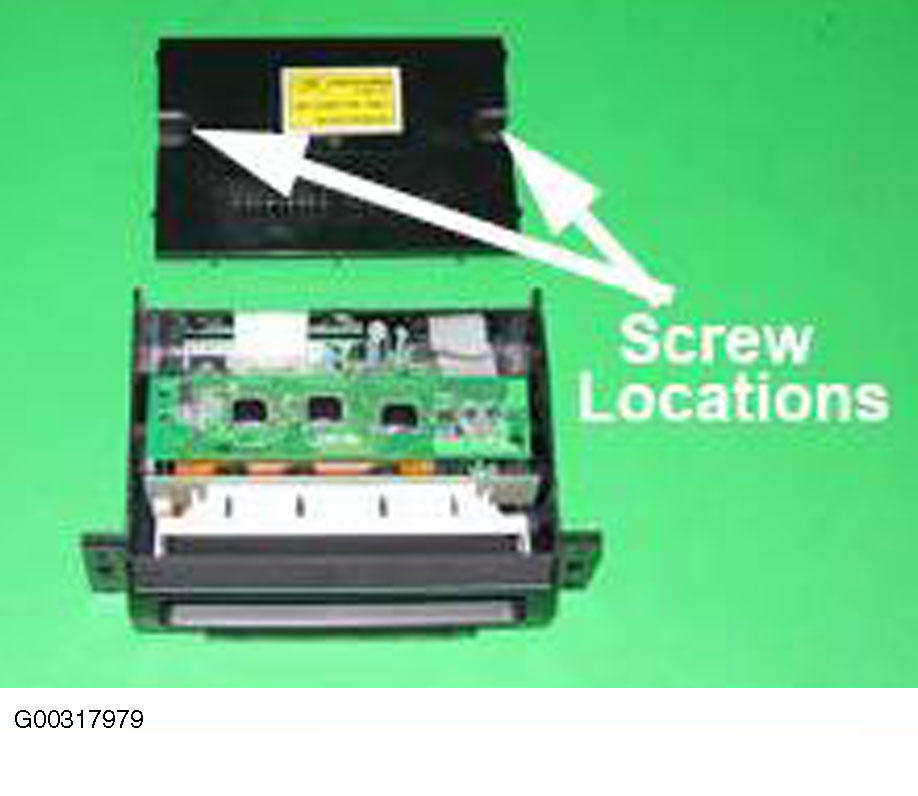

  9. Remove the 2 top cover mounting screws (Fig 7 ), cut the part number sticker on the back along the edge of the cover, and remove the cover.
    Fig 7: Screw Locations
    G00317979

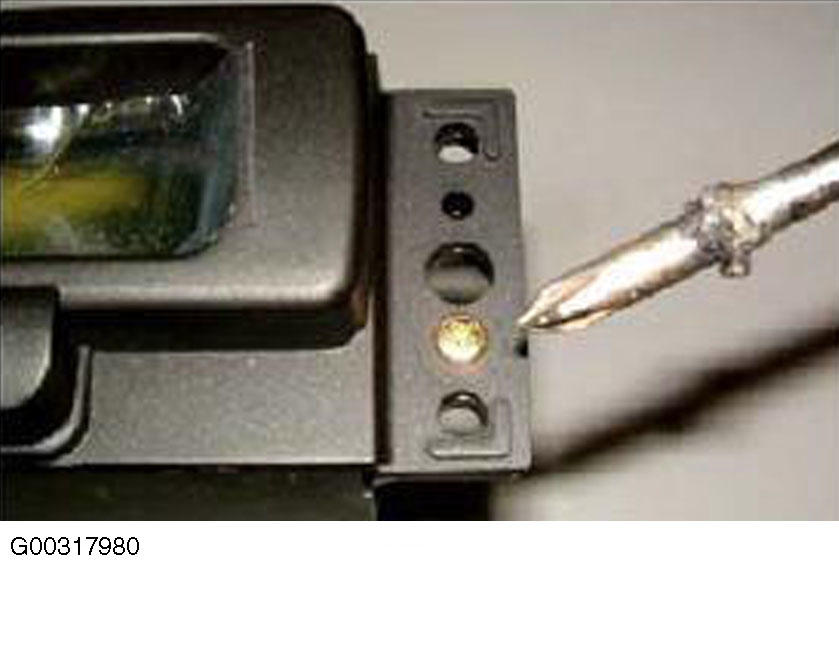

  10. The front cover is held on by either 2 screws or clips on each side. (Fig 8 )
    Fig 8: Front Cover and Screws
    G00317980
    MOUNTING TYPES

    Front cover to body mounting type
    Effective production date range
    Clip type Produced on or before Feb. 18, 2000
    Screw type Produced after Feb. 18, 2000

    Remove the screws or open the clips as necessary to remove the front cover (Fig 9 ).

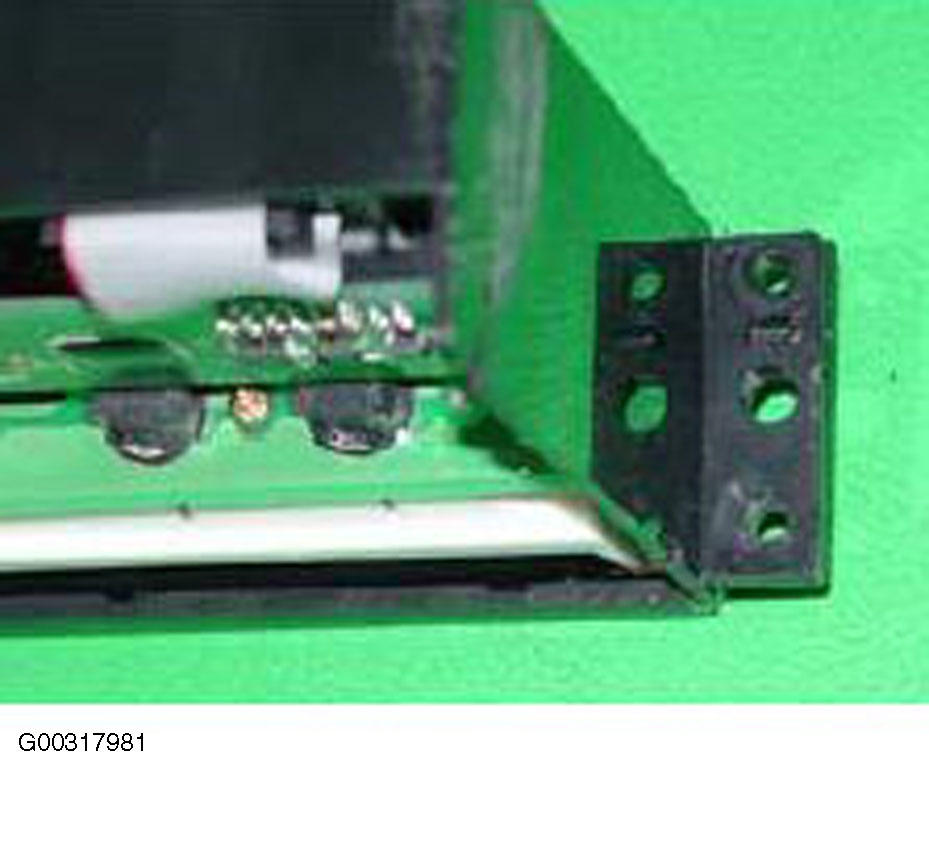

    Fig 9: Front Cover Removed
    G00317981
    CAUTION: Do not twist or pull on the ribbon cable which connects the front cover to the main printed circuit board.
  11. Remove and replace all 4 bulbs as a set. Pull the bulb out of the socket, peel the green cover off of the old bulb and place it on the new bulb, then insert the new bulb into the socket.
    NOTE: All 4 bulbs must be replaced as a set.
  12. Reinstall all removed components in the reverse order of their removal.
    NOTE: Make certain that the center fascia panel mounting clips (6 each) are installed to the crash pad correctly.
  13. Check the trip computer for proper operation.

WARRANTY INFORMATION

WARRANTY INFORMATION

Op Code Operation Op Time Causal P/N Nature Code Cause Code
95741R0F Trip computer light bulb replacement 0.3 M/H 18643-01004 N94 C01
