Shift Lock Cable & Key Lock Cable (Sonata)

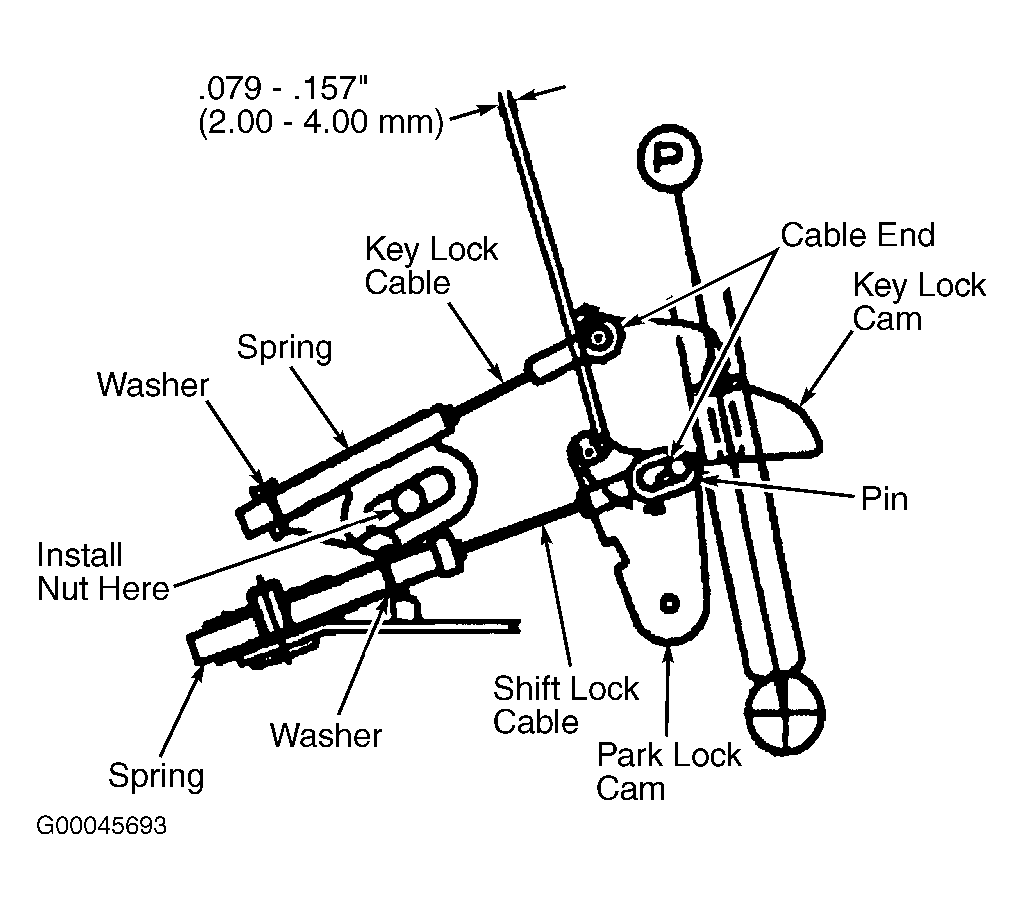

- Ensure shift lock cable is properly attached at brake pedal. Ensure key lock cable is properly attached to key cylinder. Temporarily install each cable to shifter assembly. Securely insert cable end into fixing pin of each cam. See Fig 1 .
- Maintain gap of .079-.157" (2.00-4.00 mm) between key lock cam and park lock cam to eliminate cable slack by pulling shift lock cable slightly forward away from gearshift lever.
- After ensuring a portion of cable end touches cable fixing pin of park lock cam, attach shift lock cable to shifter assembly with a nut, and attach shift lock cable end using washer and pin. See Fig 1 .
- Slightly push key lock cam forward away from gearshift lever, then slightly pull key lock cable rearward toward gearshift lever to stretch cable tight. Attach cable with nut. Ensure key lock cable is inserted into key lock cam fixing pin, then attach cable using washer and pin.
- Check shift lock system operation. See SHIFT LOCK SYSTEM under SYSTEM TESTS. Check key lock system operation. See KEY LOCK SYSTEM under SYSTEM TESTS. Ensure system is operating properly. If system is not operating properly, readjust shift lock and key lock cables.
CAUTION:
If gap is not maintained between .079-.157" (2.00-4.00 mm), brake pedal should be depressed more than required when operating button on gearshift lever.
NOTE:
If slack in key lock cable is not eliminated, ignition key cannot be removed from key cylinder and gearshift lever can be shifted from "P" position to other gear positions even though key is in LOCK position.
