Clutch Switch

Ensure continuity exists when clutch switch plunger is depressed and no continuity exists when plunger is released. See Fig 1 .

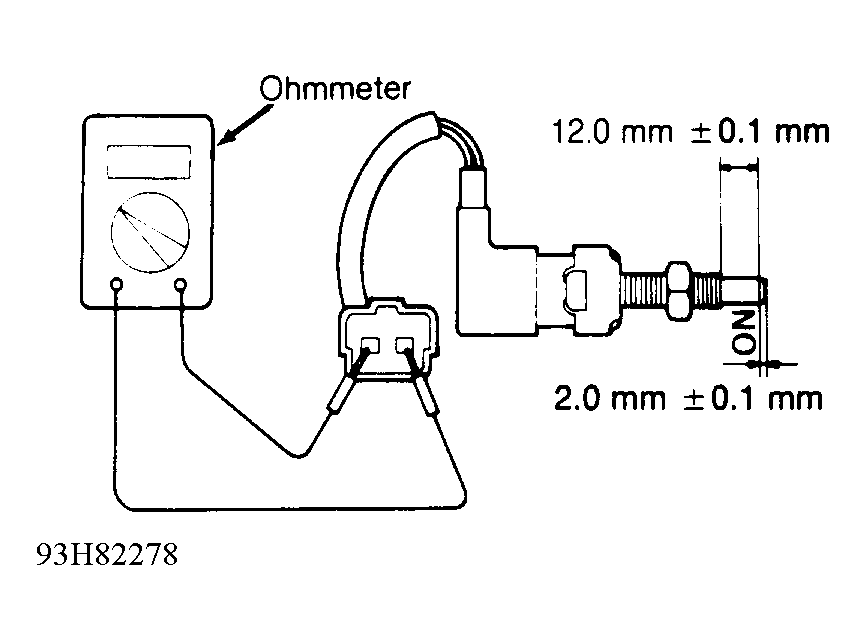

Fig 1: Testing Clutch Switch (Typical)

Courtesy of HYUNDAI MOTOR CO.
