Wiring Diagrams

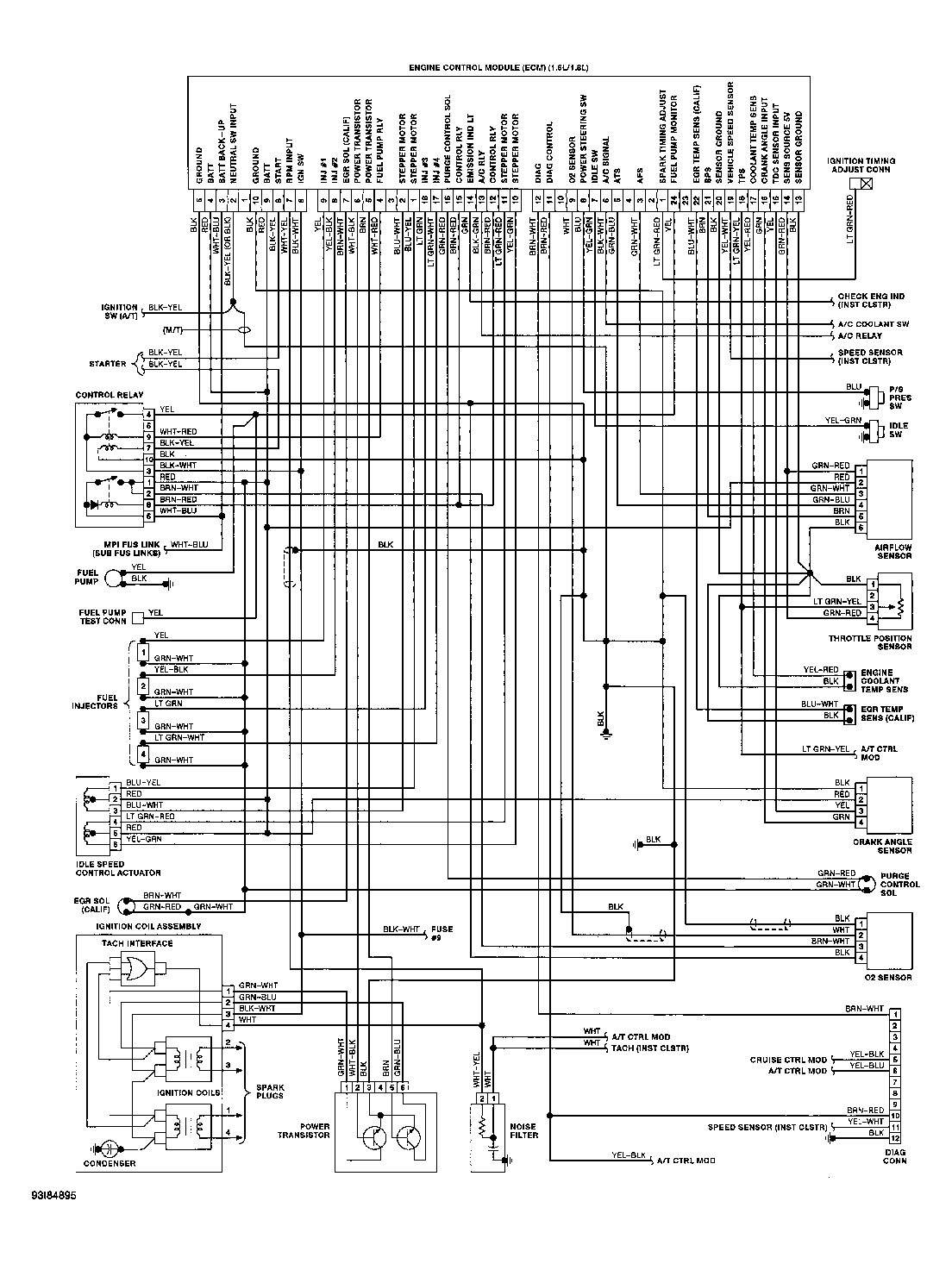

Fig 1: Wiring Diagram (Elantra 1.6L & 1.8L)

G93I84895

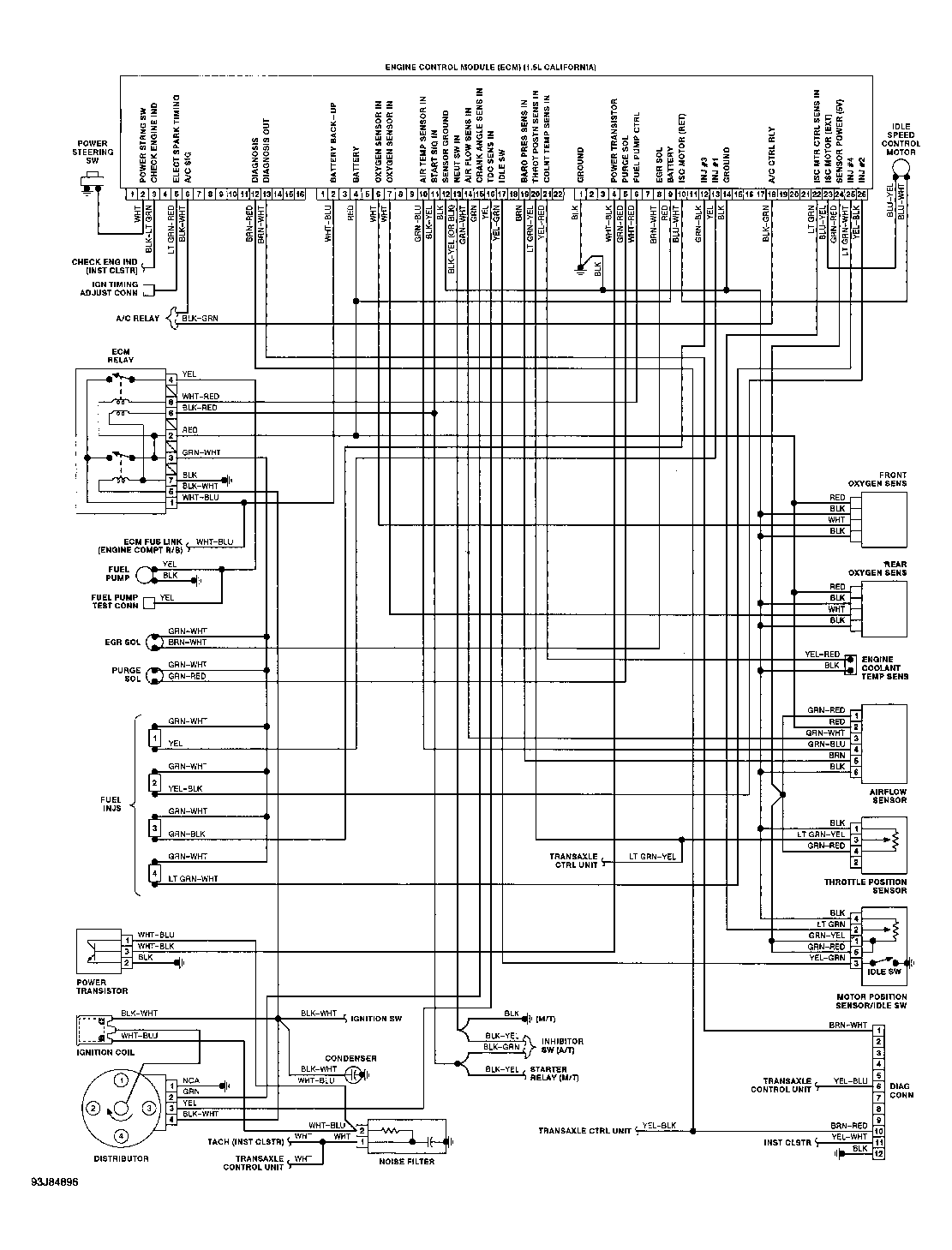

Fig 2: Wiring Diagram (Excel 1.5L - California)

G93J84896

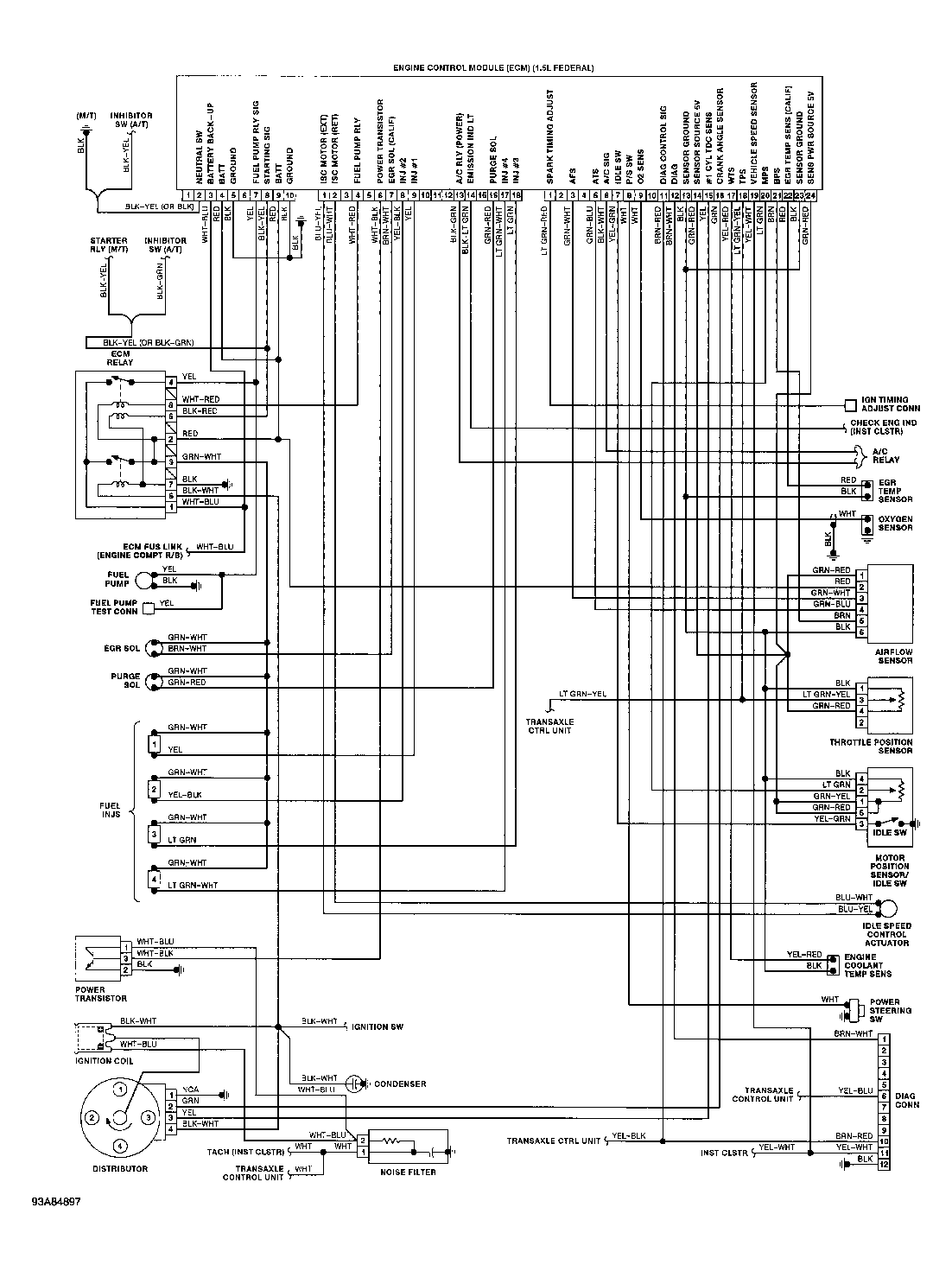

Fig 3: Wiring Diagram (Excel 1.5L - Federal)

G93A84897

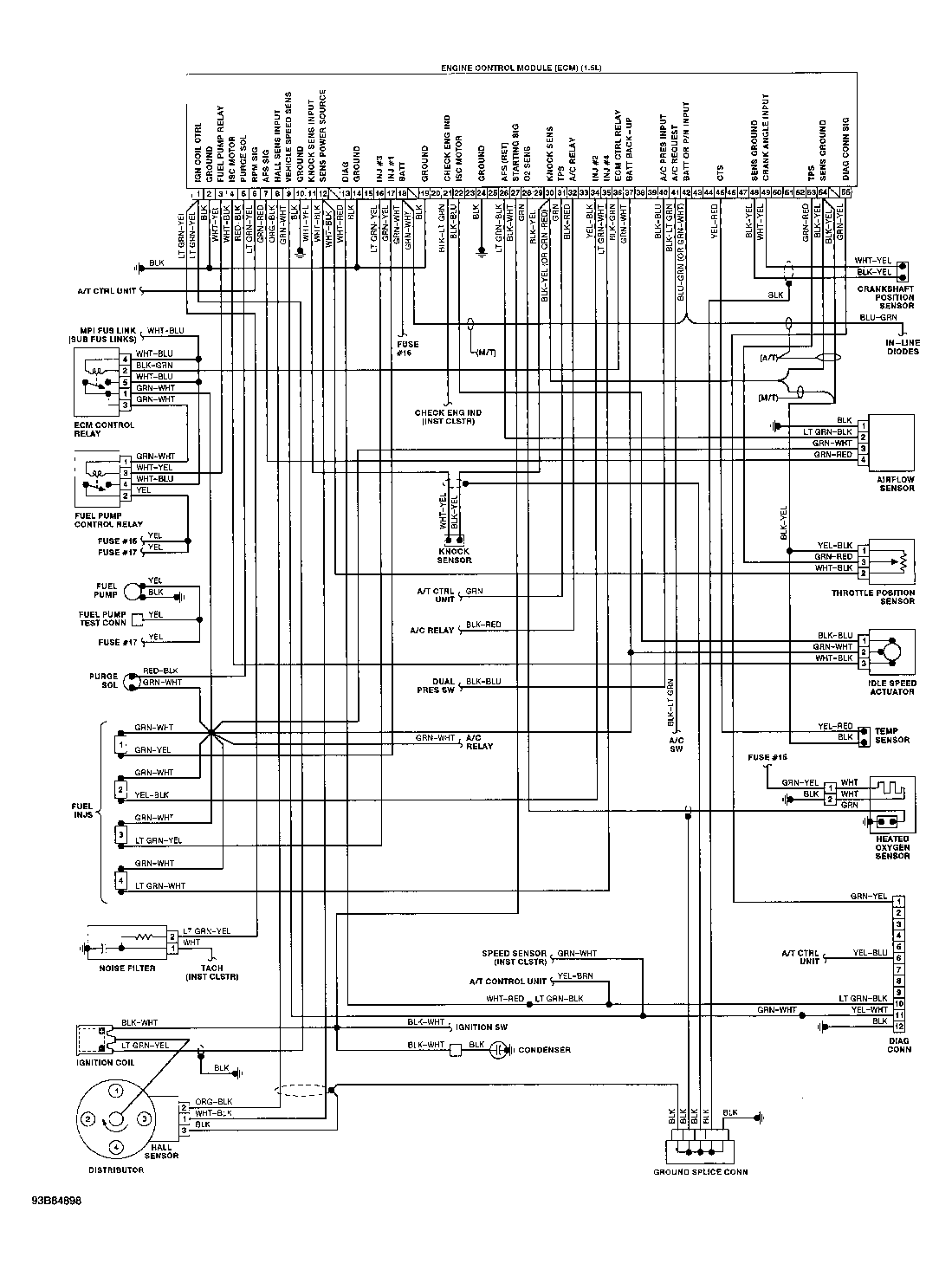

Fig 4: Wiring Diagram (Scoupe 1.5L - Non-Turbo)

G93B84898

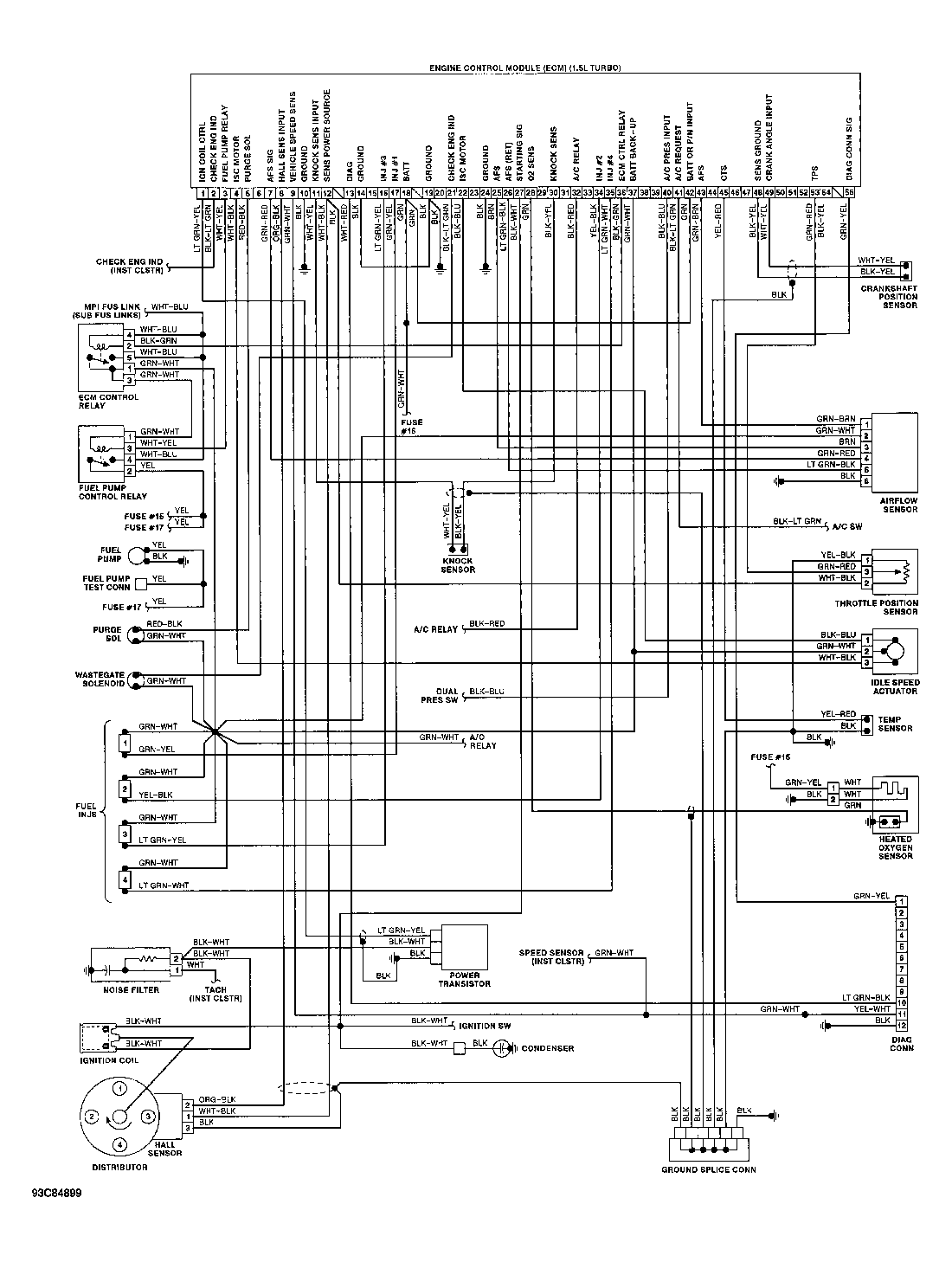

Fig 5: Wiring Diagram (Scoupe 1.5L - Turbo)

G93C84899

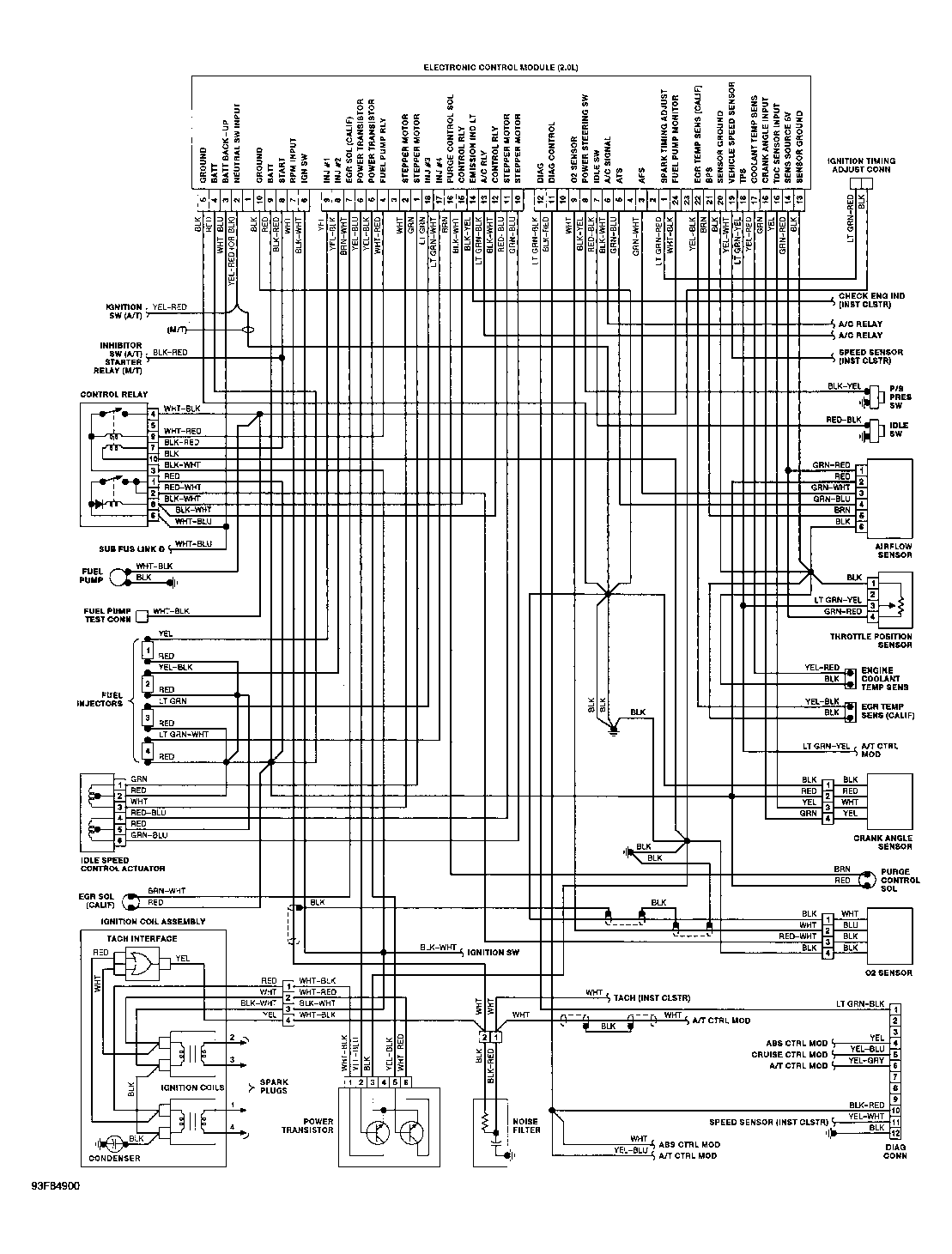

Fig 6: Wiring Diagram (Sonata 2.0L)

G93F84900

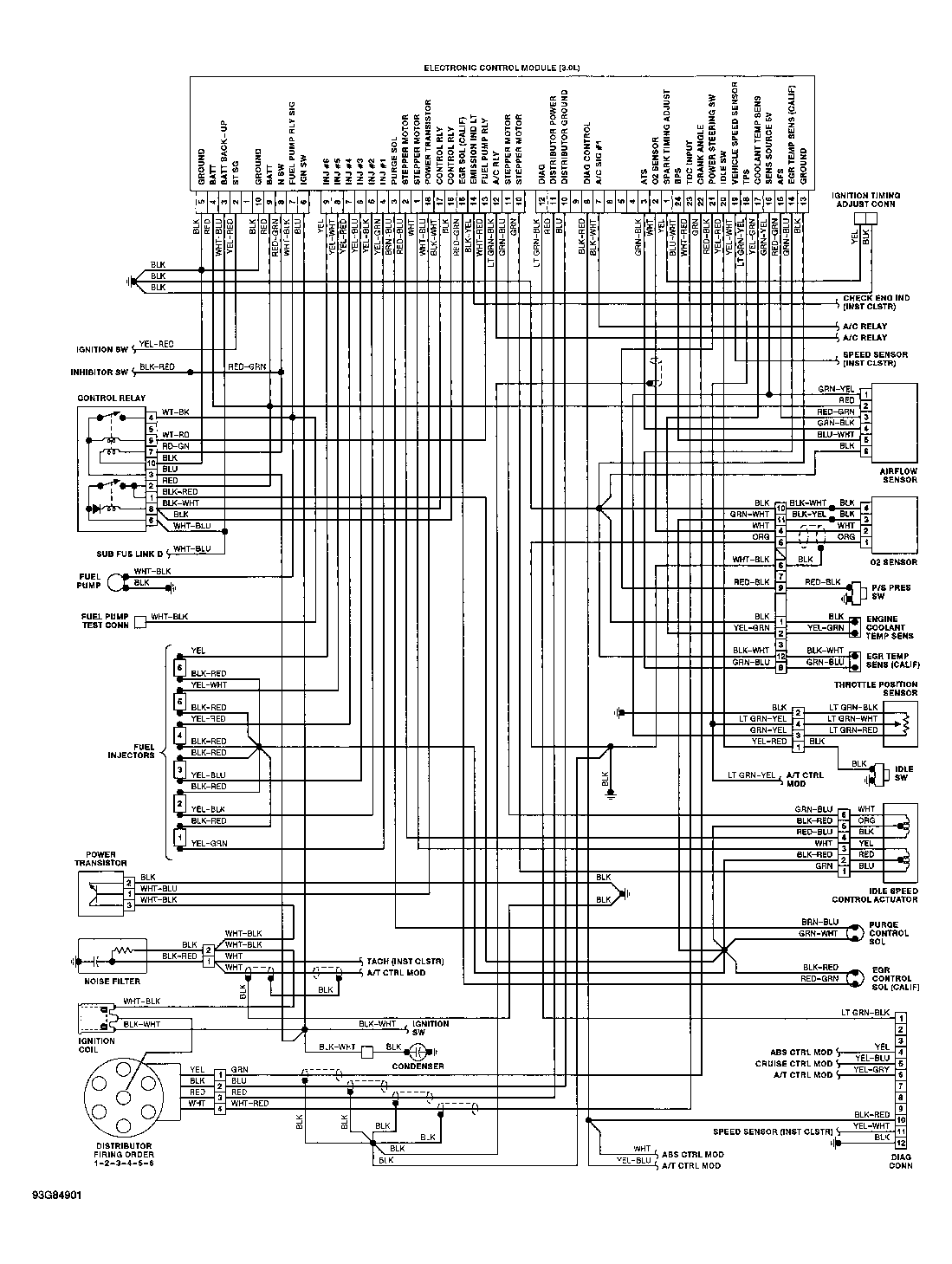

Fig 7: Wiring Diagram (Sonata 3.0L)

G93G84901
