Component Testing: Actuator

Disconnect actuator connector. Measure resistance of clutch coil between terminals No. 3 and 4. Resistance should be 55 ohms. If resistance is not as specified, replace actuator. SeeFig 1 or Fig 2 .

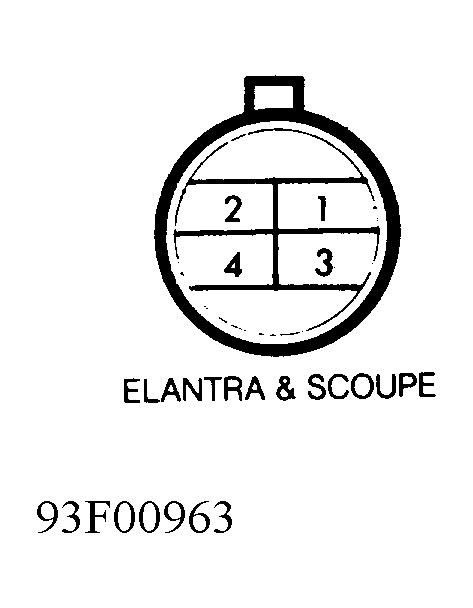

Fig 1: Testing Actuator Clutch Coil Resistance (Elantra & Scoupe)

Courtesy of HYUNDAI MOTOR CO.

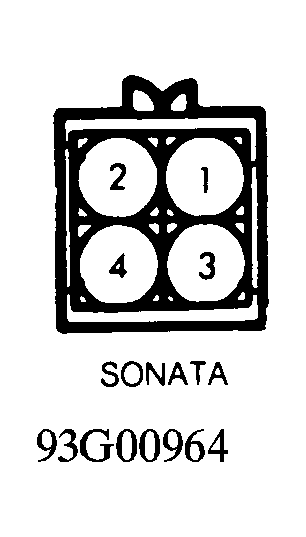

Fig 2: Testing Actuator Clutch Coil Resistance (Sonata)

Courtesy of HYUNDAI MOTOR CO.
