Immobilizer Schematics
Immobilizer Schematics

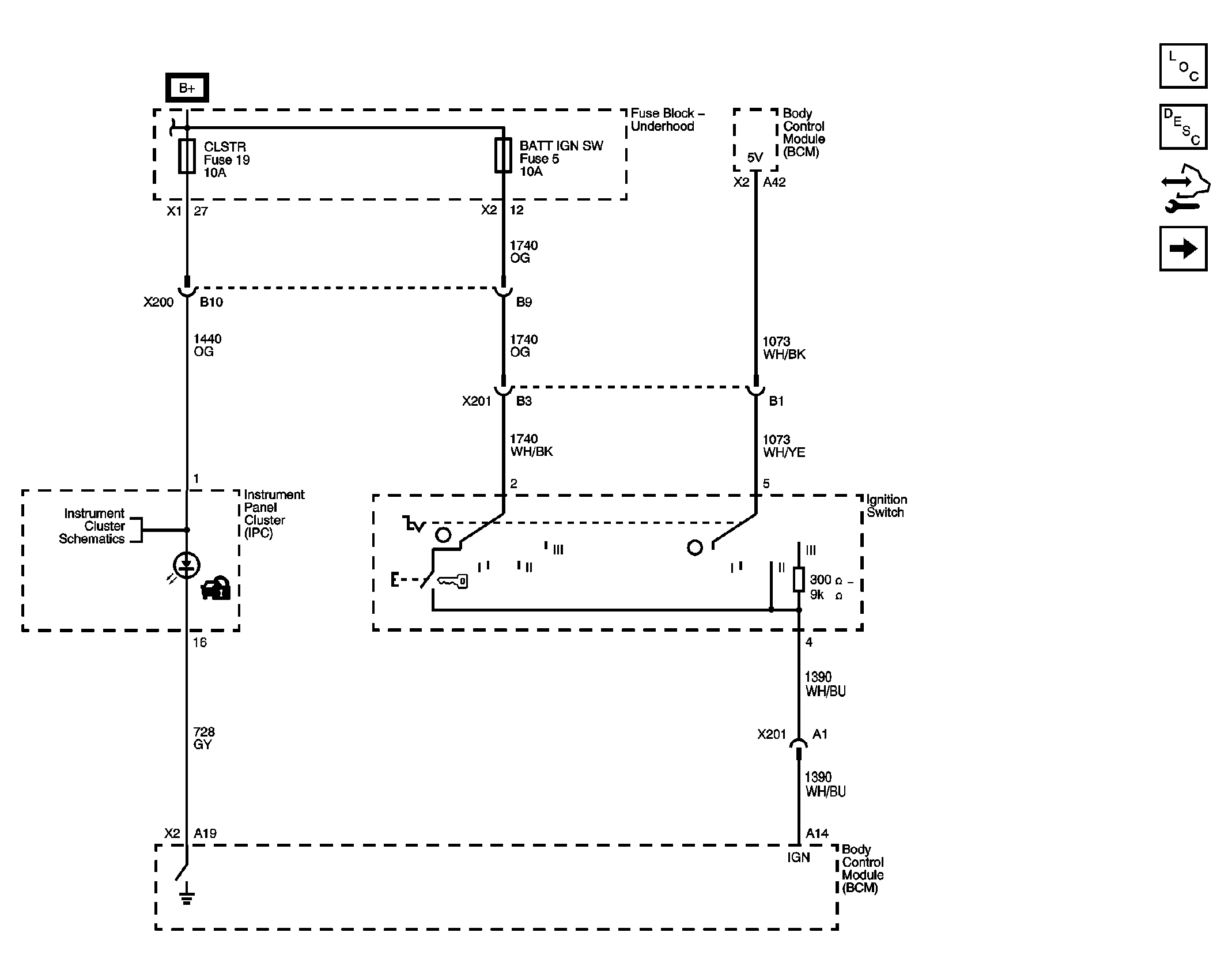

Fig 1: PassLock (without BAE)
Courtesy of GENERAL MOTORS CORP.

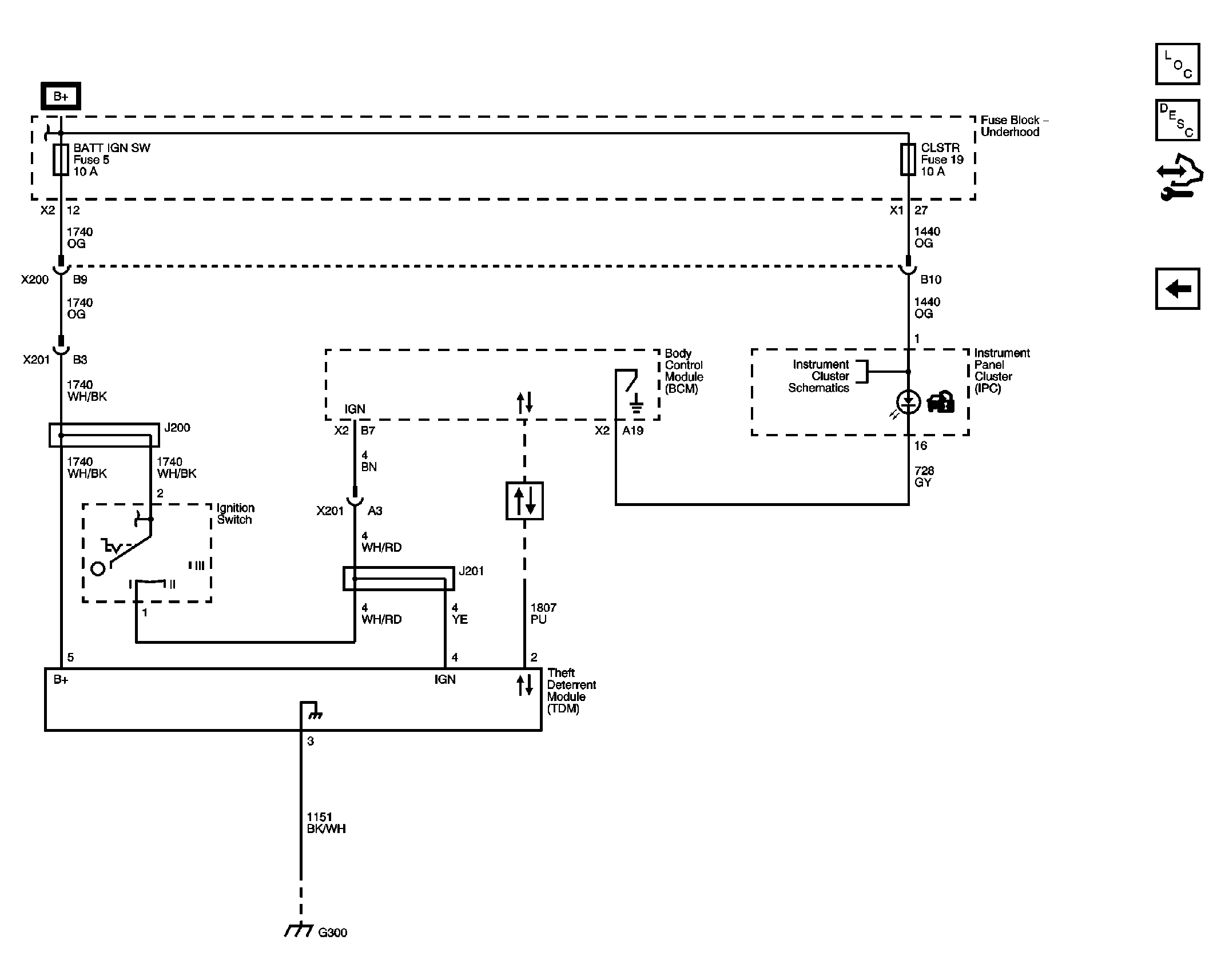

Fig 2: PASS-Key© III (BAE)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
