Knock Sensor Jumper Connector End View (Hummer H2)

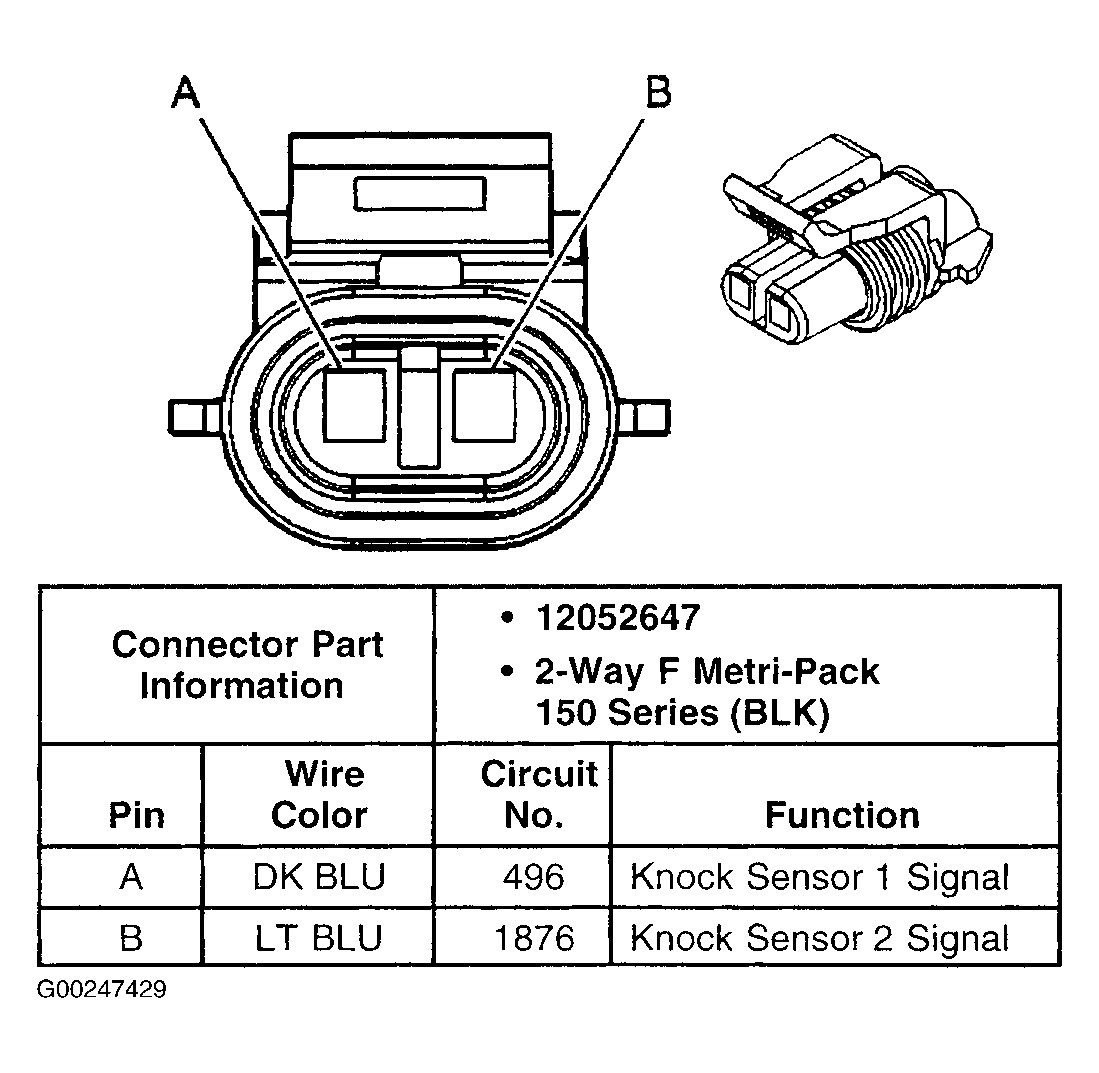

Fig 1: Knock Sensor Jumper Connector End View (Hummer H2)

G00247429

Courtesy of GENERAL MOTORS CORP.
