Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Radiator Hose & Radiator (Outlet)
    GM801112Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator outlet hose (3) to the radiator (1).
  2. Position the radiator outlet hose clamp (2) to the radiator (1).

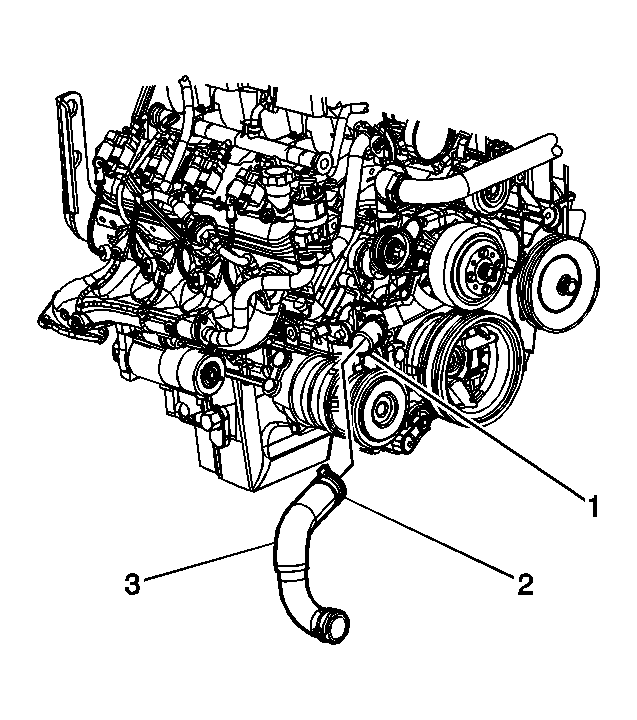

    3. Fig 2: Radiator Hose & Engine (Outlet)
    GM814575Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator outlet hose (3) to the engine (1).
  4. Position the radiator outlet hose clamp (2) to the engine (1).
  5. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement in Engine Controls - 4.8L, 5.3L and 6.0L.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .
