Bumper Replacement - Front: Notes

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

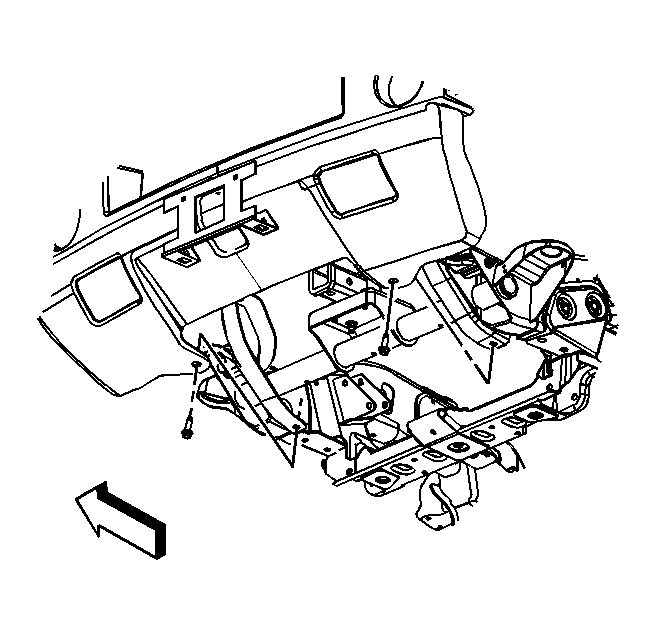

    Fig 1: Bumper Bar Bolts
    GM815434Courtesy of GENERAL MOTORS CORP.
  1. Remove the 2 lower bolts from the bumper bar.
  2. Remove the 2 plugs from the front fascia.
  3. Disconnect the electrical connector to the DRL lamps.

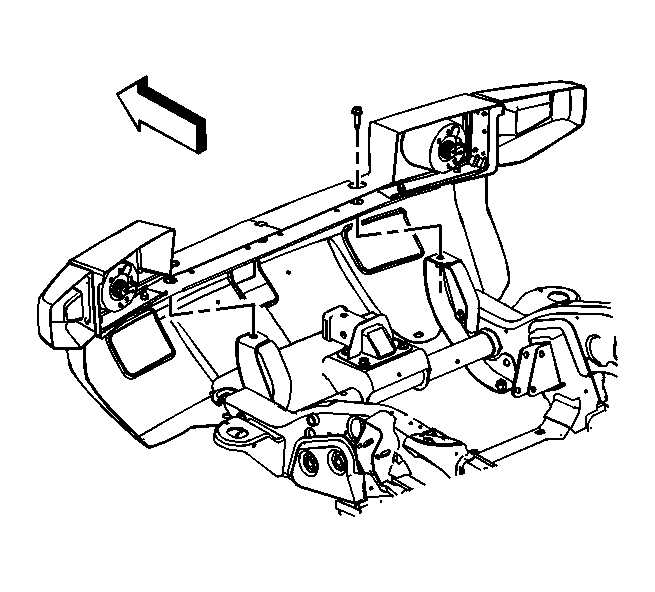

    4. Fig 2: Front Bumper Assembly
    GM815435Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 upper bolts from the bumper bar.
  5. Remove the front bumper assembly from the vehicle.
