Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do NOT remove an air supply pipe in an attempt to depressurize the air suspension. Always follow the Air Suspension Depressurization Procedure in Air Suspension. Failure to follow this procedure may cause personal injury or damage to the vehicle.
  1. Remove the compressor assembly from the vehicle and place on a bench. Refer to Compressor Assembly Automatic Level Control Air Replacement .

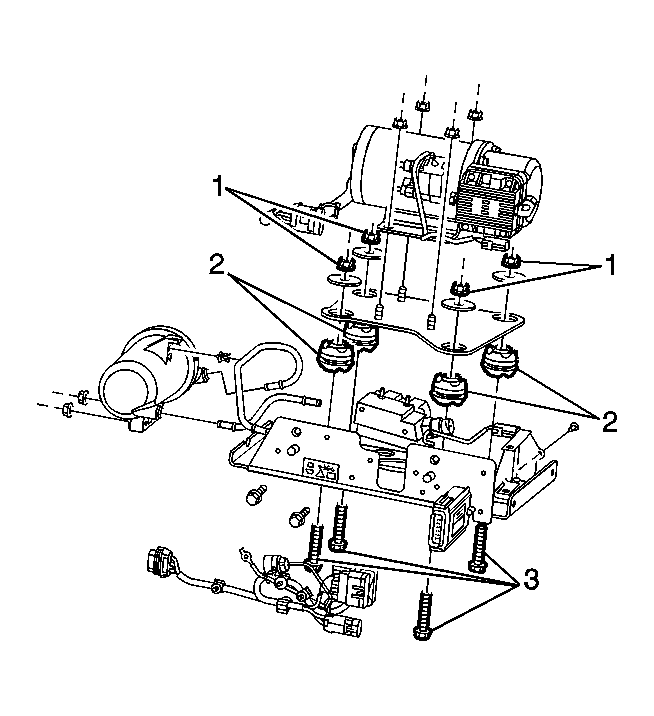

    2. Fig 1: Identifying Isolators
    GM1234299Courtesy of GENERAL MOTORS CORP.
  2. Remove the compressor. Refer to Compressor Automatic Level Control Replacement
  3. Remove the mounting nuts (1).
  4. Remove the mounting bolts (3).
  5. Remove the isolators (2).
