Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

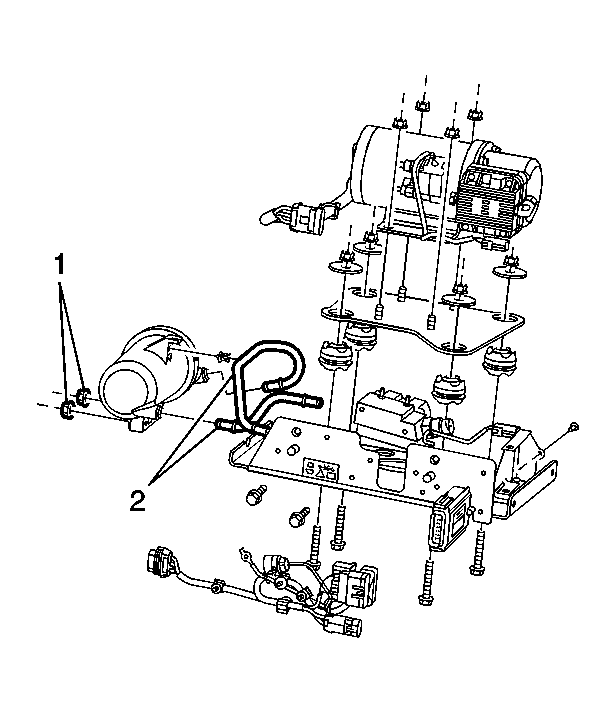

Fig 1: Dryer Assembly

Courtesy of GENERAL MOTORS CORP.

Install the dryer assembly (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the mounting nuts (1).
Tighten: Tighten the nuts to 12 N.m (106 lb in).
Install the air lines. Refer to Air Suspension Air Line Replacement .
Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level Control Air Replacement .
