Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

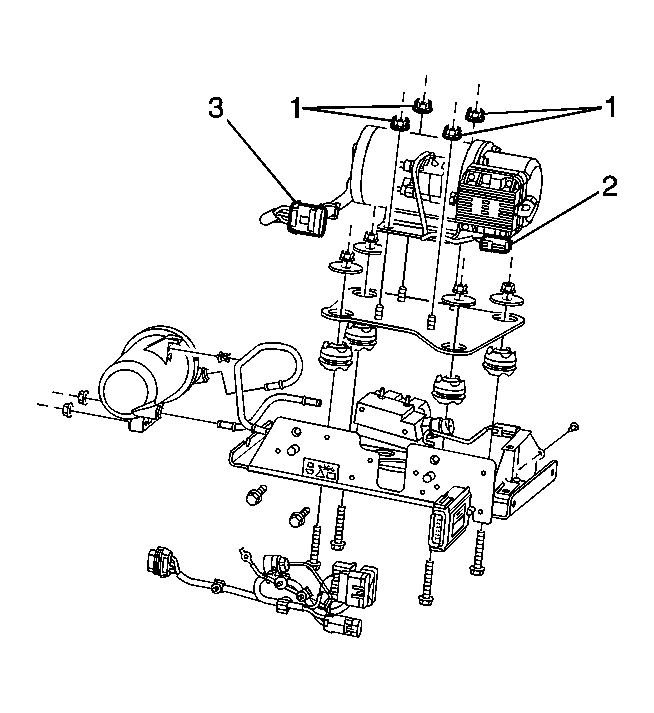

    Fig 1: View Of Compressor
    GM1234288Courtesy of GENERAL MOTORS CORP.
  1. Install the compressor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the mounting nuts (1).

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  3. Install connector (3) to the mounting bracket.
  4. Connect all electrical connections (2, 3).
  5. Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level Control Air Replacement .
