Suspension Controls Component Views

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

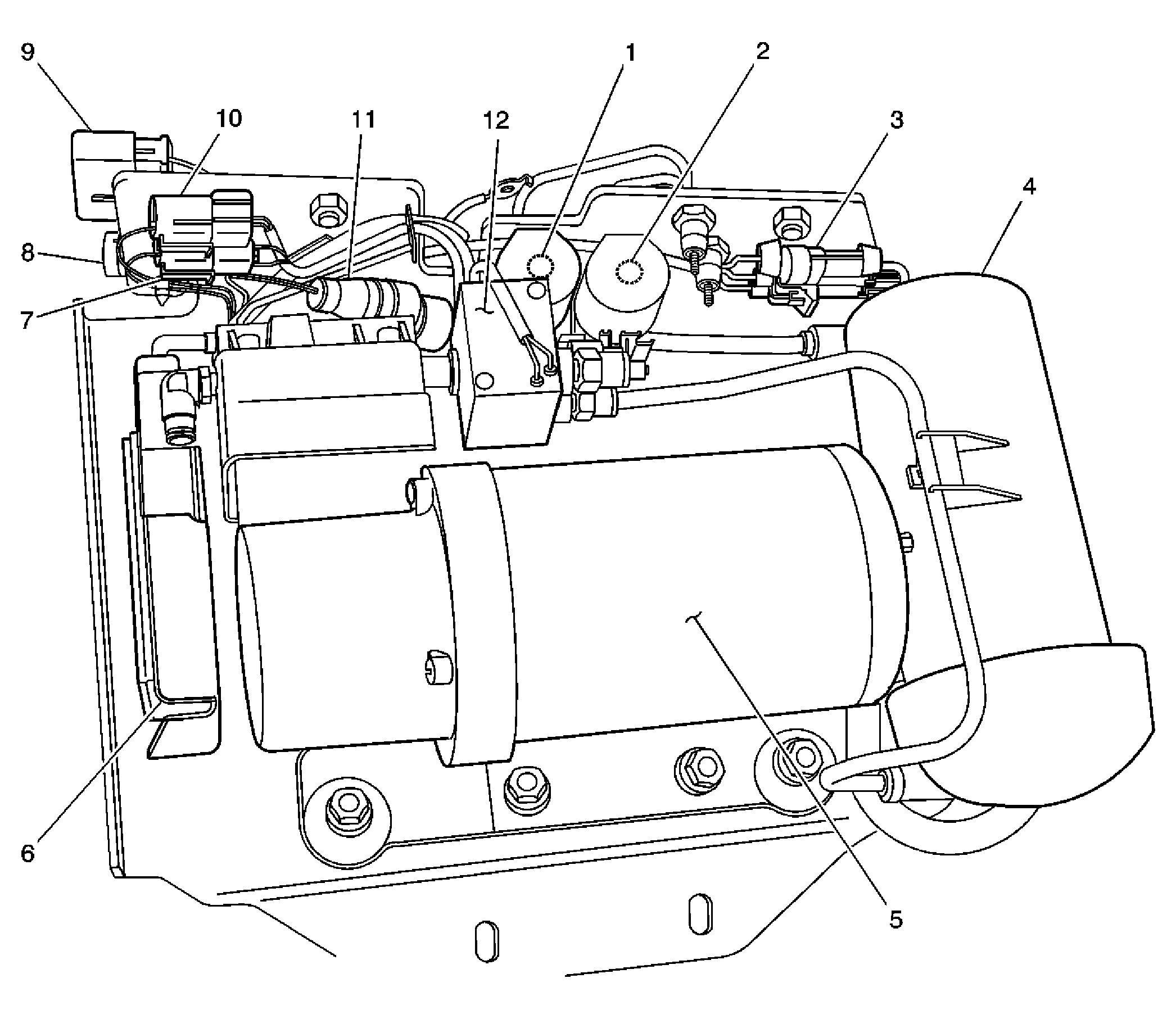

Fig 1: Air Suspension Sub-System Component Views (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Suspension Inlet Valve - LR
2	Air Suspension Inlet Valve - RR
3	Compressor Connector
4	Air Suspension Air Dryer
5	Air Suspension Compressor
6	Air Suspension Module
7	Air Suspension Exhaust Valve Connector
8	C450
9	C451
10	Air Suspension Inlet Valve Connector - LR/RR
11	Air Suspension Pressure Sensor
12	Air Suspension Exhaust Valve

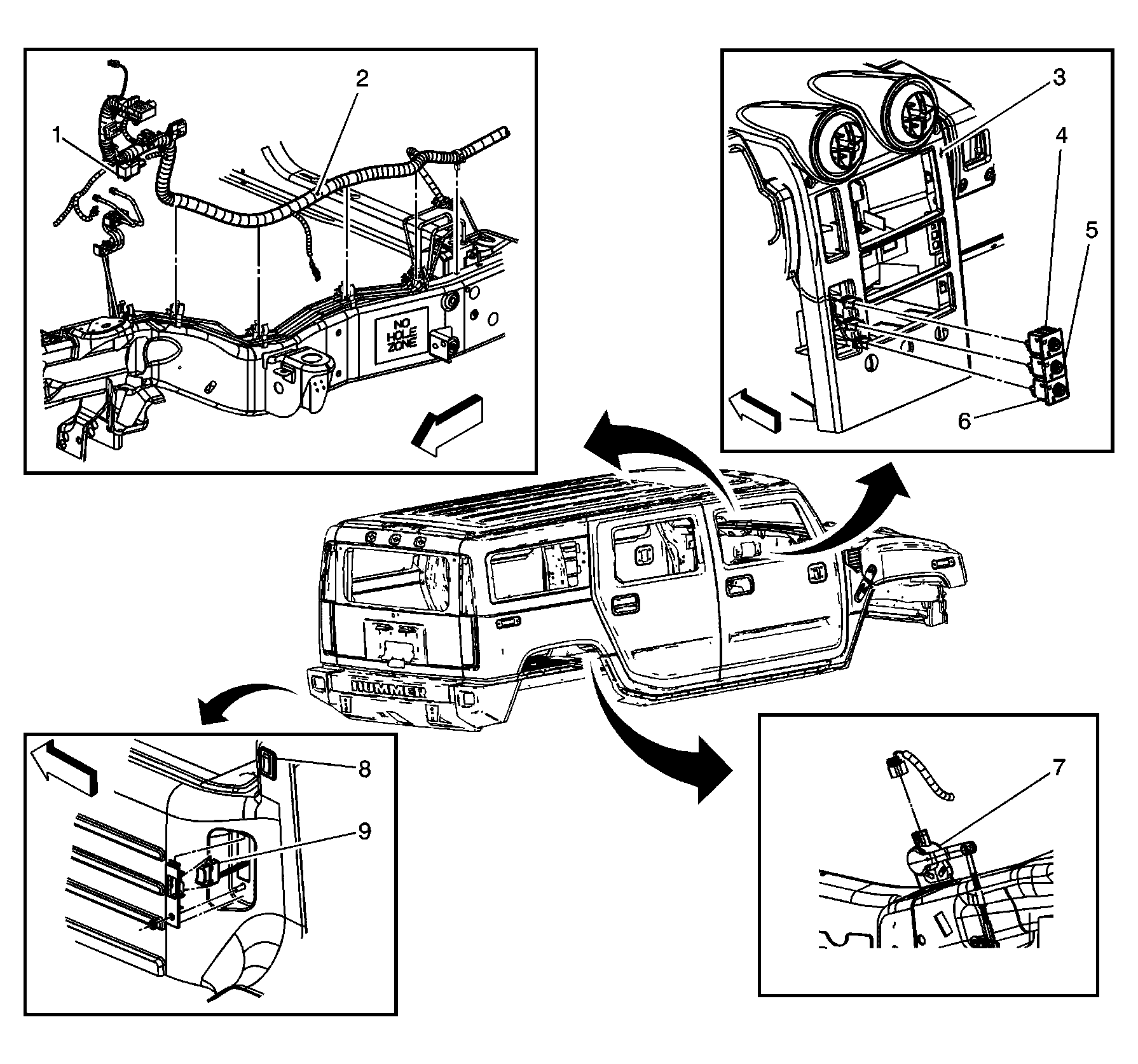

Fig 2: Air Suspension Sub-System Component Views (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronically Controlled Air Suspension Relay
2	Chassis Harness
3	I/P Compartment
4	Traction Control Switch
5	Tow/Haul Switch
6	Ride Height Switch
7	Air Suspension Sensor - LR
8	Door Lock Switch - Rear
9	Air Suspension Inflator Switch

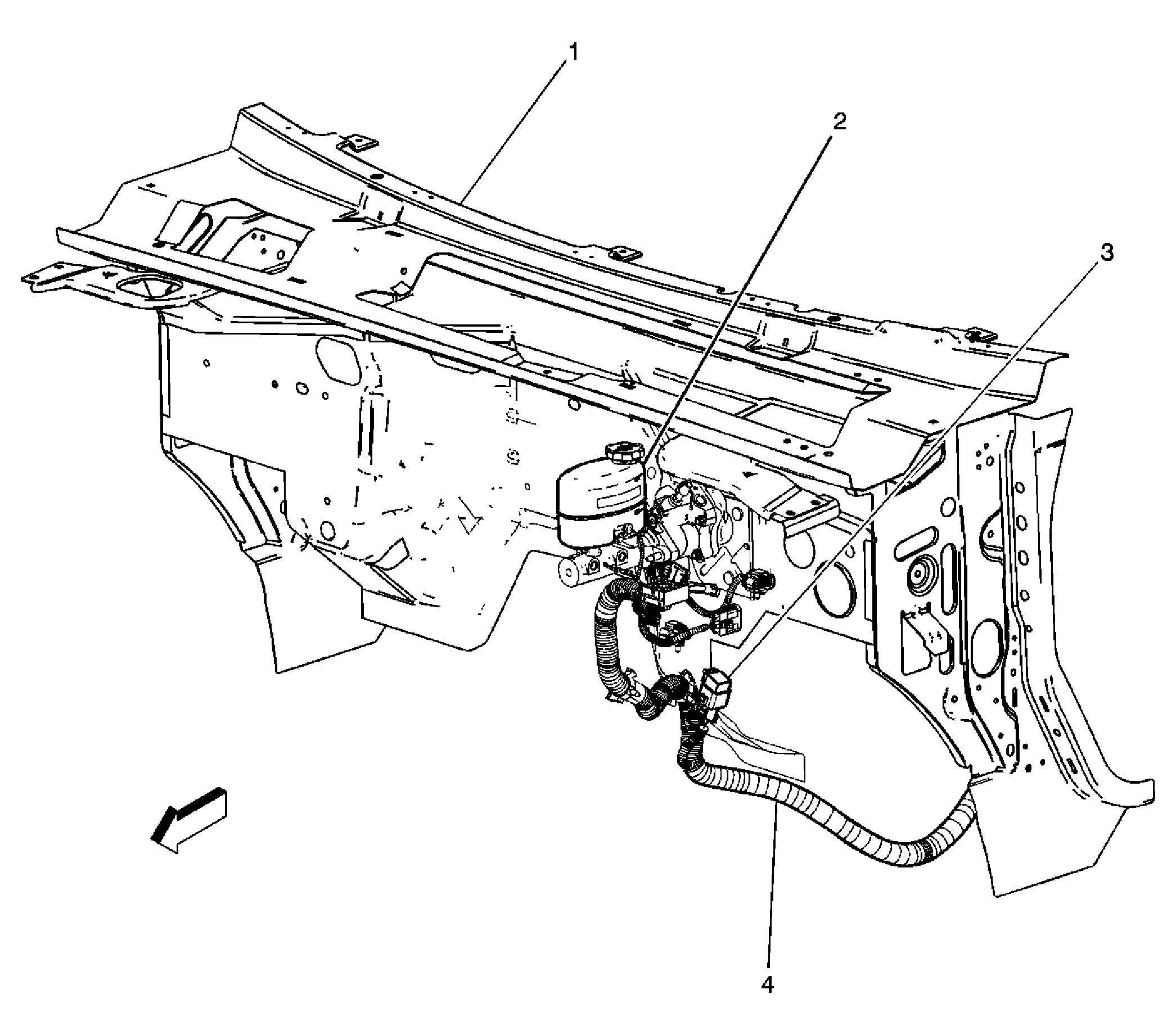

Fig 3: LR Of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash - Upper Plenum
2	Master Cylinder
3	Electronically Controlled Air Suspension Relay
4	Chassis Harness
