Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

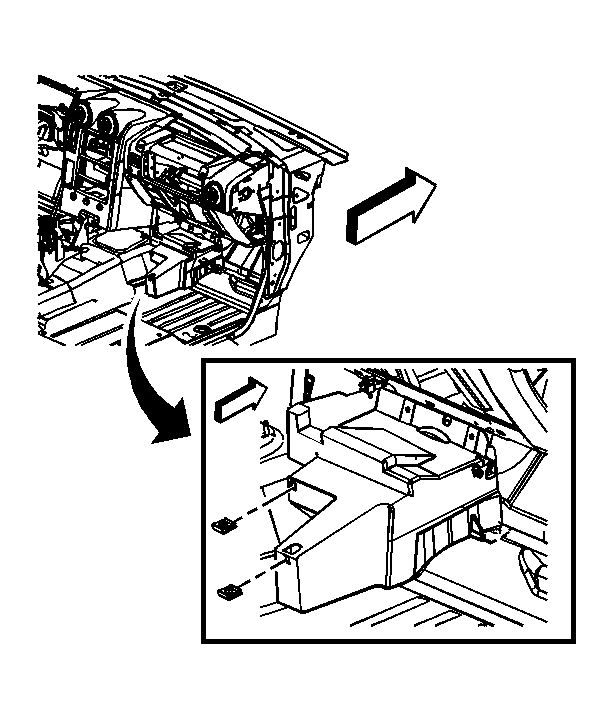

    Fig 1: Front Speaker Assembly Retainer Clips
    GM832844Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: Do not exceed torque specification over tightening of the screws will result in the stud breaking from the front floor console.
  1. Install the retainer clips to the speaker housing.

    Tighten:  Tighten the screws to 9 N.m (80 lb in).

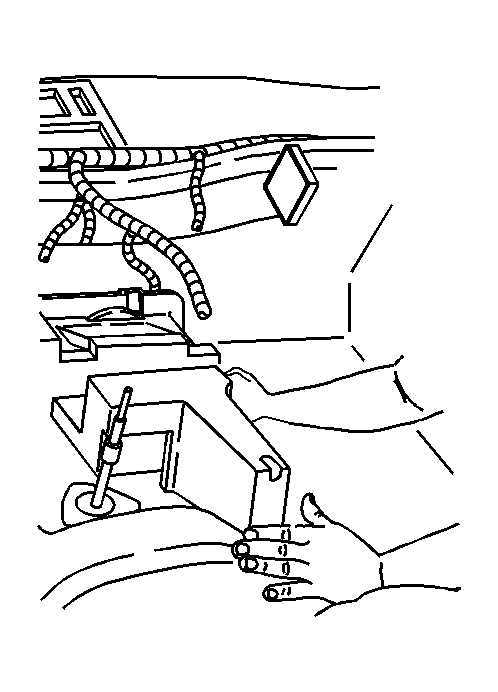

    2. Fig 2: Front Speaker Assembly & I/P Carrier
    GM815825Courtesy of GENERAL MOTORS CORP.
  2. Install the front speaker assembly woofer to the I/P carrier.
  3. Install the fasteners.

    Tighten:  Tighten the screws 9 N.m (80 lb in).

  4. Install the exterior trim panel. Refer to Instrument Panel (I/P) Extension Trim Plate Replacement in Instrument Panel, Gauges, and Console.
  5. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gauges, and Console.
