Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

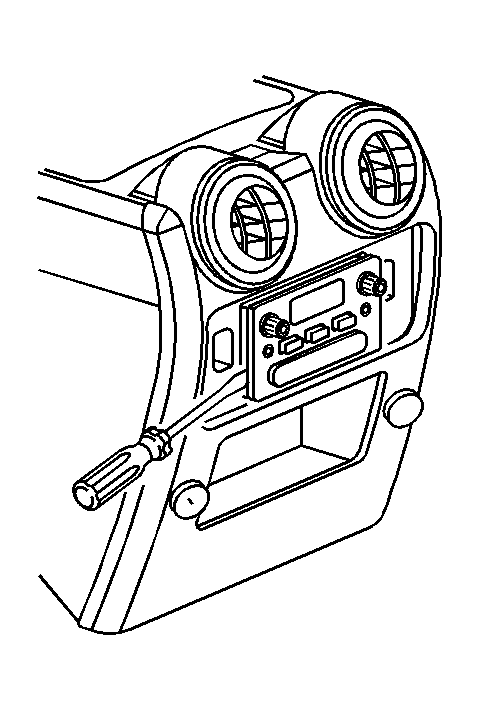

    Fig 1: Disengaging Retainer
    GM862031Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear seat audio controls. Pry gently with a flat bladed tool to disengage the retainer.
    2. Fig 2: Electrical Connectors & Rear Seat Audio Controls
    GM862037Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the rear seat audio controls.
