Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

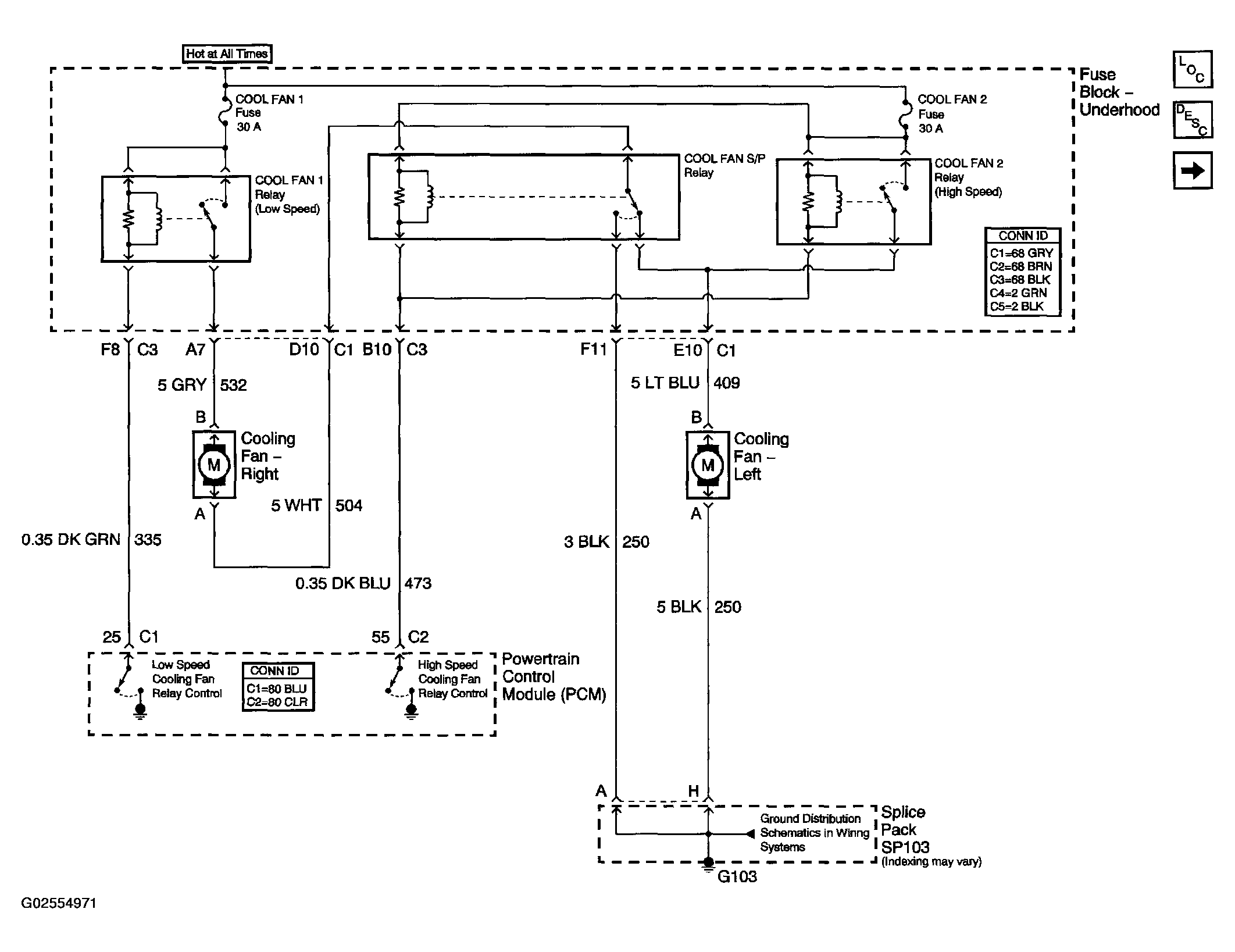

Fig 1: Cooling Fans And Relays
G02554971Courtesy of GENERAL MOTORS CORP.

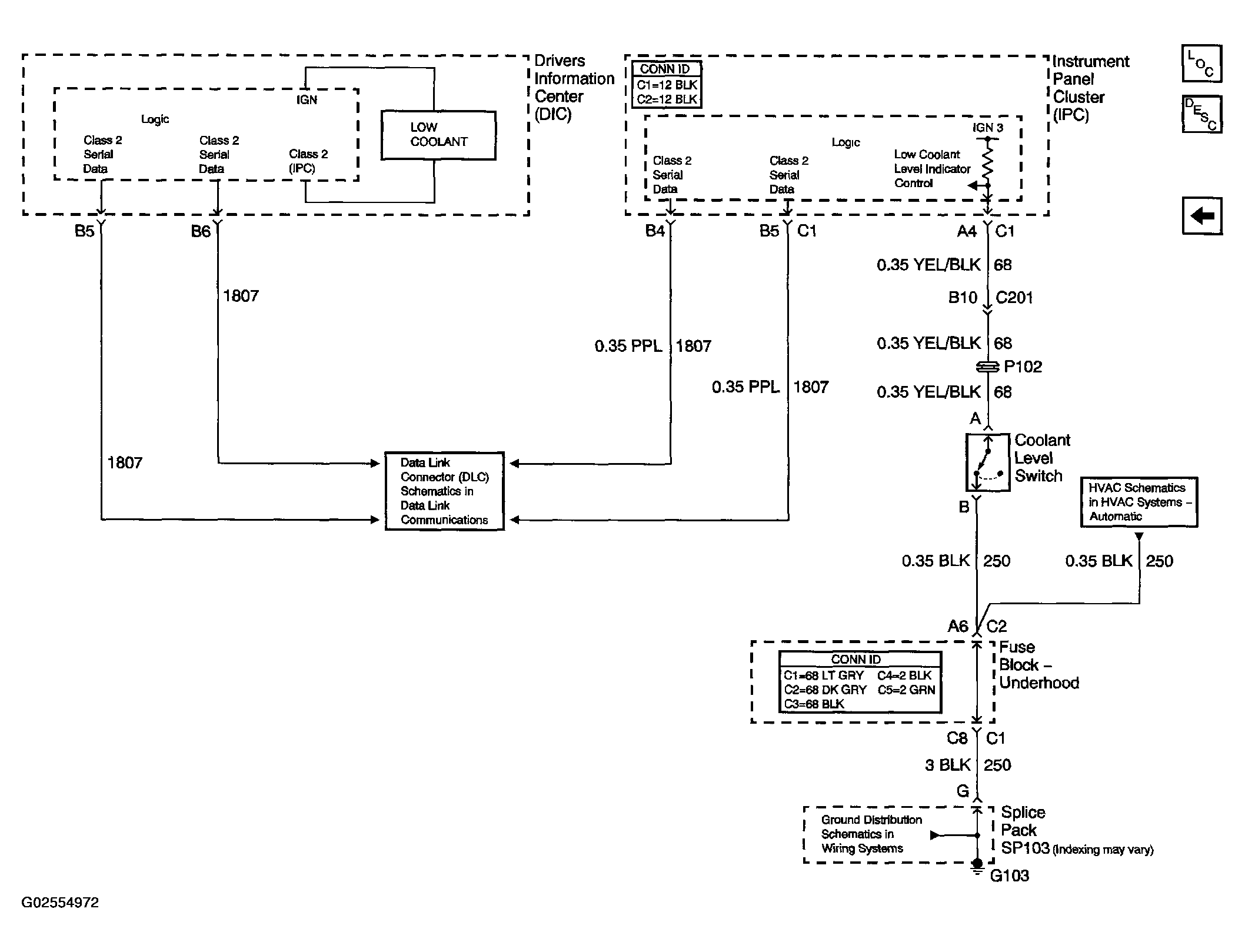

Fig 2: Coolant Level Switch
G02554972Courtesy of GENERAL MOTORS CORP.
