Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine lift bracket to the cylinder head.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine lift bracket retaining bolts.

    Tighten

    Tighten the engine lift bracket retaining bolts to 47 N.m (35 lb ft).

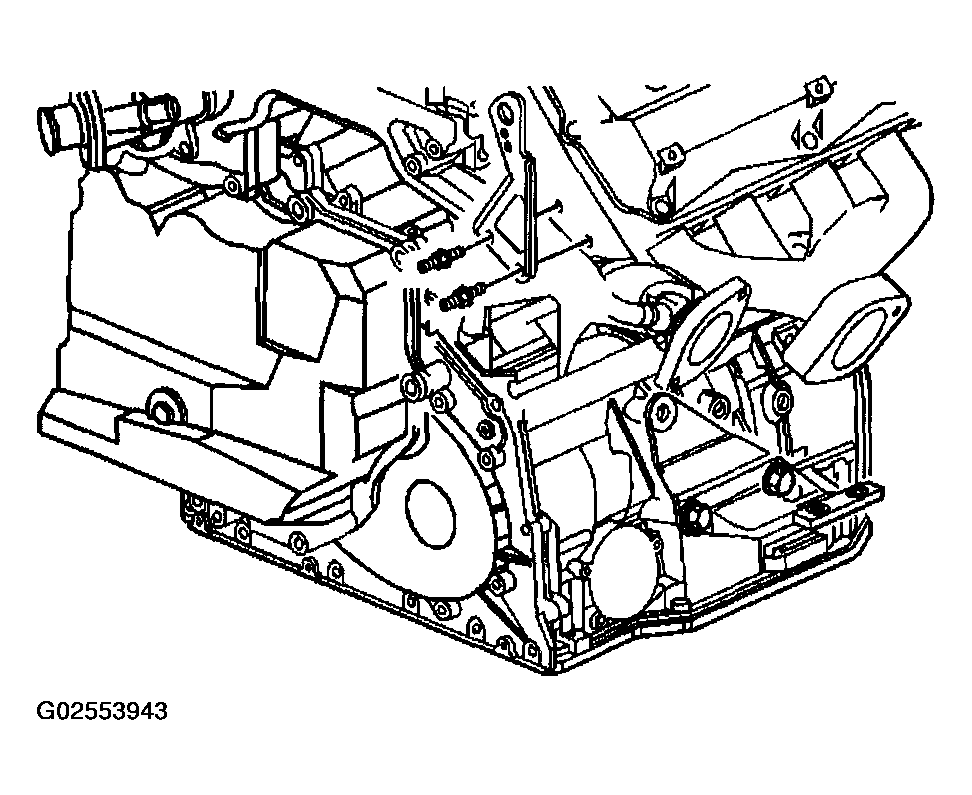

    Fig 1: Installing Engine Lift Bracket
    G02553943Courtesy of GENERAL MOTORS CORP.
  3. Position the rear transaxle brace (1) to the cylinder head.
  4. Loosely install the nuts (3) securing the rear transaxle brace (1) to the cylinder head.

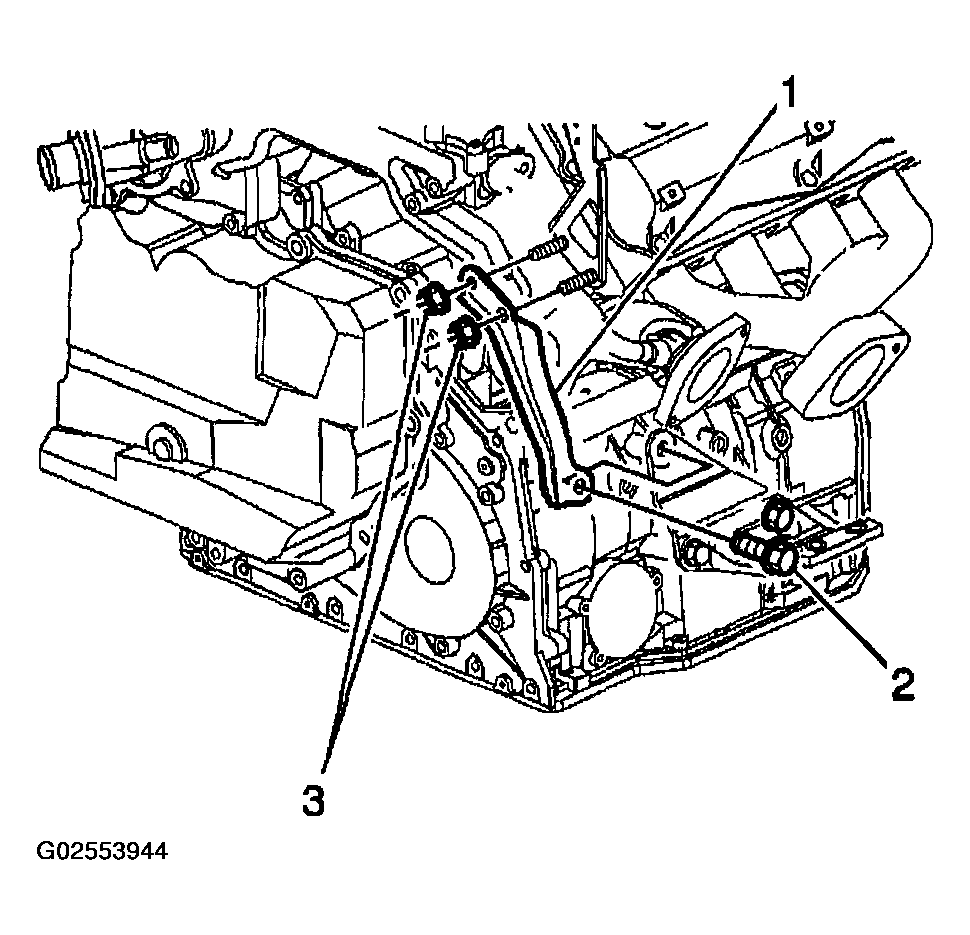

    Fig 2: Installing Nuts And Bolts Securing Rear Transaxle Brace To Cylinder Head
    G02553944Courtesy of GENERAL MOTORS CORP.
  5. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  6. Install the bolt (2) securing the rear transaxle brace (1) to the transaxle.

    Tighten

    Tighten the rear transaxle brace bolt to 50 N.m (37 lb ft).

  7. Lower the vehicle.
  8. Tighten the nuts (3) securing the rear transaxle brace (1) to the cylinder head.

    Tighten

    Tighten the rear transaxle brace nuts to 50 N.m (37 lb ft).
