Section 352 (HVAC Systems - Automatic)
>>
Component Locator
>>
HVAC Connector End Views
HVAC Connector End Views
WARNING:
This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying A/C Compressor Clutch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

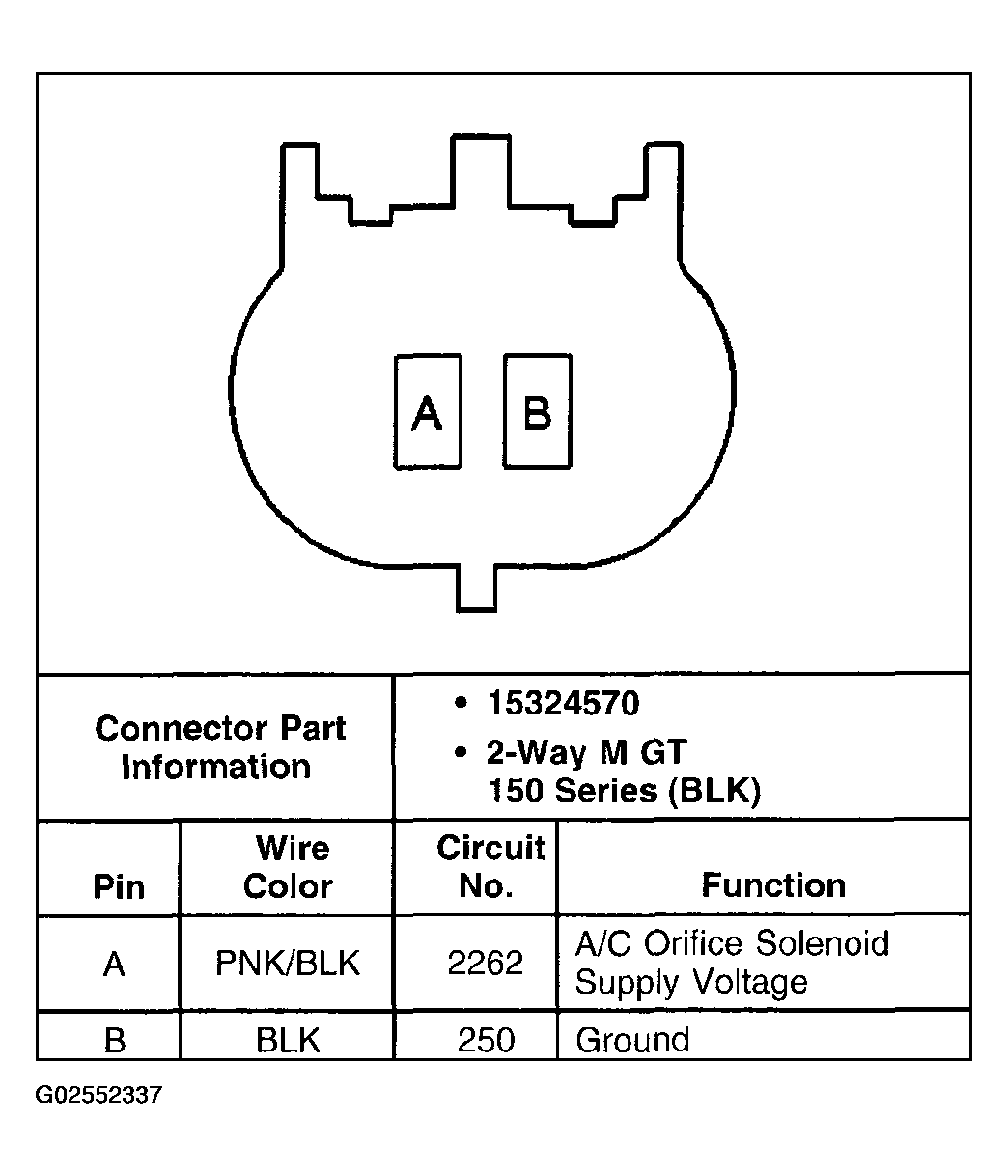

Fig 2: Identifying A/C Orifice Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying A/C Refrigerant Low Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

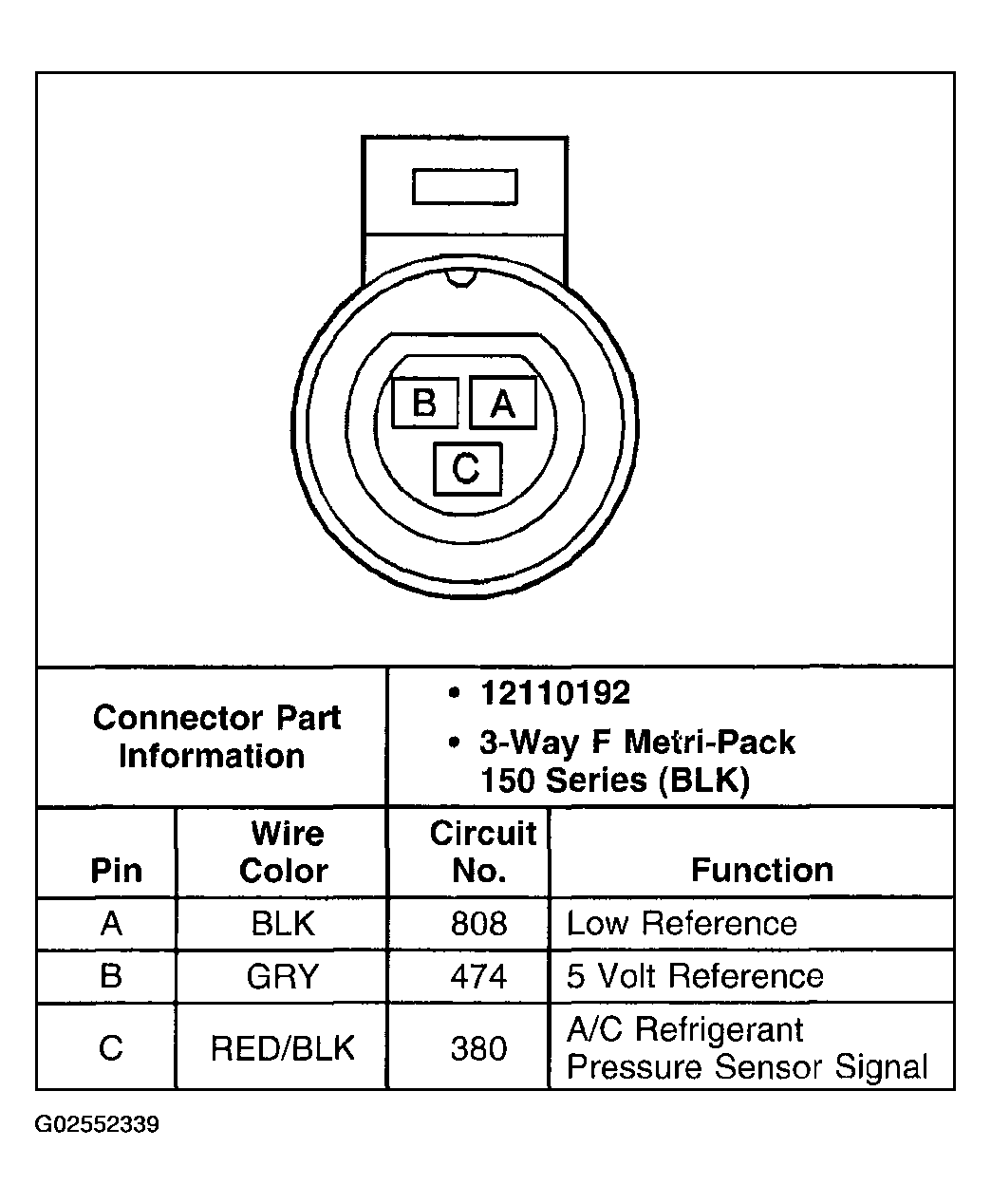

Fig 4: Identifying A/C Refrigerant Pressure Sensor (W/LX5) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

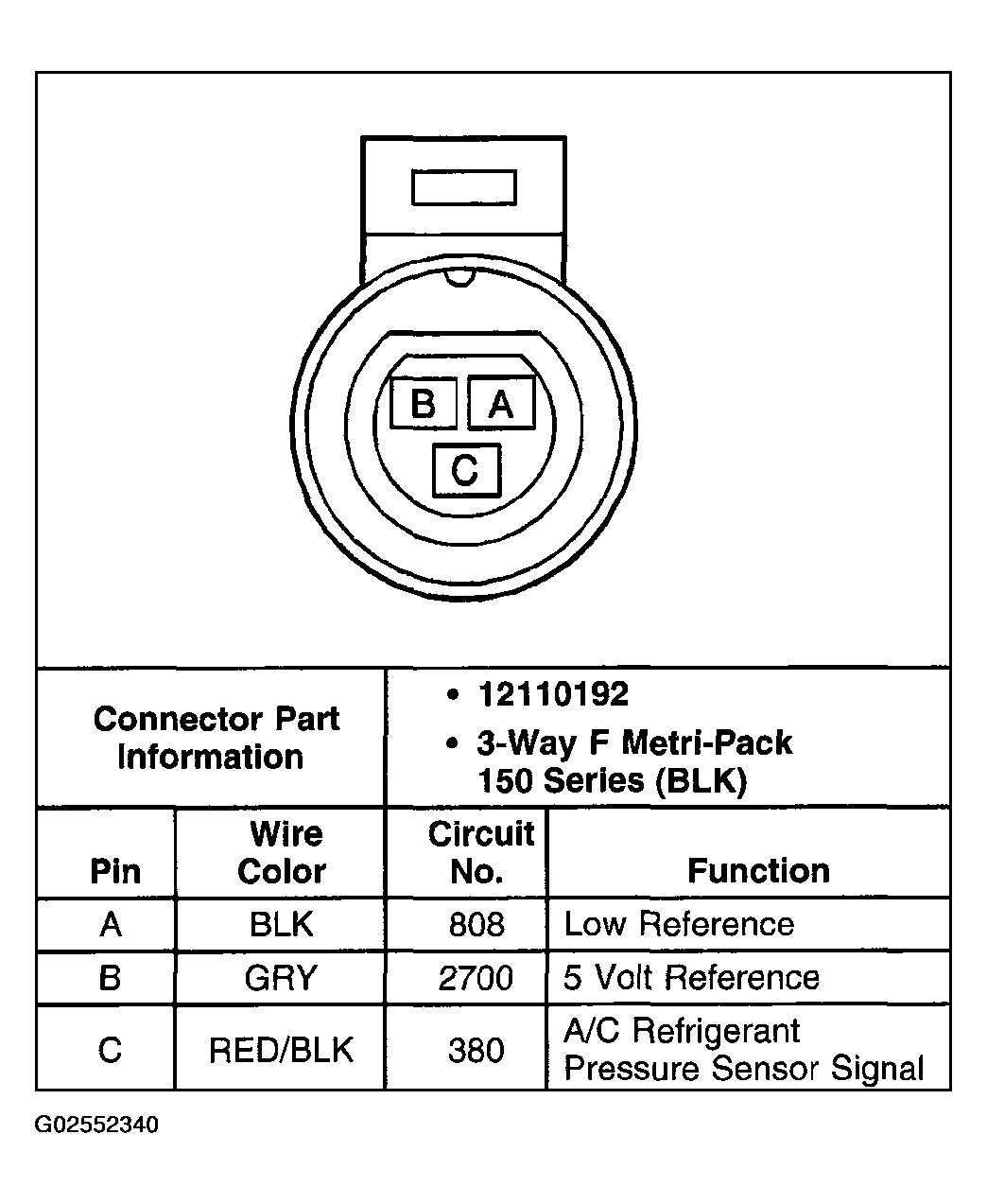

Fig 5: Identifying A/C Refrigerant Pressure Sensor (W/L47) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Left Air Temperature Actuator Connector Terminals
Courtesy of GENERAL MOTORS CORP.

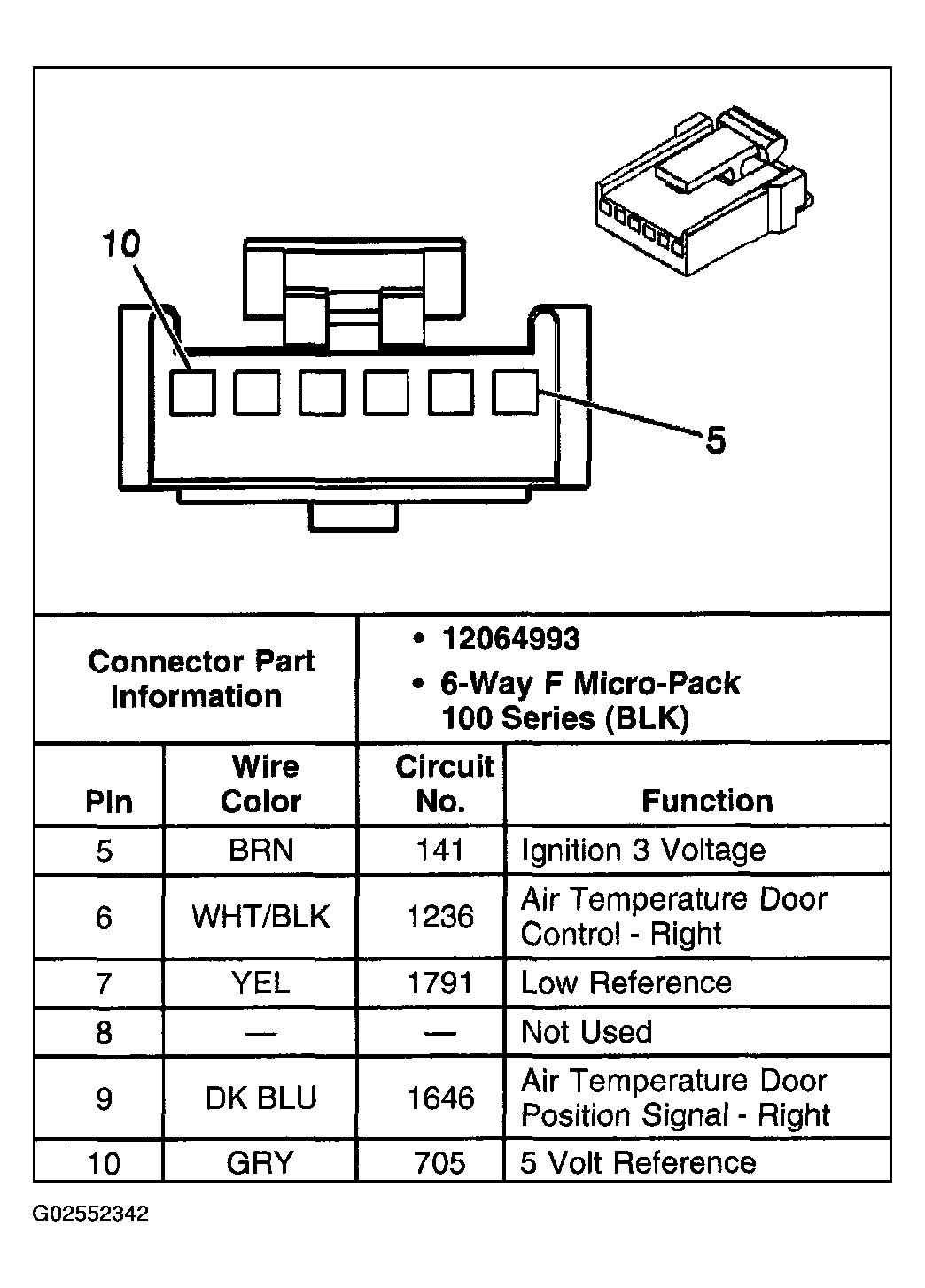

Fig 7: Identifying Right Air Temperature Actuator Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Inside Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Lower Right Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Lower Left Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Ambient Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Upper Left Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

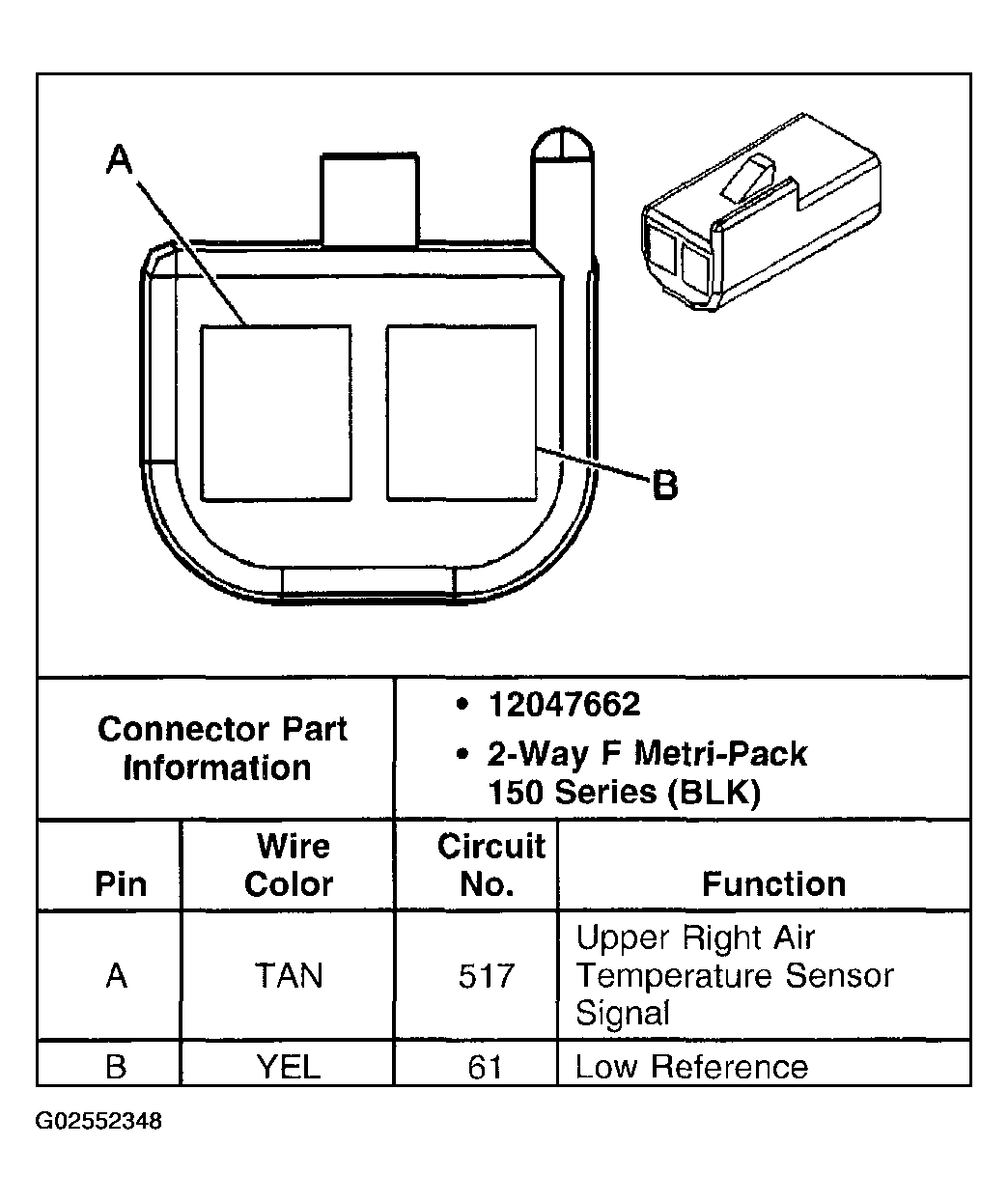

Fig 13: Identifying Upper Right Air Temperature Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Right Air Temperature Switch Assembly Connector Terminals
Courtesy of GENERAL MOTORS CORP.

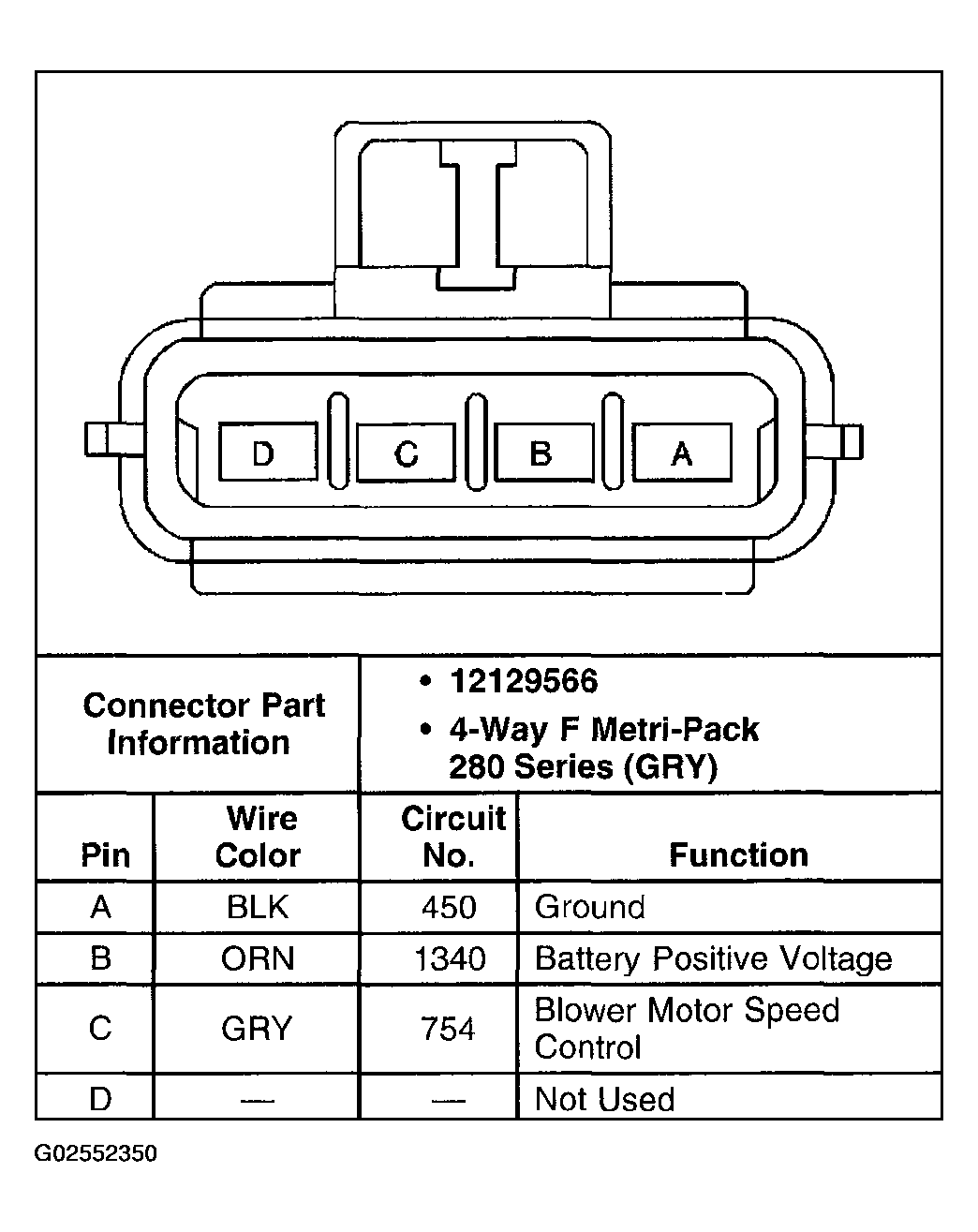

Fig 15: Identifying Blower Motor Control Processor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

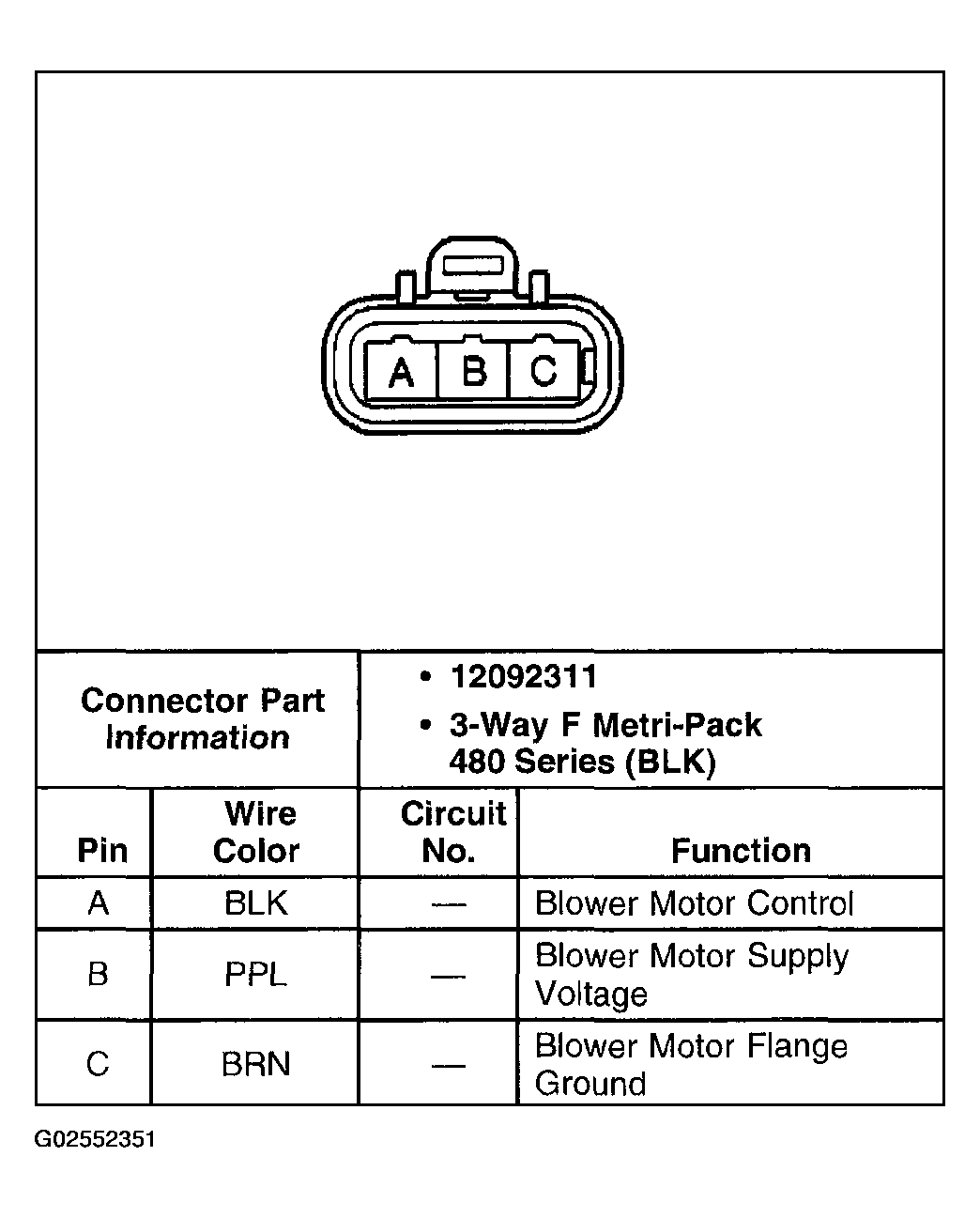

Fig 16: Identifying Blower Motor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying HVAC Control Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Mode Actuator Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Recirculation Actuator Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Sunload Sensor Assembly Connector Terminals
Courtesy of GENERAL MOTORS CORP.
