Heated Seats Schematics

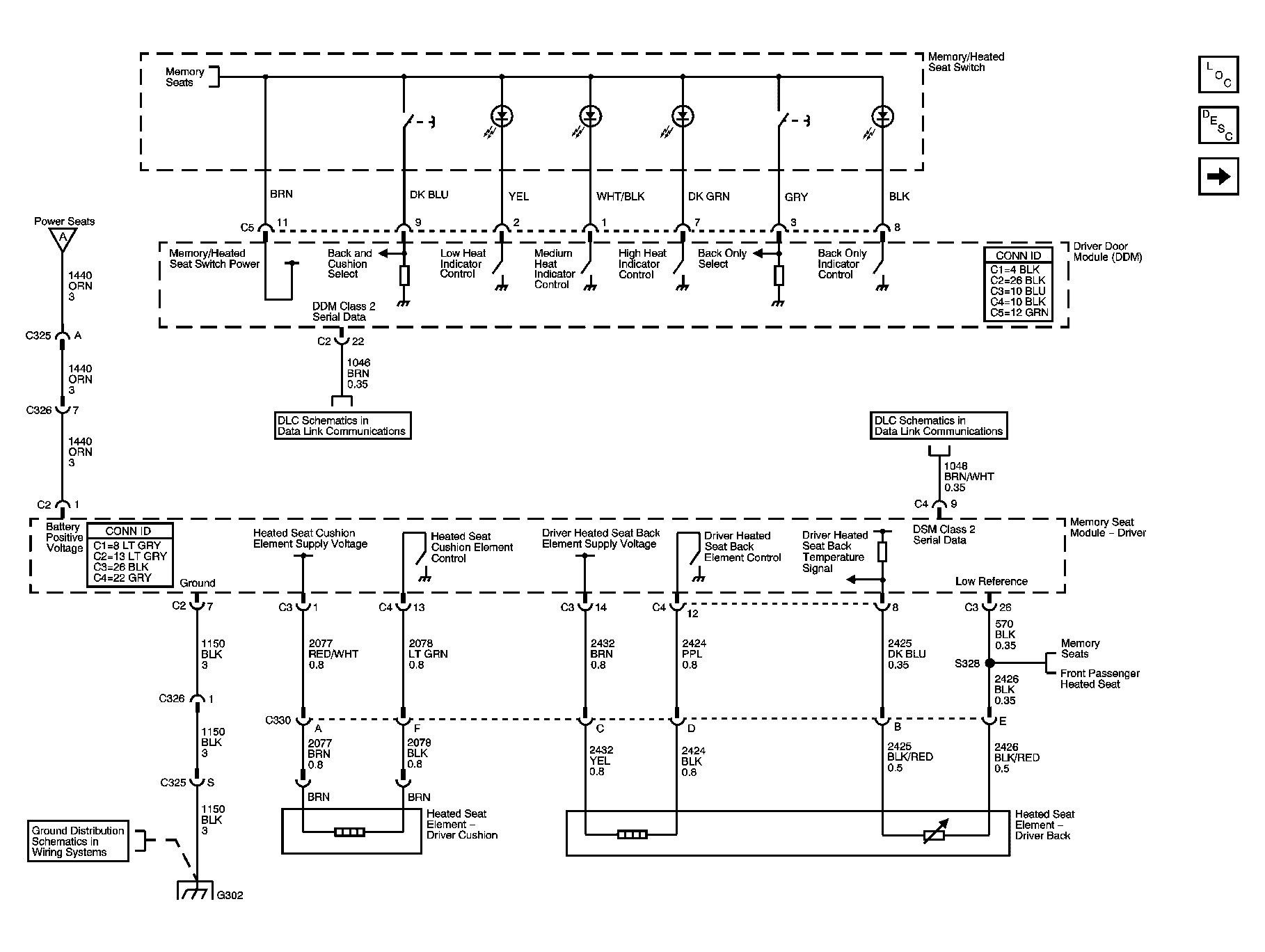

Fig 1: Driver Heated Seat Schematic
GM839893Courtesy of GENERAL MOTORS CORP.

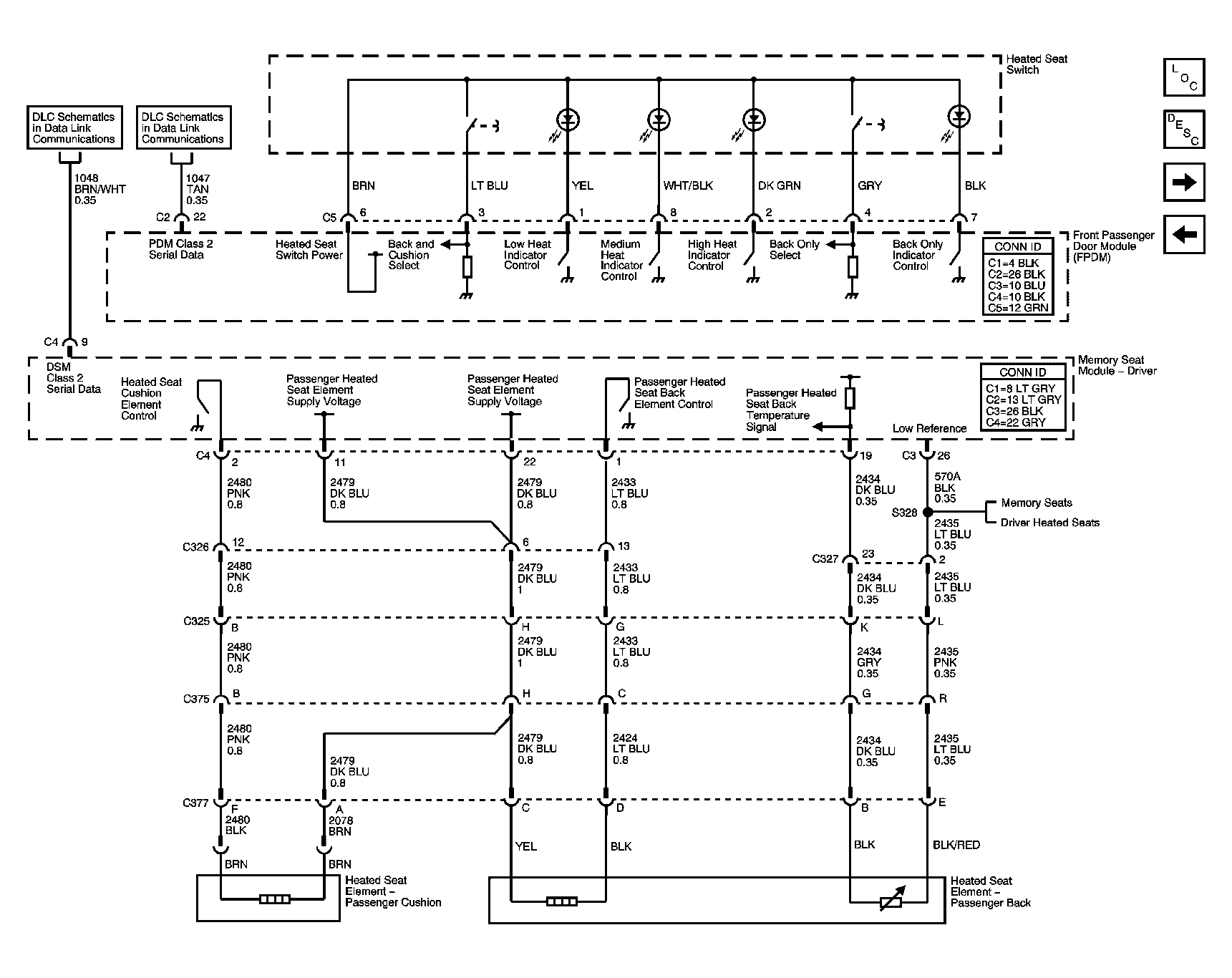

Fig 2: Front Passenger Heated Seat Schematic
GM839895Courtesy of GENERAL MOTORS CORP.

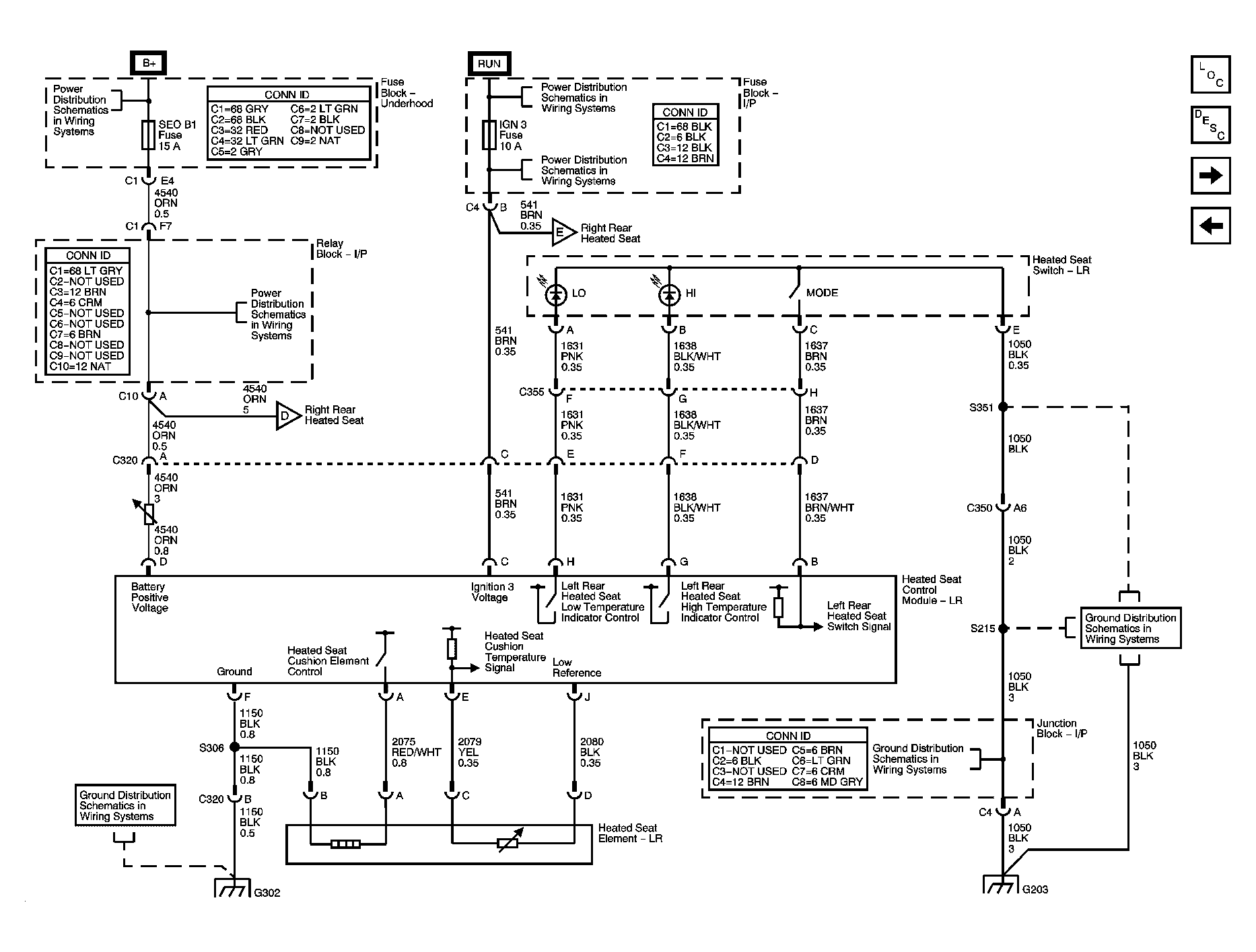

Fig 3: Left Rear Heated Seat Schematic
GM839896Courtesy of GENERAL MOTORS CORP.

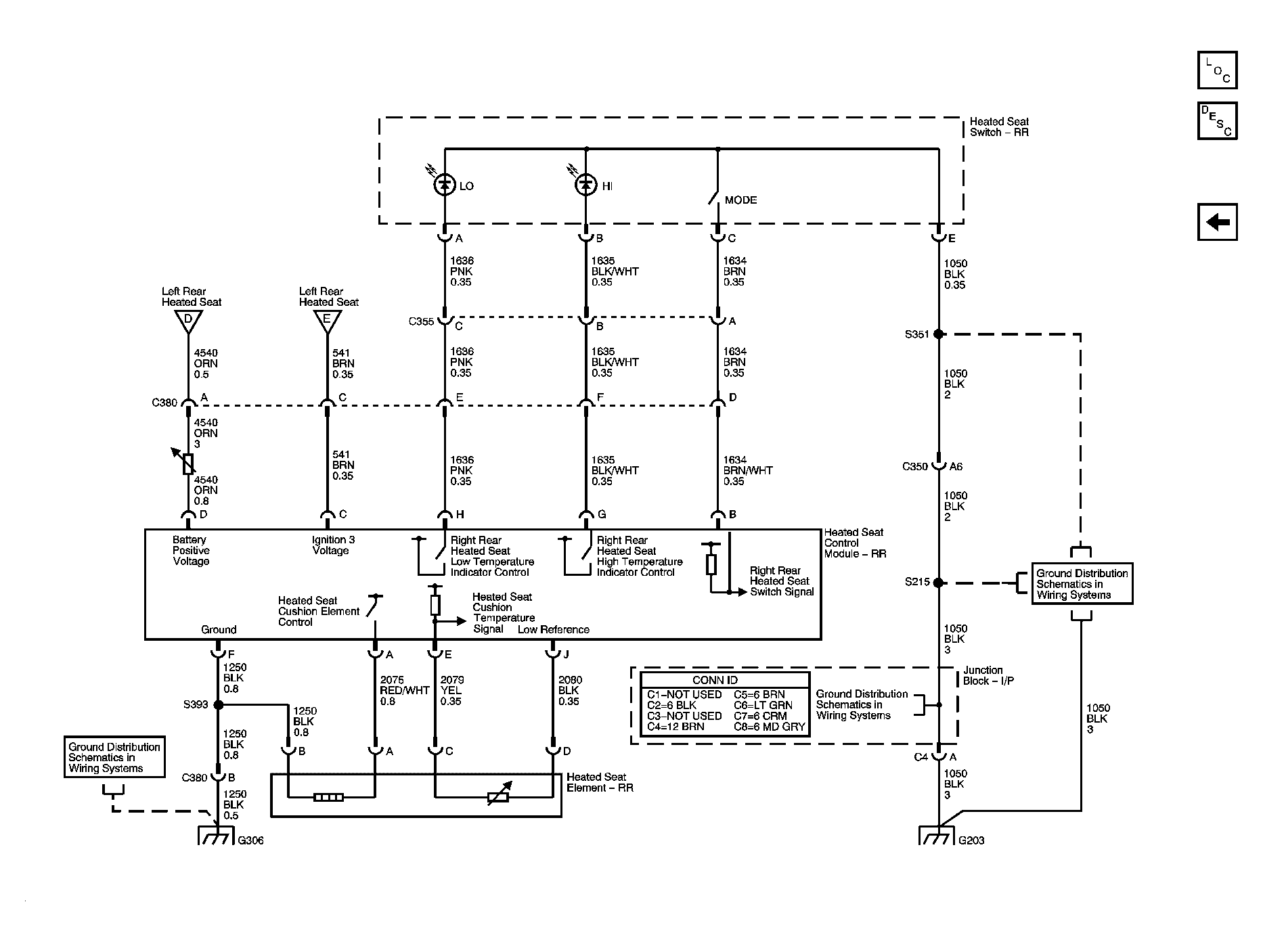

Fig 4: Right Rear Heated Seat Schematic
GM839897Courtesy of GENERAL MOTORS CORP.
