Installation Procedure

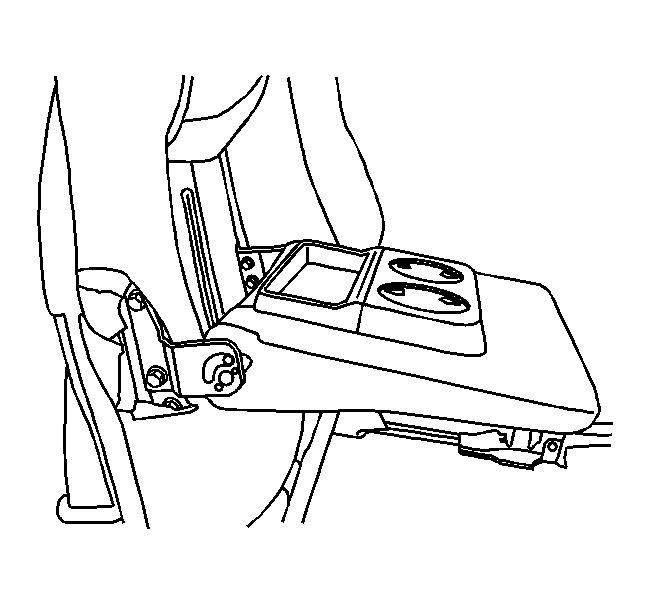

Fig 1: Rear Seat Armrest

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the center armrest to the seat frame.
Install the bolts to the center armrest.
Tighten: Tighten the bolt to 9 N.m (80 lb in).
