Engine Compartment (2/2)

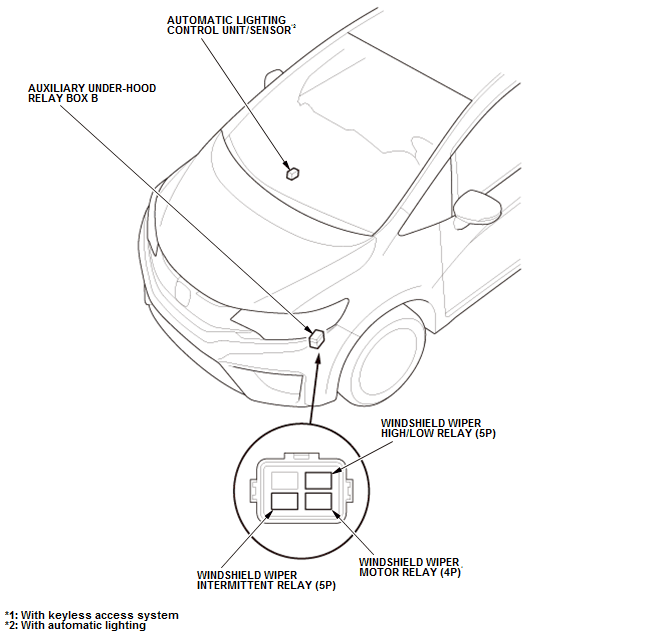

Engine Compartment (2/2) Location

GHH80103

Courtesy of HONDA, U.S.A., INC.
