Relay Box Locations And Control Unit Locations
>>
Relay and Control Unit Locations
>>

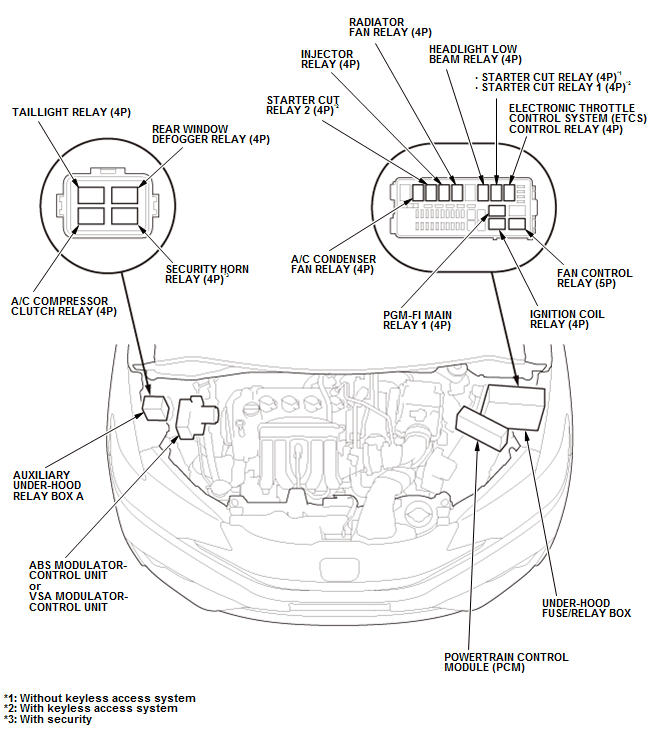

Engine Compartment (1/2)
Engine Compartment (1/2)
Engine Compartment (1/2) Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
