Engine Oil Jet Replacement: Replacement

  1. Crankshaft - Remove

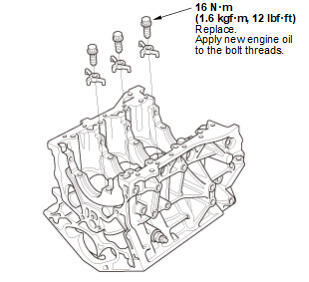

  2. Oil Jet and Oil Jet Bolt - Remove
    GHH558693Courtesy of HONDA, U.S.A., INC.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
