O2 Sensor Bracket Rattle (16-037)

Publication date: 2016-05-25
Reference number: 16-037

O2 SENSOR BRACKET RATTLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 16-037, Date of Issue: May 25, 2016

HONDA:

2016 HR-V

Year	Model	Trim	VIN Range
2016	HR-V	2WD only	ALL

At low speeds and light acceleration there is a rattle from the O2 sensor bracket.

The O2 sensor bracket may not have the correct bend, allowing the harness to rattle.

Replace the O2 sensor bracket.

Part Name	Part Number	Quantity
Oxygen Sensor Bracket	36537-51M-A00	1

The normal warranty applies.

Operation Number	Description	Flat Rate Time	Defect Code	Symptom Code	Template ID	Failed Part Number
1191B1	Replace the O2 sensor bracket.	0.3 hr	07403	04201	16-037A	36537-51M-A00

Skill Level: Repair Technician

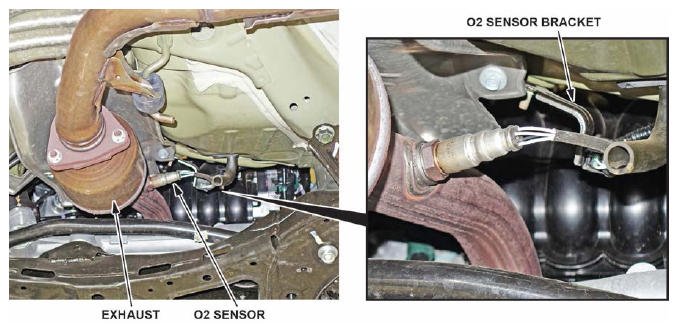

Remove the O2 sensor bracket and release the harness.

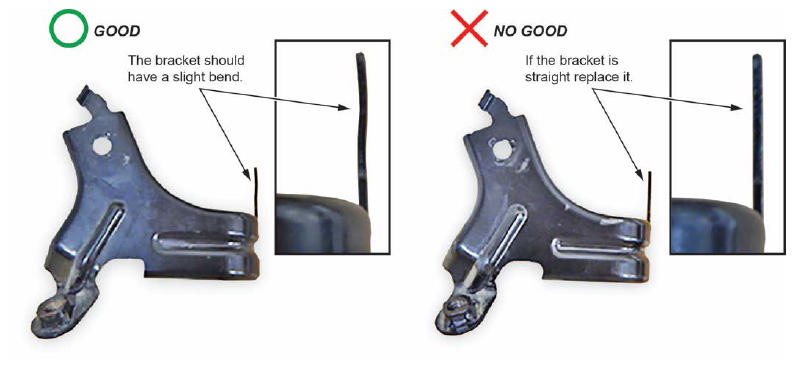

Inspect the bracket.
- If the bracket has a slight bend as shown, the bracket is good. Continue with normal troubleshooting.
- If the bracket has no bend, replace the bracket.
Install the new bracket and torque the nut to 9.4 N.m (6.9 lb-ft) , Then install the harness to the bracket.
END
