Section 73 (Immobilizer System)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

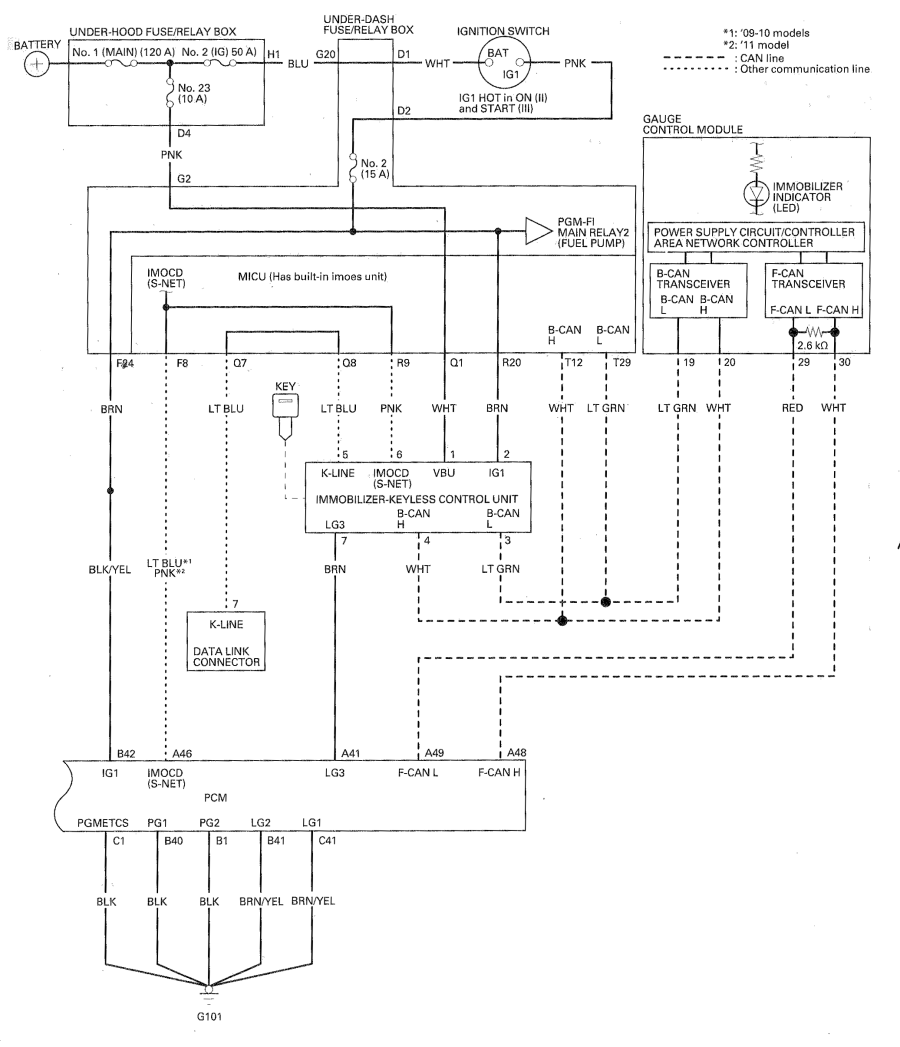

Fig 1: Identifying Immobilizer Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
