Brake Pedal Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pedal position switch connector (A).

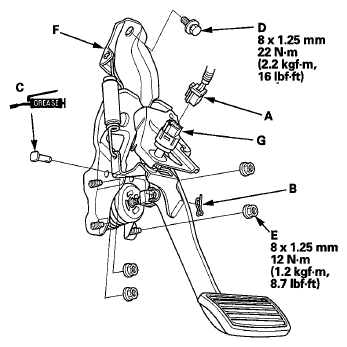

    Fig 1: Brake Pedal Position Switch Connector, Lock Pin, Clevis Pin, Brake Pedal Bracket Mounting Bolt & Nuts With Torque Specifications
    G05962924Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the lock pin (B) and the clevis pin (C).
  3. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  4. Remove the brake pedal with bracket (F).
  5. Remove the brake pedal position switch (G) by turning it counterclockwise.
  6. Install in the reverse order of removal.
  7. Adjust the brake pedal and the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
